26
WEISS GmbH 03/2002

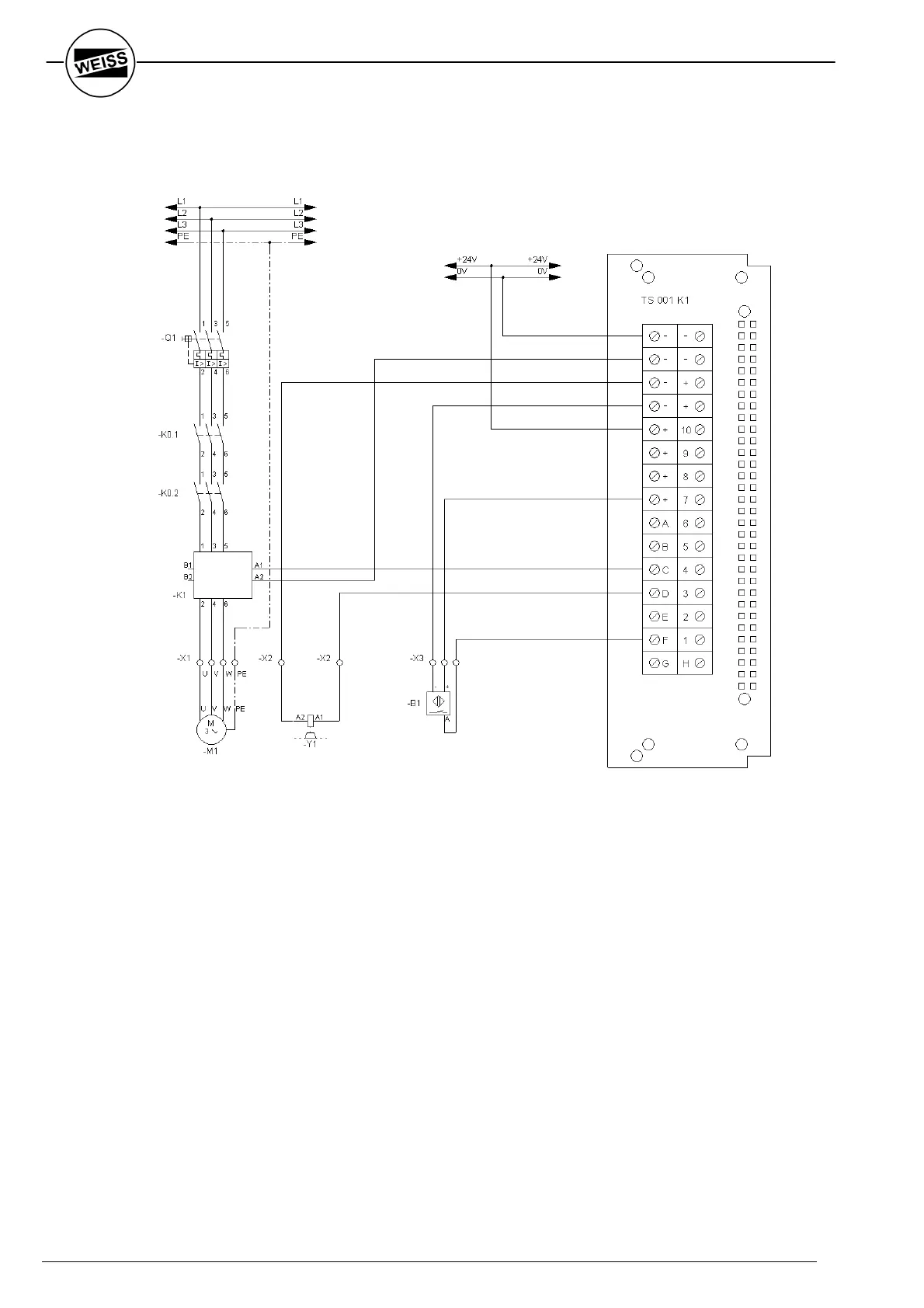

3.5 Anschluss von Steuerung,
Motor und Bremse
Bremsmotor Normalbetrieb (24 V Bremse)
3.5 Control, Drive Motor and Brake Wiring
Brake Motor Normal Operation
(24 V Brake):
Fig. 3-6
Q1: Motorschutzschalter
K0.1, K0.2: Notausrelais
K1: Elektronischer Motorschütz
M1: Rundschalttischmotor
Y1: Bremse
B1: Initiator Position
Q1: Protective motor switch
K0.1, K0.2: E-STOP Relay
K1: Electronic Motor Contactor
M1: Index Table Motor
Y1: Brake
B1: Limit Switch Position
