Rotary indexing ring TR

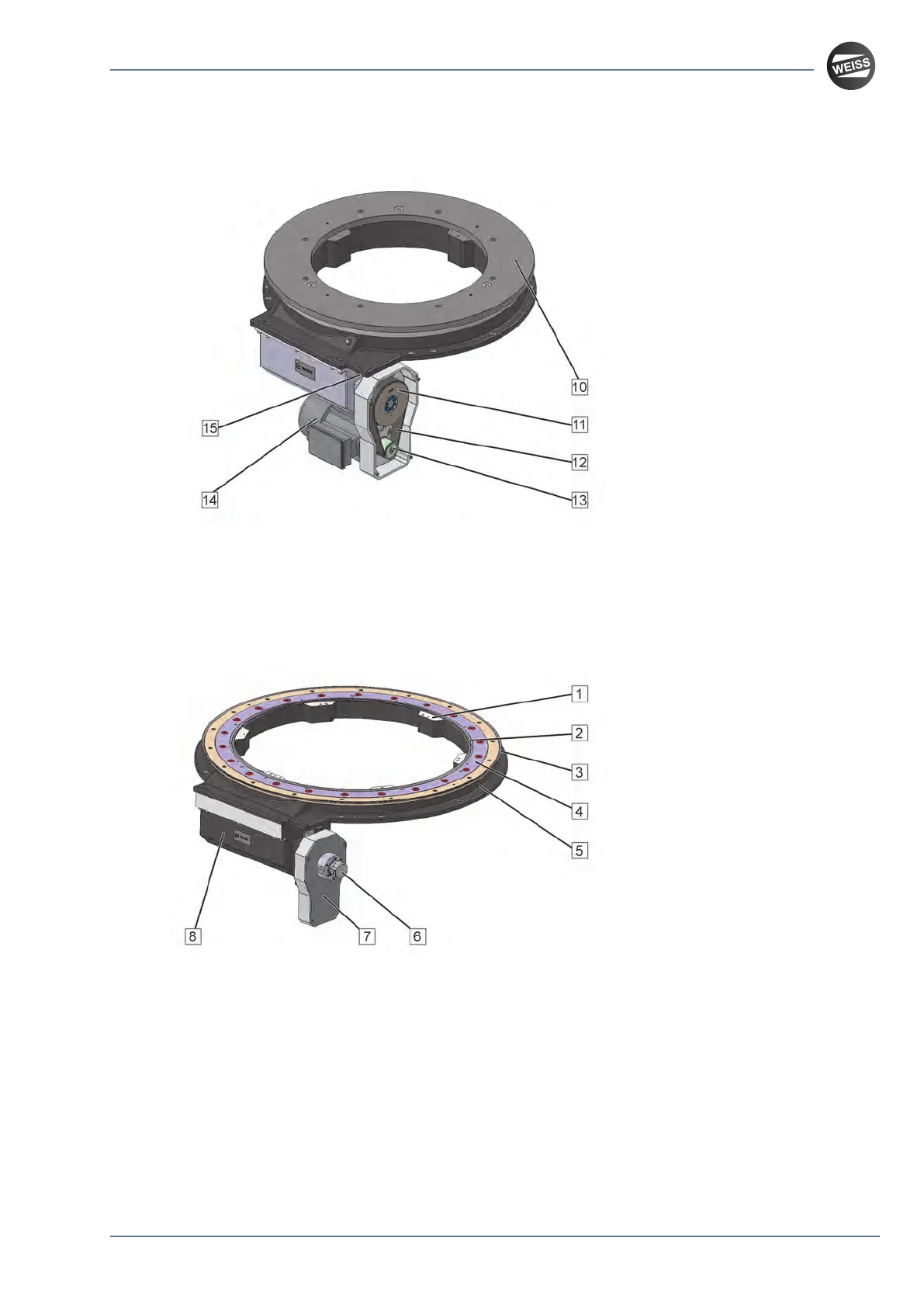

Product description
10 Rotating ring (customer-specific) 13 Toothed belt pulley (motor)
11 Toothed belt pulley (gear) 14 Motor
12 Toothed belt 15 Inductive sensor
Product type: TR1100A/TR1500A/TR2200A
1 Mounting surface for raised ring 5 Housing
2 Profile seal 6 Encoder (optional)
3 Profile seal 7 Drive housing
4 Output flange 8 Cam housing
Mounting instructions_062019_4.0_en
11 / 79
