Rotary indexing ring TR
Product description
3 Product description
3.1 Overview
Product type: TR0750A

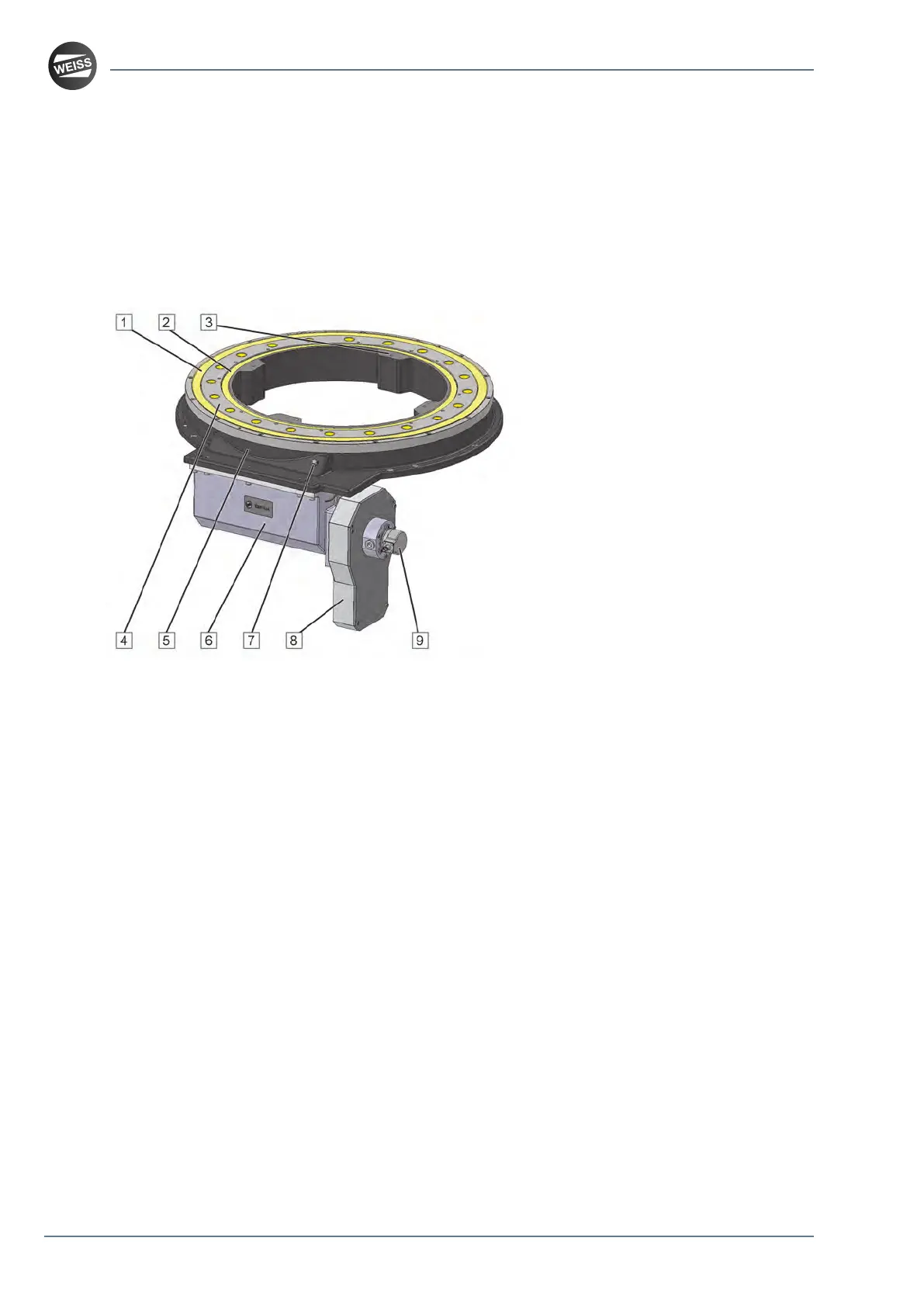

The product consists of the following components:
1 Shaft sealing ring 6 Cam housing
2 Shaft sealing ring 7 Vent screw
3 Mounting surface for raised ring 8 Drive housing
4 Output flange 9 Encoder (optional)
5 Housing
10 / 79
Mounting instructions_062019_4.0_en
