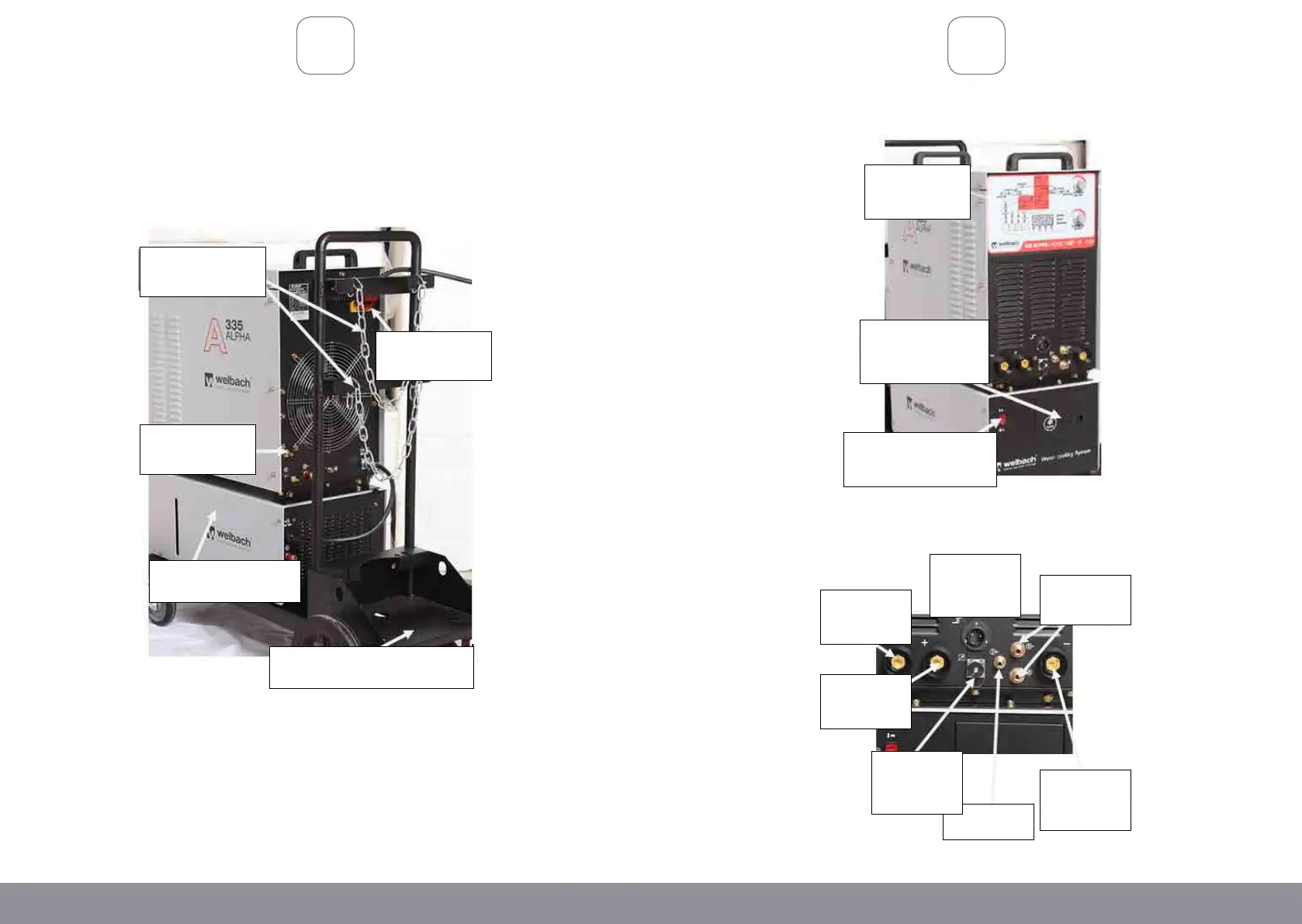

Attaching the Air Supply
WARNING:
Only use dry air as the gas in this tool. Use of any other gas, such as oxygen, acetyle-
ne, etc. may cause explosion
Connect the right gas air inlet to your supply Argon by one air hose (not supplied).
And remember to fasten it with coupling
POWER
SWITCH
CHAIN FOR
FASTENING THE
GAS BOTTLE
GAS
INLET
WATER COO-
LING SYSTEM
GAS BOTTLE
TRAILER
71
Front Panel and torch connector
CONTROL
PANEL
DOOR OF
WATER COOLING
SYSTEM
ON/OFF -
SWITCH
OF WATER
COOLING SYSTEM
AC
GROUND
SOCKET (1)
DC
GROUND
SOCKET (2)
TIG TORCH
CABLE
SOCKET (3)
WATER
OUTLET (6)
TORCH
CONTROL
SOCKET (7)
GAS
OUTLET (5)
FOOT PEDAL
CONTROL
SOCKET (4)
