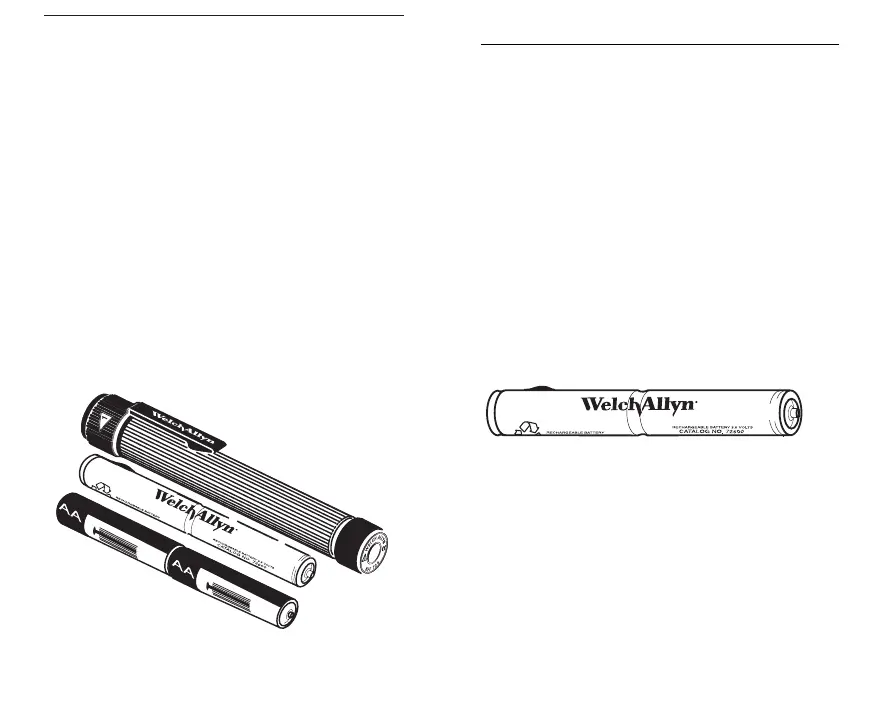

Convertible PocketScope Handles (72800)
For use with AA and Welch Allyn
rechargeable batteries
This handle can be used with either
AA batteries or with Welch Allyn’s
PocketScope rechargeable battery
(#72600) and Desk Charger.
NOTE: Only use the Welch Allyn Universal
Charger or PocketScope Desk Charger (obso-
lete) with the Welch Allyn Convertible
PocketScope handle and rechargeable battery
(#72600). Do not use the Universal Charger or
PocketScope Desk Charger when using AA
batteries.
Batteries
Recharging Batteries (72800 only)
1. Plug charger into outlet:
Product No. 71140 in the U.S.
(120V, 50-60 Hz)
Product No. 71145 outside the U.S.
(specify country and voltage)
2. To insure full charge and long lamp life,
turn instrument(s) to “off” position.
3. Insert handle(s) into charger. Green indicator
lights will illuminate when handles are
charging properly. NOTE: AA batteries will
not charge and will not cause indicator
lights to illuminate.
NOTE: Only Welch Allyn rechargeable
battery (#72600) is approved for use with
these handles.
Changing Batteries
1. Remove (unscrew) bottom cap.
2. Tap handles on palm of hand until battery
slides out.
3. Insert new battery:
Rechargeable: Insert in either direction.
#72600 Nickel Cadmium
Rechargeable Battery
