Description
10 412721

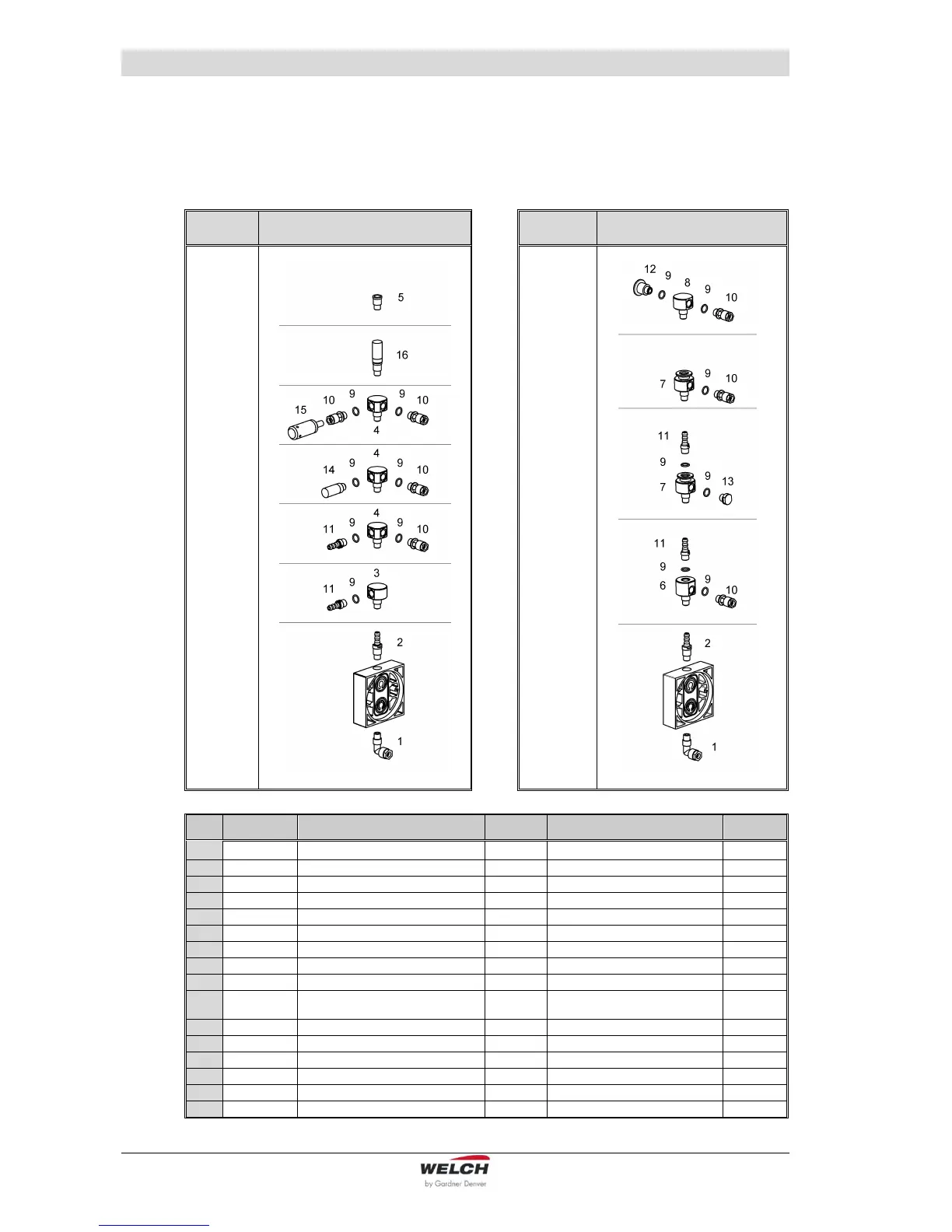

3.8.1 Connection variants A – K
Into the connection head with PTFE-insert one can screw only parts with extension
ø15 - 12 long and for thread in M12x1.
To all distributors only screw connections with G1/4 are screwed. Into the small flange
DN16KF additionally e.g. a hose nozzle with connection G 1/4" can be screwed in.
Variant
Figure with item no.
Variant
Figure with item no.
A
B
C
D
E
F
G
H
I
J
K
G
Item
no.
Order no.
Designation
Material
Dimensions
Fig. in
Variant:
1
829972
Threaded elbow joint
PVDF
M12 x 1; 10
G
2
710798-04
Hose nozzle
PP
M12 x 1; DN 8
G
3
400905
Manifold 1
PP
M12 x 1; 1x G ¼ inch
F
4
400903
Manifold 2
PP
M12 x 1; 2x G ¼ inch; L
C, D, E
5
710957
Adapter
PP
M12 x 1; G ¼ inch
A
6
400933
Manifold 8
PP
M12 x 1; 2x G ¼ inch; L upward
K
7
400917-01
Manifold 5
PP
M12 x 1; 1x G ¼ inch; DN 16 KF
I, J
8
400911
Manifold 4
PP
M12 x 1; 2x G ¼ inch; I
H
9
829217-3
O-ring
EPDM
ø12 x 2
all
10
829931
Straight threaded joint with
seal edge
PVDF
10 - ¼ inch
C, D, E, H,
I, K
11
710798
Hose nozzle
PP
G ¼ inch; DN 8
E, F, J, K
12
710116
Threaded flange
PP
G ¼ inch; DN 16 KF
H
13
400568
Blind plug
PP
G ¼ inch
J
14
829901
Exhaust silencer
PA
G ¼ inch
D,
15
400941
Exhaust silencer
PP / PA
A - 10
C
16
400596
Exhaust silencer
PA
M12 x 1 male thread
B
