Modulation Output-Parameter Setting> On this page, you can enable channels as you need and
input the Frequency (KHz), QAM Mode, Symbol Rate (KBaud) and RF Level Gain (dBmV) to have an
output.
Here is the range parameter of the above info.
Parameters
Range
Frequency(KHz)
47000 ~ 999000
QAM Mode
QAM16/32/64/128/256
Symbol Rate(KBaud)
3600 and 6952
RF Level Gain (dBmV)
-10 ~ 0
(The value must be a number multiple of 0.5)
RF Level(dBmV)
90~120
PSI/SI Interval(ms)
50 ~ 10000

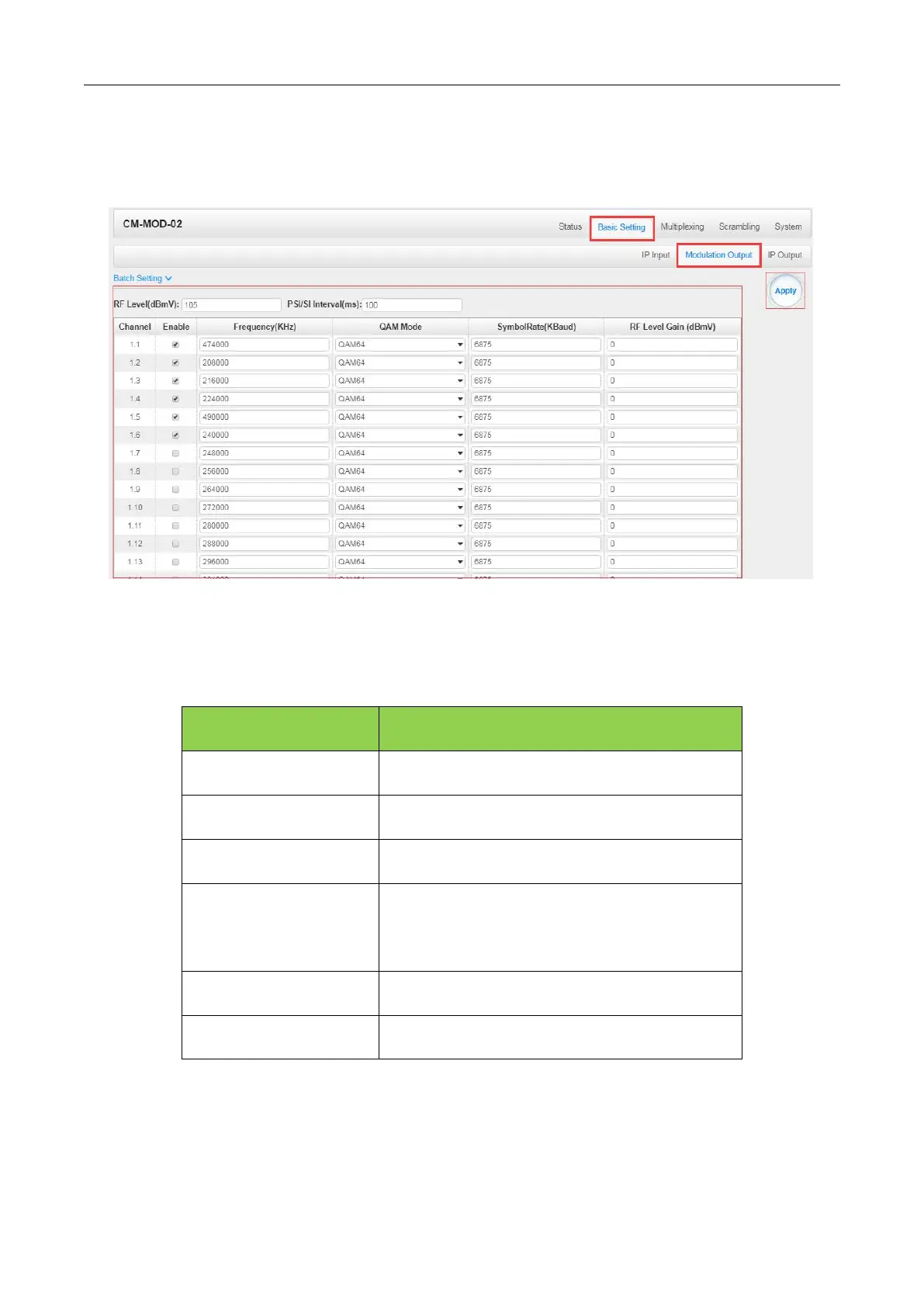

You can also set the RF level in a range of 90 to 120 as shown in the image below.
