CMP203 User Guide
CE2-HDMI-02C> System
Please refer to CR2-DVBC/DTMB module.

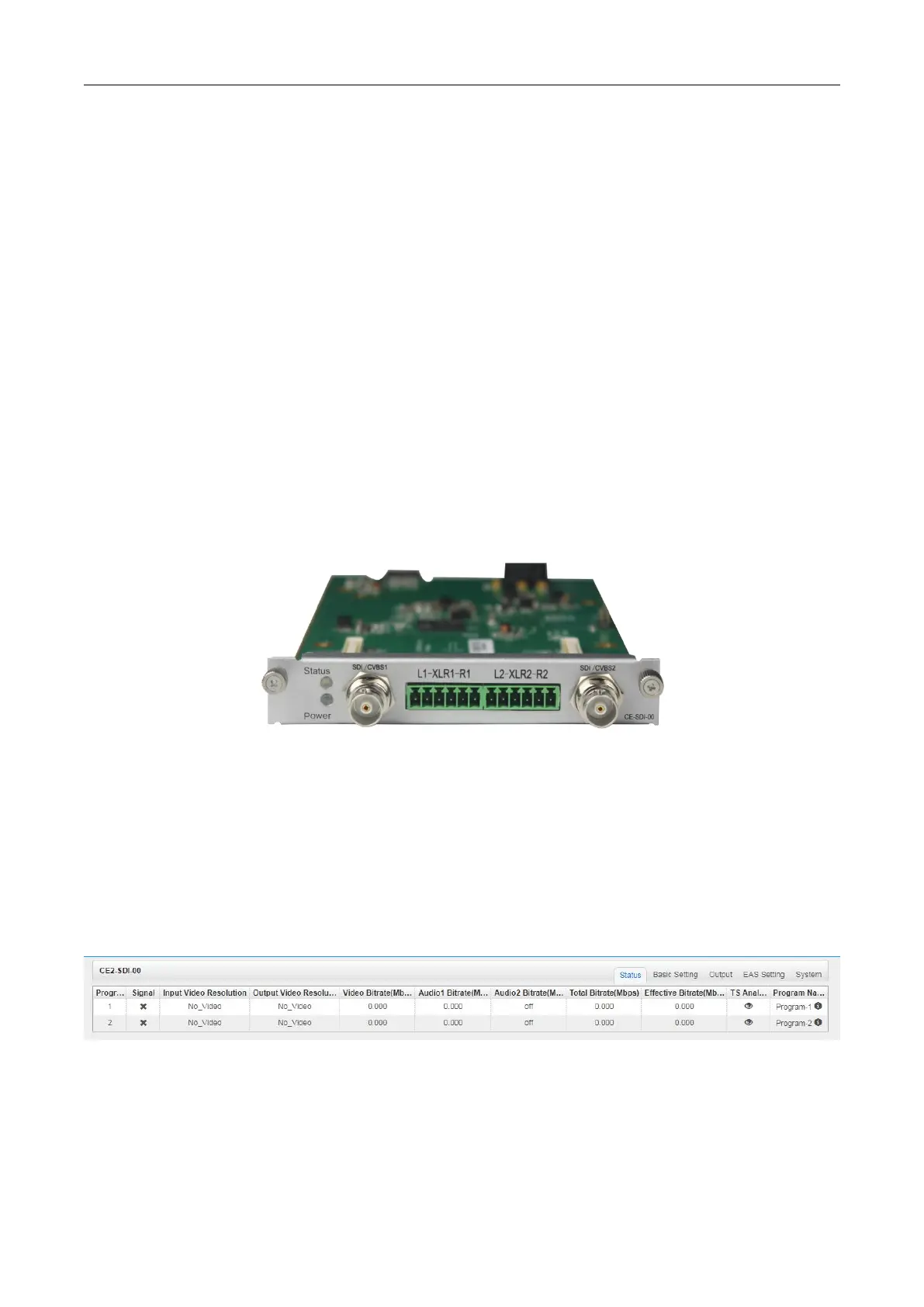

5.2.4 CE2-SDI-00
CE2-SDI-00 module supports 2CH H.264/AVC HD/SD (up to 1080p60) or MPEG-2 HD/SD (up to
1080i60) encoding via SDI/CVBS input. MPEG1-L2, AAC and AC3 audio encoding are available with
optional licenses (2×BNC, 2×6-pins interfaces (for analog audio inputs)).
CE2-SDI-00>Status
Status page for CE2-SDI-00 shows the following parameters: Signal Status, Input Video
Resolution, Output Video Resolution, Video Bitrate, Audio Bitrate, Audio2 Bitrate, Total
Bitrate, Effective Bitrate, TS anaylsis and Program Name. The following parameters will display
values once a good SDI source is connected.
