CMP203 User Guide

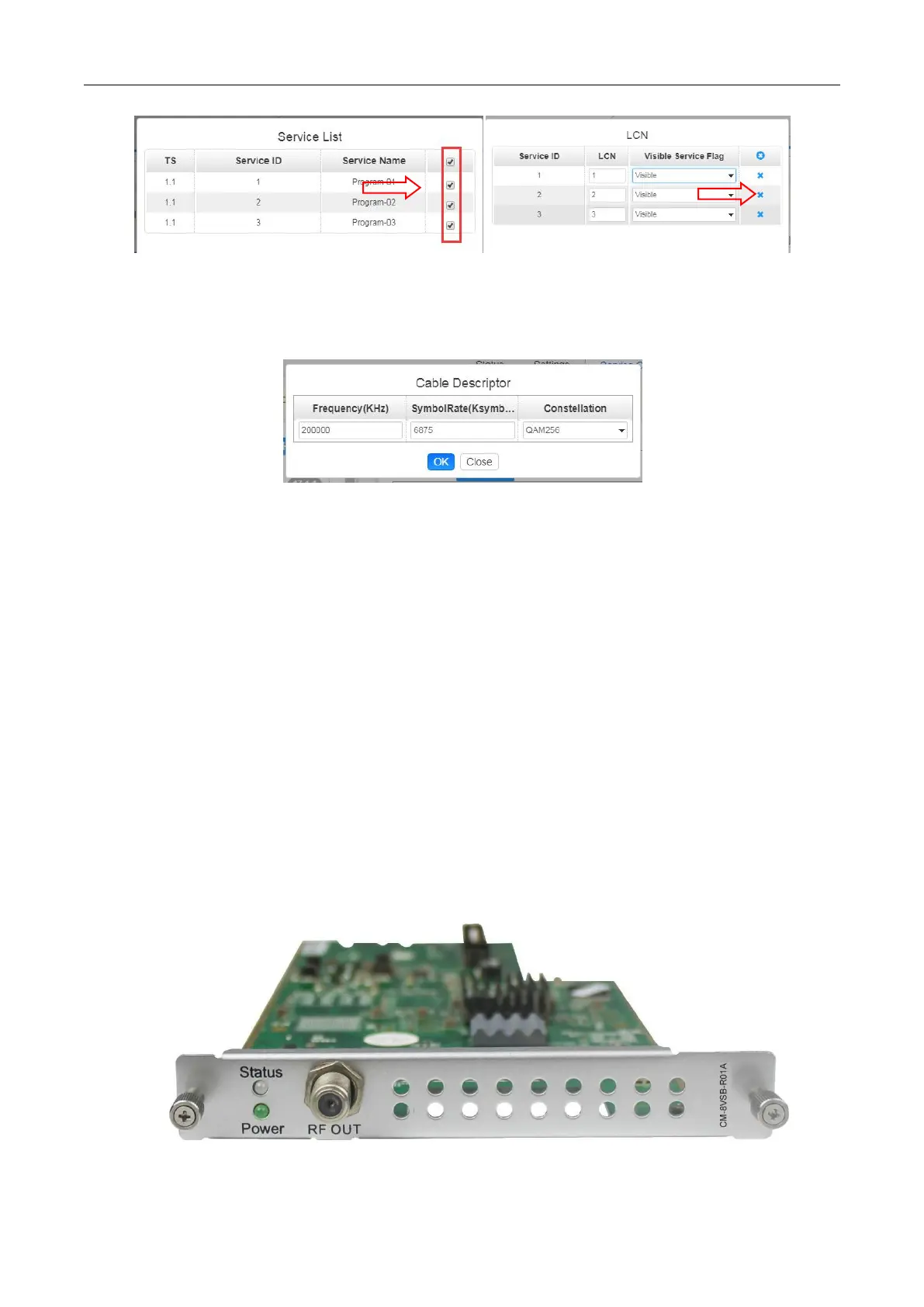

 Click +Descriptor and Cable Descriptor. Then fill in the correct frequency and symbol rate

and choose the correct constellation of the TS (frequency). Then click OK (this operation

should be set on Modulator module only).

 Repeat the operations to add next TS (frequency) until NIT streams of all the frequencies

have been included. Finally click Apply to let all configuration take effect. Then searching

programs in your STB, you will get all programs in the order of LCN you set.

5.3.2 CM2-8VSB-R01/R01A

CM2-8VSB-R01 / R01A module supports up to 4/8 8VSB adjacent frequencies modulating with 1 RF

connector for output.
