CMP203 User Guide
31

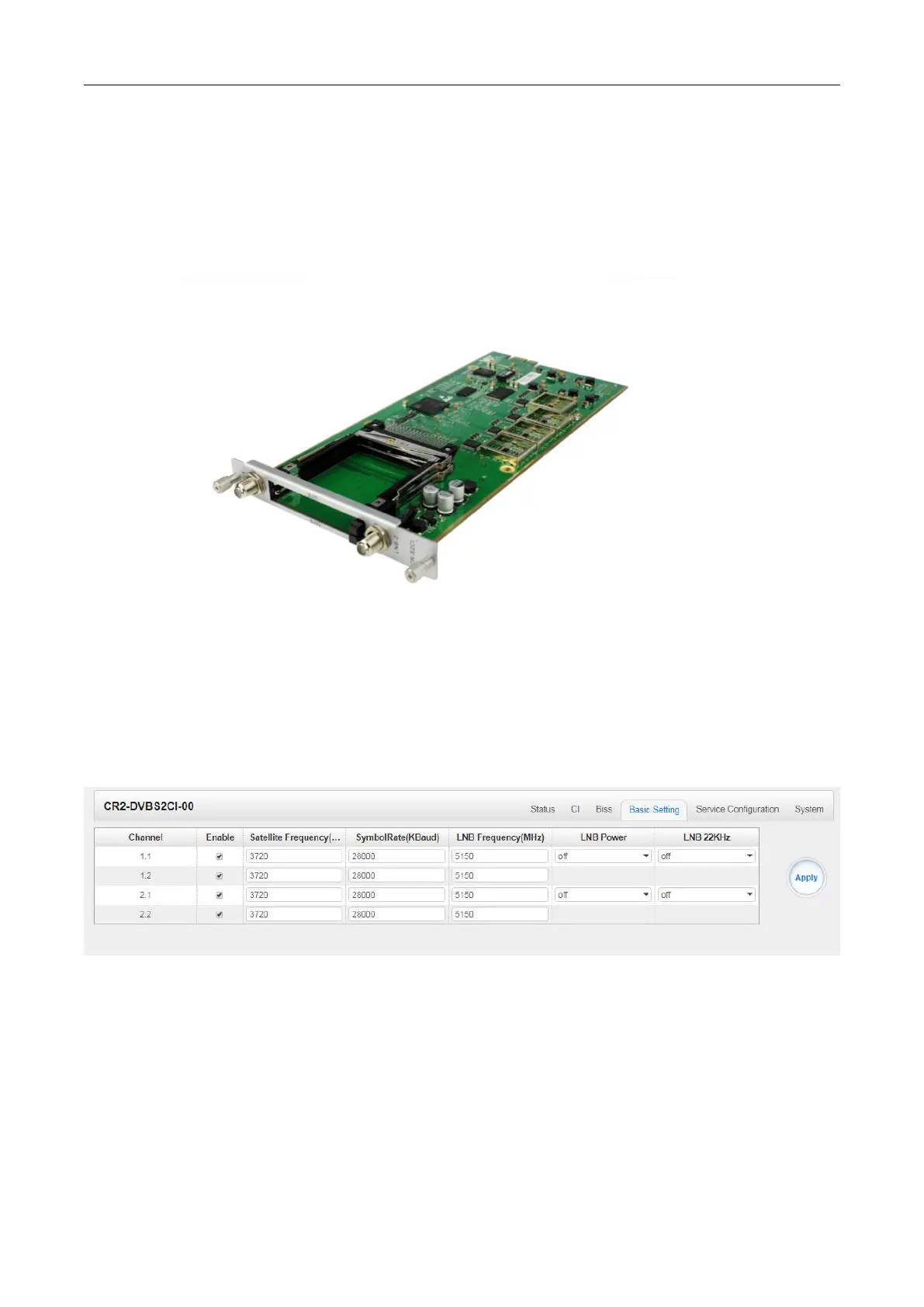

5.1.2 CR2-DVBS2CI-00
CR2-DVBS2CI-00 is a 4-channel DVB-S/S2 receiving and descrambling module with 2 RF
connectors and 2 CI slots, each RF connector with 2 transponders receiving.
Service configuration is similar to CR2-DVBC-00. Status, CI Status and System refer to
CR2-DVBC -00 module section.
CR2-DVBS2CI-00 >Basic Setting
Channel 1.1 and 1.2 share power with each other via LNB-1. Channel 2.1 and 2.2 share power via
LNB-2.
