CMP203 User Guide
CM2-MOD-02 > Multiplexing

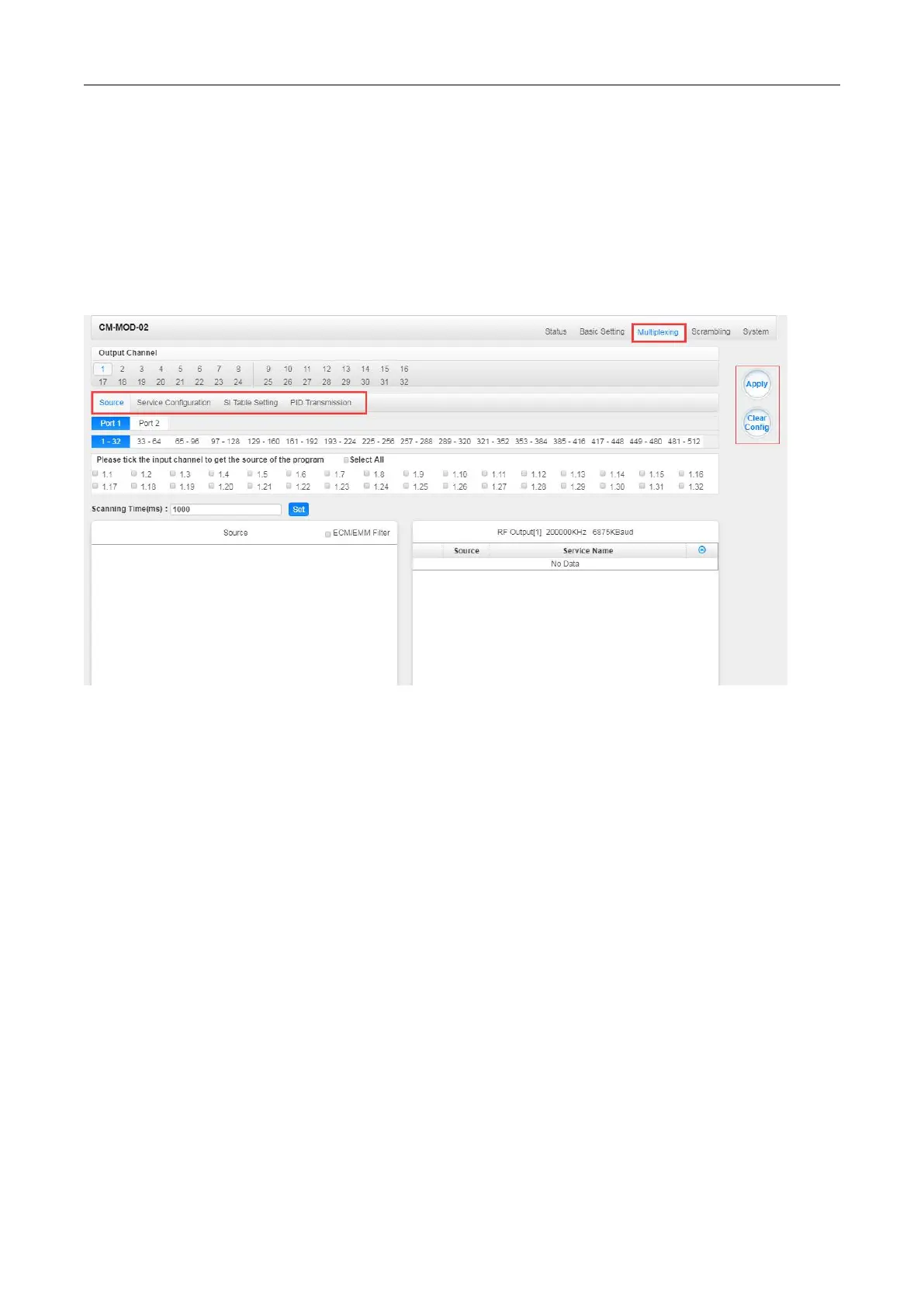

Multiplexing has four tabs: Source, Service Configuration, SI Table Setting and PID
Transmission. Here you are can set to output services from IP Input to Modulation Output. Click
Multiplexing to see 32 modulation output channels. Select a channel you want to configure and you
will see Source setting of this channel.
Multiplexing-Source> Source is where you select a source for output. You can chose Port 1 or Port
2 for the source. Each port is divided into 16 groups to complete 512 channels. Select a Port and you
can see service lists of Group and Channel as shown below.
