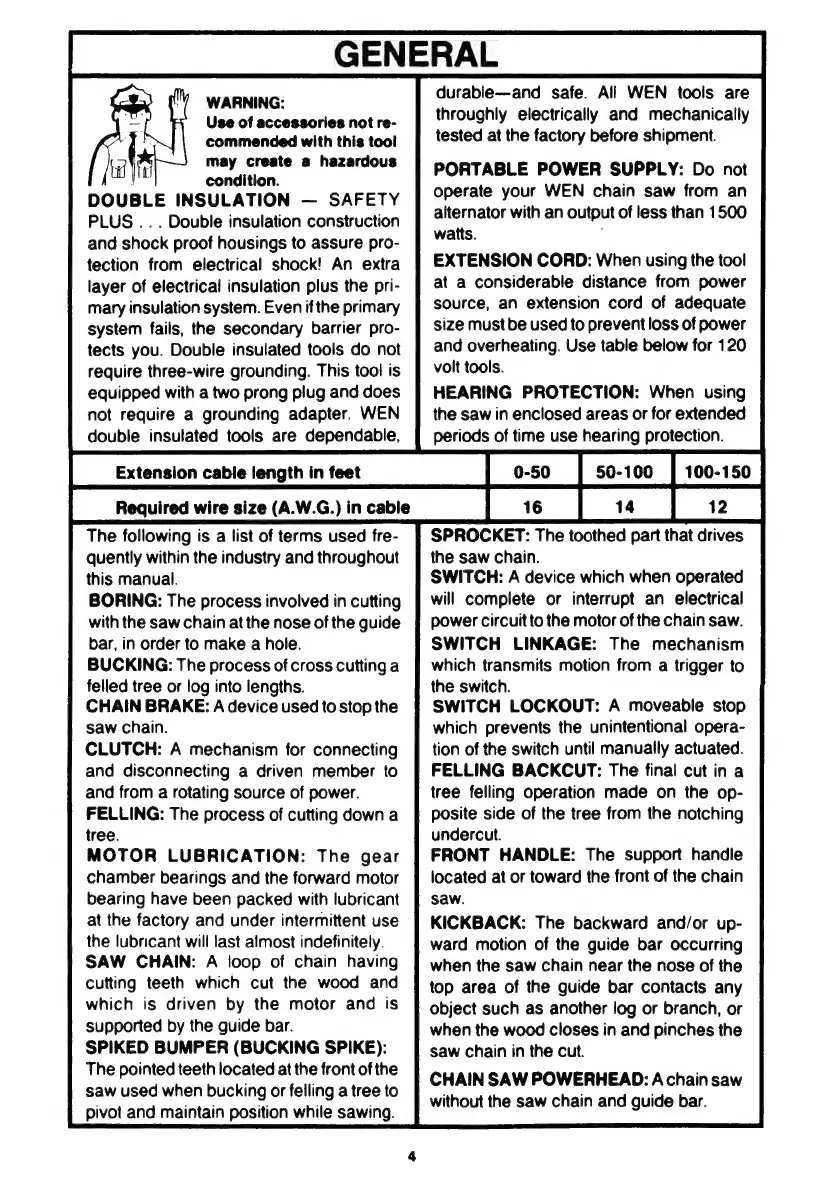

GENERAL
durable—and
safe.
All
WEN
tools
are
throughly
electrically
and
mechanically
tested
at
the
factory
before
shipment.
WARNING:
Use
of
accessories
not
re-
commended
with
this
tool
may
create
a
hazardous
q
condition.
DOUBLE
INSULATION
—
SAFETY
PLUS
.
.
.
Double
insulation
construction
and
shock
proof
housings
to
assure
pro-
tection
from
electrical
shock!
An
extra
layer
of
electrical
insulation
plus
the
pri-
mary
insulation
system.
Even
if
the
primary
system
fails,
the
secondary
barrier
pro-
tects
you.
Double
insulated
tools
do
not
require
three-wire
grounding.
This
tool
is
equipped
with
a
two
prong
plug
and
does
not
require
a
grounding
adapter.
WEN
double
insulated
tools
are
dependable,
Extension
cable
length
in
feet
Required
wire
size
(A.W.G.)
in
cable
The
following
is
a
list
of
terms
used
fre-
quently
within
the
industry
and
throughout
this
manual.
BORING:
The
process
involved
in
cutting
with
the
saw
chain
at
the
nose
of
the
guide
bar,
in
order
to
make
a
hole.
BUCKING:
The
process
of
cross
cutting
a
felled
tree
or
log
into
lengths.
CHAIN
BRAKE:
A
device
used
to
stop
the
saw
chain.
CLUTCH:
A
mechanism
for
connecting
and
disconnecting
a
driven
member
to
and
from
a
rotating
source
of
power.
FELLING:
The
process
of
cutting
down
a
tree.
MOTOR
LUBRICATION:
The
gear
chamber
bearings
and
the
forward
motor
bearing
have
been
packed
with
lubricant
at
the
factory
and
under
intermittent
use
the
lubricant
will
last
almost
indefinitely.
SAW
CHAIN:
A
loop
of
chain
having
cutting
teeth
which
cut
the
wood
and
which
is
driven
by
the
motor
and
is
supported
by
the
guide
bar.
SPIKED
BUMPER
(BUCKING
SPIKE):
The
pointed
teeth
located
at
the
front
of
the
saw
used
when
bucking
or
felling
a
tree
to
pivot
and
maintain
position
while
sawing.
PORTABLE
POWER
SUPPLY:
Do
not
operate
your
WEN
chain
saw
from
an
alternator
with
an
output
of
less
than
1500
watts.
,
EXTENSION
CORD:
When
using
the
tool
at
a
considerable
distance
from
power
source,
an
extension
cord
of
adequate
size
must
be
used
to
prevent
loss
of
power
and
overheating.
Use
table
below
for
120
volt
tools.
HEARING
PROTECTION:
When
using
the
saw
in
enclosed
areas
or
for
extended
periods
of
time
use
hearing
protection.
SPROCKET:
The
toothed
part
that
drives
the
saw
chain.
SWITCH:
A
device
which
when
operated
will
complete
or
interrupt
an
electrical
power
circuit
to
the
motor
of
the
chain
saw.
SWITCH
LINKAGE:
The
mechanism
which
transmits
motion
from
a
trigger
to
the
switch.
SWITCH
LOCKOUT:
A
moveable
stop
which
prevents
the
unintentional
opera-
tion
of
the
switch
until
manually
actuated.
FELLING
BACKCUT:
The
final
cut
in
a
tree
felling
operation
made
on
the
op-
posite
side
of
the
tree
from
the
notching
undercut.
FRONT
HANDLE:
The
support
handle
located
at
or
toward
the
front
of
the
chain
saw.
KICKBACK:
The
backward
and/or
up-
ward
motion
of
the
guide
bar
occurring
when
the
saw
chain
near
the
nose
of
the
top
area
of
the
guide
bar
contacts
any
object
such
as
another
log
or
branch,
or
when
the
wood
closes
in
and
pinches
the
saw
chain
in
the
cut.
CHAIN
SAW
POWERHEAD:
A
chain
saw
without
the
saw
chain
and
guide
bar.
