ASSEMBLY AND ADJUSTMENTS

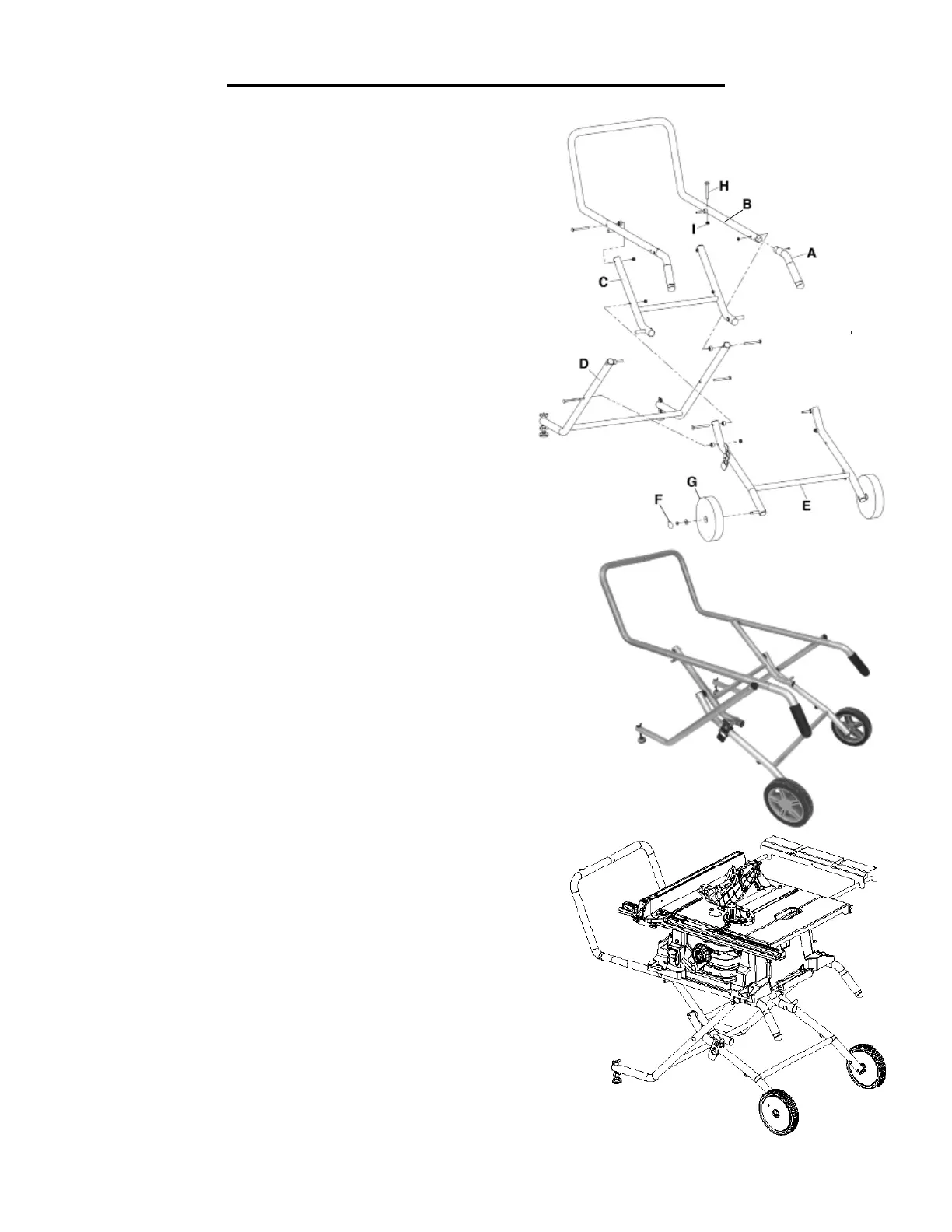

ASSEMBLY OF FOLDING STAND (Fig. 1)
1. Insert both handles (A) into the large U-shaped bracket (B).
Make sure the screw hole in each handle matches the screw
hole on the U-shaped bracket. Align the screw holes and secure
the handles using a small pan head screw.
2. Mount middle bracket (C) to U-shaped bracket (B) using car-
riage bolts, plastic spacers and nuts.
3. Mount foot bracket (D) to U-shaped bracket (B) using car-
riage bolts, plastic spacers and nuts.
4. Mount wheel bracket (E) to foot bracket (D) and middle
bracket (C) using carriage bolts, plastic spacers and nuts.
5. Remove the wheel cap (F) Fig.1 and remove mounting hard-
ware inside wheel. Mount the wheels (G) to wheel bracket (E)
using large washers and nuts. Install wheel caps (F) once wheels
are installed.
6. The stand is now completely assembled and should look like
the stand shown in Fig.2.
Fig. 2
Fig. 1
Fig. 3
MOUNTING OF JOBSITE SAW ON FOLDING STAND
Position the jobsite saw on top of the stand (choose which orien-
tation best suits you). Use 4 cap screws and nuts (Fig.3) to secure
jobsite saw to stand.
