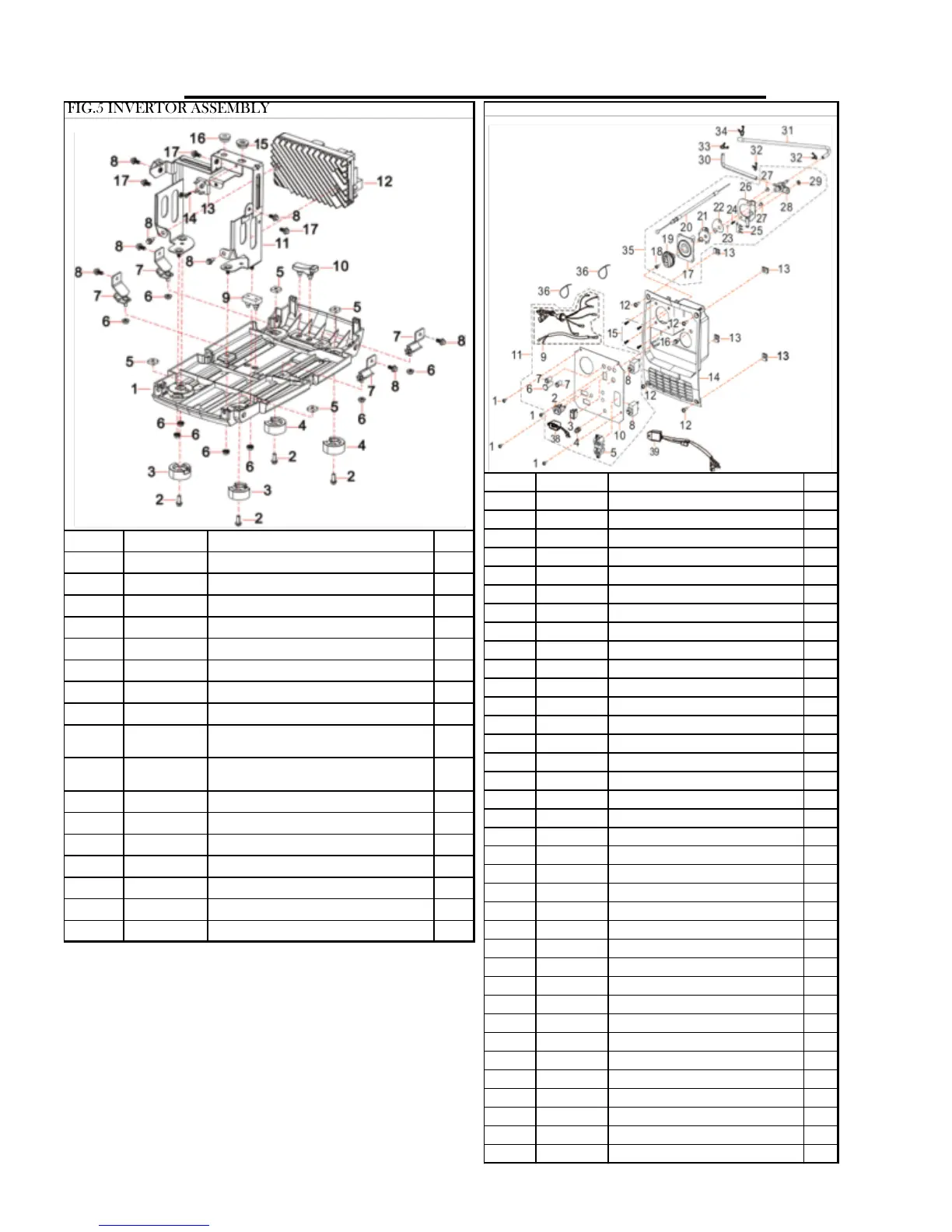

EXPLODED VIEW AND PARTS LIST
DESCRIPTION
Fig.5-1 56200-0501
BOTTOM PLATE
1
Fig.5-2
Fig.5-3 56200-0503 FRAME SEAT
Fig.5-4 56200-0504 FRAME SEAT
Fig.5-5 56200-0505 NUT
Fig.5-6 56200-0506 NUT
Fig.5-7 56200-0507 ENGINE FRAME CUSHION
Fig.5-8 56200-0508 BOLT
Fig.5-9 56200-0509
BRACKET
1
Fig.5-10 56200-0510
BRACKET
1
Fig.5-11 56200-0511 INVENTOR SUPPORT
Fig.5-12 56200-0512
INVERTOR
Fig.5-13 56200-0513 RECTIFIER BRIDGE
Fig.5-14 56200-0514 SCREW
Fig.5-15 56200-0515
FUEL TANK RUBBER SLEEVE
Fig.5-16 56200-0516
FUEL TANK RUBBER SLEEVE
Fig.5-17 56200-0517 BOLT
DESCRIPTION
Fig.6-1 56200-0601 SCREW 4
Fig.6-2 56200-0602
DC OUTLET
1
Fig.6-3 56200-0603 IDEL SWITCH 1
Fig.6-4 56200-0604 GROUNDING TERMINAL 1
Fig.6-5 56200-0605 DUPLEX RECEPTACLE 1
Fig.6-6 56200-0606 OVERLOAD INDICATOR 1
Fig.6-7 56200-0607 OUTPUT INDICATOR 2
Fig.6-8 56200-0608 CIRCUIT BREAKER 20 A 1
Fig.6-10 56200-0610 CONTROL PANEL 1
Fig.6-11 56200-0611 CONTROL PANEL ASSEMBLY 1
Fig.6-12 56200-0612 WASHER AND SCREW 4
Fig.6-13 56200-0613 NUT 4
Fig.6-14 56200-0614
PANEL SEAT
1
Fig.6-15 56200-0615 SCREW 4
Fig.6-16 56200-0616 BOLT 1
Fig.6-17 56200-0617 CONTROL BOX 1
Fig.6-18 56200-0618 SCREW 1
Fig.6-19 56200-0619
KNOB
1
Fig.6-20 56200-0620
CHOKE HANDLE ASSEMBLY
1
Fig.6-21 56200-0621 COVER PLATE 1
Fig.6-22 56200-0622
CHOKE CABLE STOPPER BLOCK
1
Fig.6-23 56200-0623
STEEL BALL
1
Fig.6-24 56200-0624
STOPPER ADJUSTING SPRING
1
Fig.6-26 56200-0626
FUEL COCK BRACKET
1
Fig.6-27 56200-0627 SCREW 2
Fig.6-28 56200-0628
FUEL COCK ASSEMBLY
1
Fig.6-29 56200-0629 NUT 1
Fig.6-30 56200-0630 FUEL TUBE 1
Fig.6-31 56200-0631 FUEL TUBE 1
Fig.6-32 56200-0632 COLLAR 2
Fig.6-33 56200-0633 COLLAR 1
Fig.6-34 56200-0634 COLLAR 1
Fig.6-36 56200-0636 BAND 2
Fig.6-37 56200-0637 RUBBER JACKET 3
Fig.6-38 56200-0638 USB CHARGER 1
Fig.6-39 56200-0639 RECTIFIER REGULATOR 1
