EXPLODED VIEW AND PARTS LIST
ITEM # STOCK #
DESCRIPTION
QTY
Fig.7-1
56200-0701
BOLT 5
Fig.7-2
56200-0702
MOTOR SHROUD 1
Fig.7-3
56200-0703 STATOR COMP
1
Fig.7-4
56200-0704 ROTOR COMP
1
Fig.7-5
56200-0705
IMPELLER
1
Fig.7-6
56200-0706
BOLT 2
Fig.7-7
56200-0707
PIN 2
Fig.7-8
56200-0708
BOLT 2
Fig.7-9
56200-0709 NUT
1

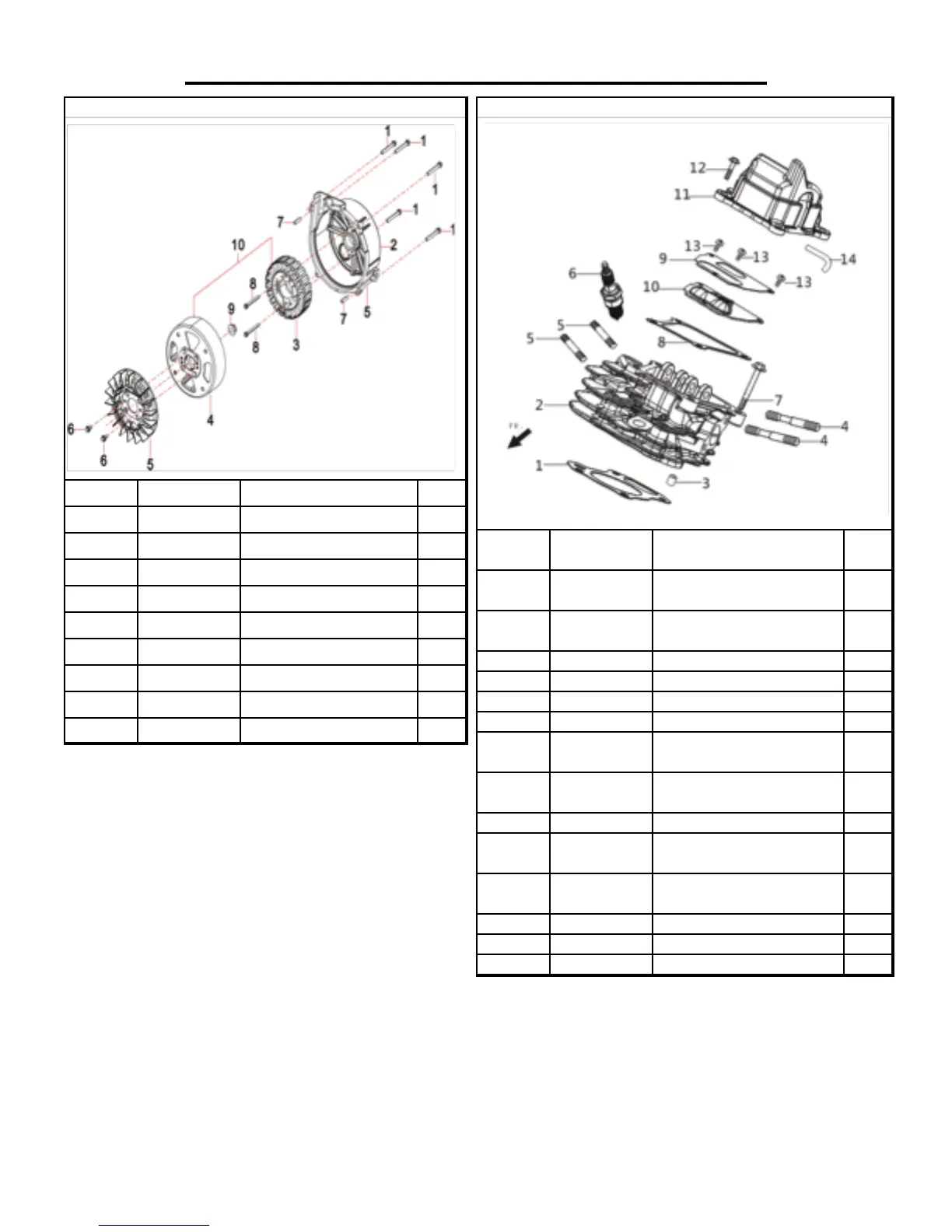

FIG.7 ROTOR/STATOR
ITEM # STOCK #
DESCRIPTION
QTY
Fig.8-1 56200-0801
CYLINDER HEAD
GASKET
1
Fig.8-2 56200-0802
CYLINDER HEAD
ASSEMBLY
1
Fig.8-3 56200-0803
PIN 2
Fig.8-4 56200-0804
STUD 2
Fig.8-5 56200-0805
STUD 2
Fig.8-6 56200-0806
SPARK PLUG 1
Fig.8-7 56200-0807
CYLINDER HEAD
BOLT
4
Fig.8-8 56200-0808
CYLINDER HEAD
COVER GASKET
1
Fig.8-9 56200-0809
BREATH GROOVE 1
Fig.8-10 56200-0810
BREATH GROOVE
GASKET
1
Fig.8-11 56200-0811
CYLINDER HEAD
COVER ASSEMBLY
1
Fig.8-12 56200-0812
BOLT 4
Fig.8-13 56200-0813
BOLT 3
Fig.8-14 56200-0814
BREATHER TUBE 1
FIG.8 CYLINDER HEAD/ SPARK PLUG
