Wen 56200i

27

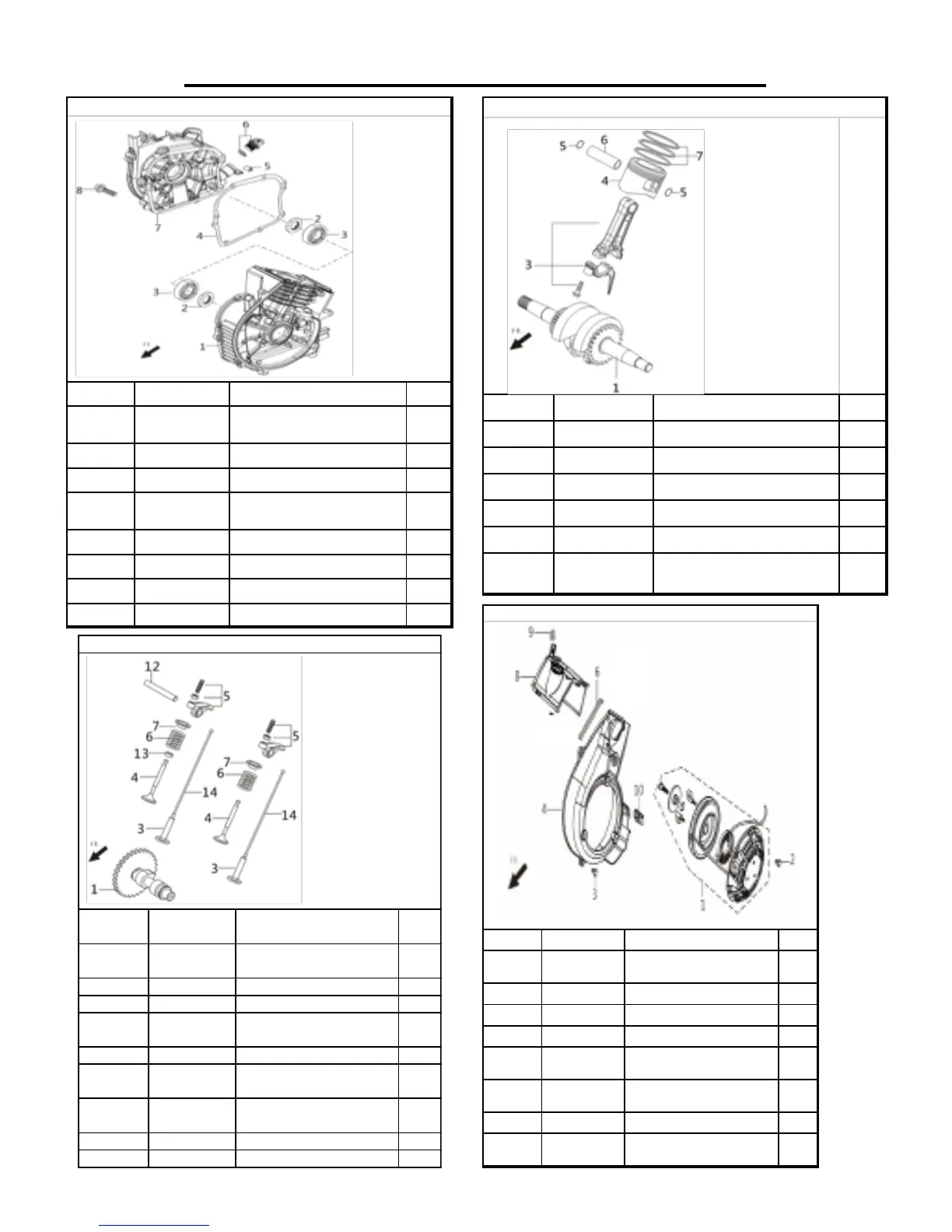

EXPLODED VIEW AND PARTS LIST
ITEM # STOCK #
DESCRIPTION
QTY
Fig.10-1 56200-1001 CRANKSHAFT 1
Fig.10-3 56200-1003 CONNECTING ROD 1
Fig.10-4 56200-1004 PISTON 1
Fig.10-5 56200-1005 PISTON PIN CLIP 2
Fig.10-6 56200-1006 PISTON PIN 1
Fig.10-7 56200-1007
PISTON RING
ASSEMBLY
1
FIG.10 PISTON RING SET / CONNECTING ROD
ITEM # STOCK #
DESCRIPTION
QTY
Fig.9-1
56200-0901
CRANKCASE
ASSEMBLY
1
Fig.9-2
56200-0902 OIL-SEAL 2
Fig.9-3
56200-0903 BEARING 2
Fig.9-4
56200-0904
CRANKCASE
GASKET
1
Fig.9-5
56200-0905 PIN 2
Fig.9-6
56200-0906 OIL DIPSTICK 1
Fig.9-7
56200-0907 CRANKCASE COVER 1
Fig.9-8
56200-0908 BOLT 7
FIG.9 CRANKCASE/CRANKCASE COVER
ITEM # STOCK #
DESCRIPTION
QTY
Fig.12-1 56200-1201
RECOIL STARTER
ASSEMBLY
1
Fig.12-2 56200-1202 BOLT 3
Fig.12-3 56200-1203 BOLT 3
Fig.12-4 56200-1204 SHROUD 1
Fig.12-6 56200-1206
SHROUD SEAL
STRIP
1
Fig.12-8 56200-1208
CYLINDER HEAD
SHROUD PLATE
1
Fig.12-9 56200-1209 STOP PLATE 1
Fig.12-
10
56200-1210 NUT 1
FIG.12 RECOIL STARTER
ITEM # STOCK #
DESCRIPTION
QTY
Fig.11-1 56200-1101
CAMSHAFT
ASSEMBLY
1
Fig.11-3 56200-1103 VALVE TAPPET 2
Fig.11-4 56200-1104 VALVE 1
Fig.11-5 56200-1105
VALVE ROCKER
ASSEMBLY
2
Fig.11-6 56200-1106 VALVE SPRING 2
Fig.11-7 56200-1107
VALVE SPRING
SEAT
2
Fig.11-12 56200-1112
VALVE ROCKER
SHAFT
1
Fig.11-13 56200-1113 SEAL GUIDE 1
Fig.11-14 56200-1114 VALVE LIFTER 2
FIG.11 VALE TRAIN / CAMSHAFT ASSEMBLY
