Wen 56200i

28

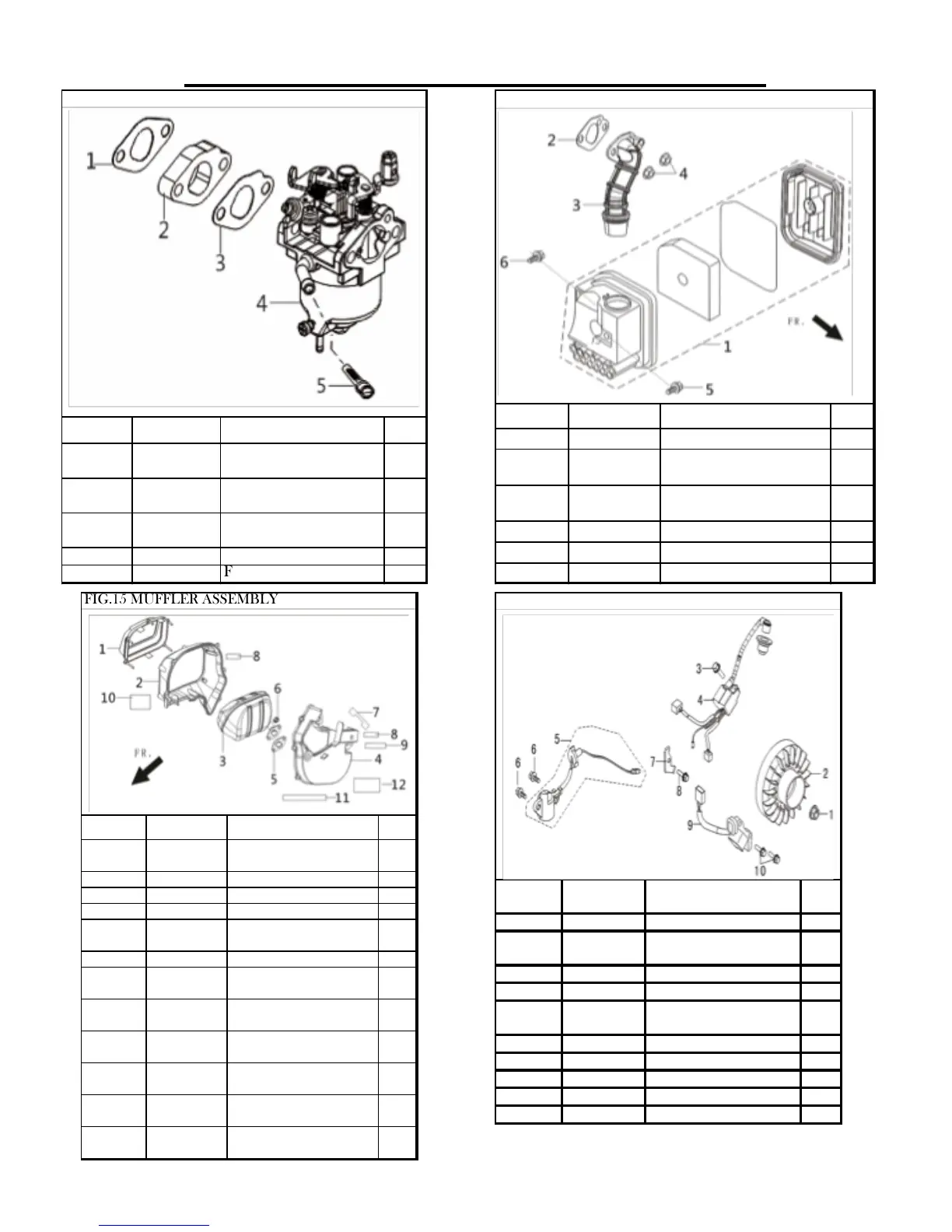

EXPLODED VIEW AND PARTS LIST
ITEM # STOCK # DESCRIPTION QTY
Fig.13-1
56200-1301
CARBURETOR
GASKET
1
Fig.13-2
56200-1302
CARBURETOR
INSULATOR PLATE
1
Fig.13-3
56200-1303
INSULATOR
GASKET
1
Fig.13-4 56200-1304
CARBURETOR 1
Fig.13-5 56200-1305
FUEL STRAINER 1
FIG.13 CARBURETOR ASSEMBLY
ITEM # STOCK # DESCRIPTION QTY
Fig.14-1 56200-1401 AIR CLEANER 1
Fig.14-2 56200-1402
AIR CLEANER
GASKET
1
Fig.14-3 56200-1403
AIR CLEANER
INTAKE DUCT
1
Fig.14-4 56200-1404 NUT 2
Fig.14-5 56200-1405 STUD 1
Fig.14-6 56200-1406 STUD 1
FIG.14 AIR CLEANER
ITEM # STOCK # DESCRIPTION QTY
Fig.15-1 56200-1501
MUFFLER SIDE
COVER
1
Fig.15-2 56200-1502 MUFFLER SHROUD 1
Fig.15-3 56200-1503 MUFFLER BODY 1
Fig.15-4 56200-1504 MUFFLER SHIELD 1
Fig.15-5 56200-1505
EXHAUST OUTLET
GASKET
1
Fig.15-6 56200-1506 NUT 2
Fig.15-7 56200-1507
GASKET, MUFFLER
SHIELD GASKET
1
Fig.15-8 56200-1508
GASKET, MUFFLER
SHIELD GASKET
2
Fig.15-9 56200-1509
GASKET, MUFFLER
SHIELD GASKET
1
Fig.15-10 56200-1510
SHROUD HEAT-
PROOF PAPER
1
Fig.15-11 56200-1511
SHIELD HEAT-
PROOF PAPER
1
Fig.15-12 56200-1512 HEAT-PROOF PAPER 1
FIG.15 MUFFLER ASSEMBLY
ITEM # STOCK #
DESCRIPTION
QTY
Fig.16-1 56200-1601 FLYWHEEL NUT 1
Fig.16-2 56200-1602
FLYWHEEL
ASSEMBLY
1
Fig.16-3 56200-1603 BOLT 1
Fig.16-4 56200-1604 IGNITOR 1
Fig.16-5 56200-1605
ENGINE OIL
SENSOR
1
Fig.16-6 56200-1606 BOLT 2
Fig.16-7 56200-1607 CLAMP 1
Fig.16-8 56200-1608 BOLT 1
Fig.16-9 56200-1609 IGNITION COIL 1
Fig.16-10 56200-1610 BOLT 2
FIG.16 FLYWHEEL / IMPELLER / STARTER
