KNOW YOUR INVERTER GENERATOR
3

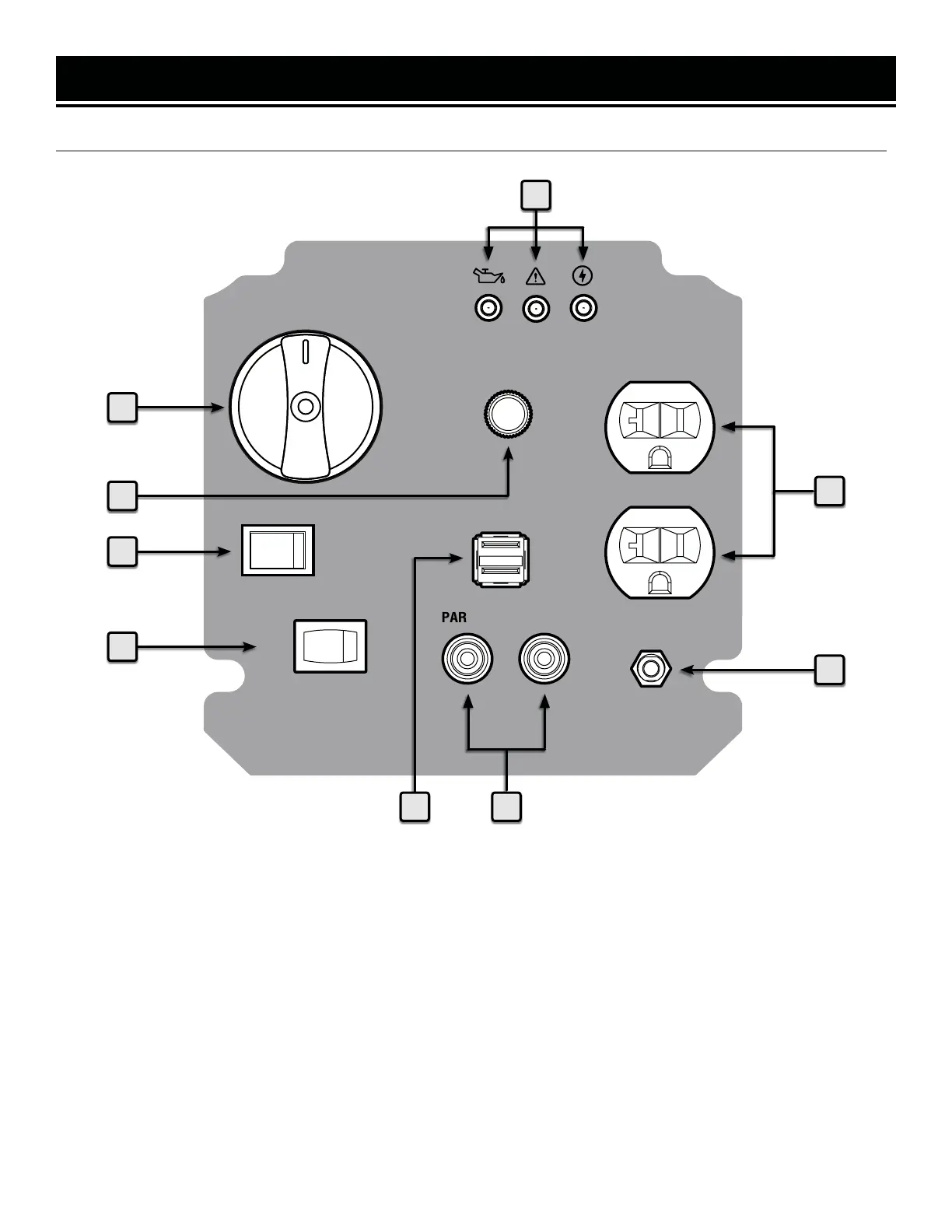

1. 3-In-1 Dial Switch
Choke, Run, Off
2. Indication Lights
Low Oil (Yellow), Overload (Red), & Output (Green).
3. AC 120V Duplex NEMA 5-20R
Standard household outlets provide 120V 60Hz power.
4. Grounding Nut
Ground the generator to reduce the risk of electric shock.
Refer to “Ground the Generator” section.
5. Parallel Connection
Connect to share wattage between inverter generators.
6. DC 5V USB Port
1A & 2.1A for charging various electronic devices.
7. Eco-Mode Switch
Maximizes fuel economy & run time.
8. Manual Shut Off
Quickly shut down your generator to refuel or relocate.
9. Reset Button
Press to reset the circuit incase of overload.
ECO-MODE
ON OFF
MANUAL
SHUT OFF
CHOKE
PARALLEL CONNECT
RESET
AC 120V
GROUNDING
DC 5V
RUN
OFF
CONTROL PANEL
2
5
4
6
7
8
9
1
10
