FIG. 3 - MUFFLER COVER

NO. PART NO. DESCRIPTION QTY.

Fig. 3-1

56200-

0301

Cover, Muffler

Side

Fig. 3-2

56200-

0302

Washer & Screw

Component

Fig. 3-3

56200-

0303

Cushion,

Joint Rubber

Fig. 3-4

56200-

0304

Clip, Spring 5

FIG. 2 - FUEL TANK ASSEMBLY

NO. PART NO. DESCRIPTION QTY.

Fig. 2-1 56225-0201 Tank, Fuel 1

Fig. 2-2 56200-0202 Fuel Filter 1

Fig. 2-3 56200-0203 Cover, Fuel Tank 1

Fig. 2-4 56200-0204 Clamp Oil Seal 1

Fig. 2-5 56200-0205 Fuel Gauge 1

Fig. 2-6 56200-0206 Bush 2

Fig. 2-7 56200-0207 Element, Strainer 1

Fig. 2-8 56200-0208 Tube, Fuel 1

Fig. 2-9 56200-0209 Collar 1

Fig. 2-10 56200-0210 Collar 1

Fig. 2-11 56200-0211 Jacket, Rubber 1

FIG. 1 - ENGINE

NO. PART NO. DESCRIPTION QTY.

Fig. 1-1

56225i-0101

Engine Assembly 1

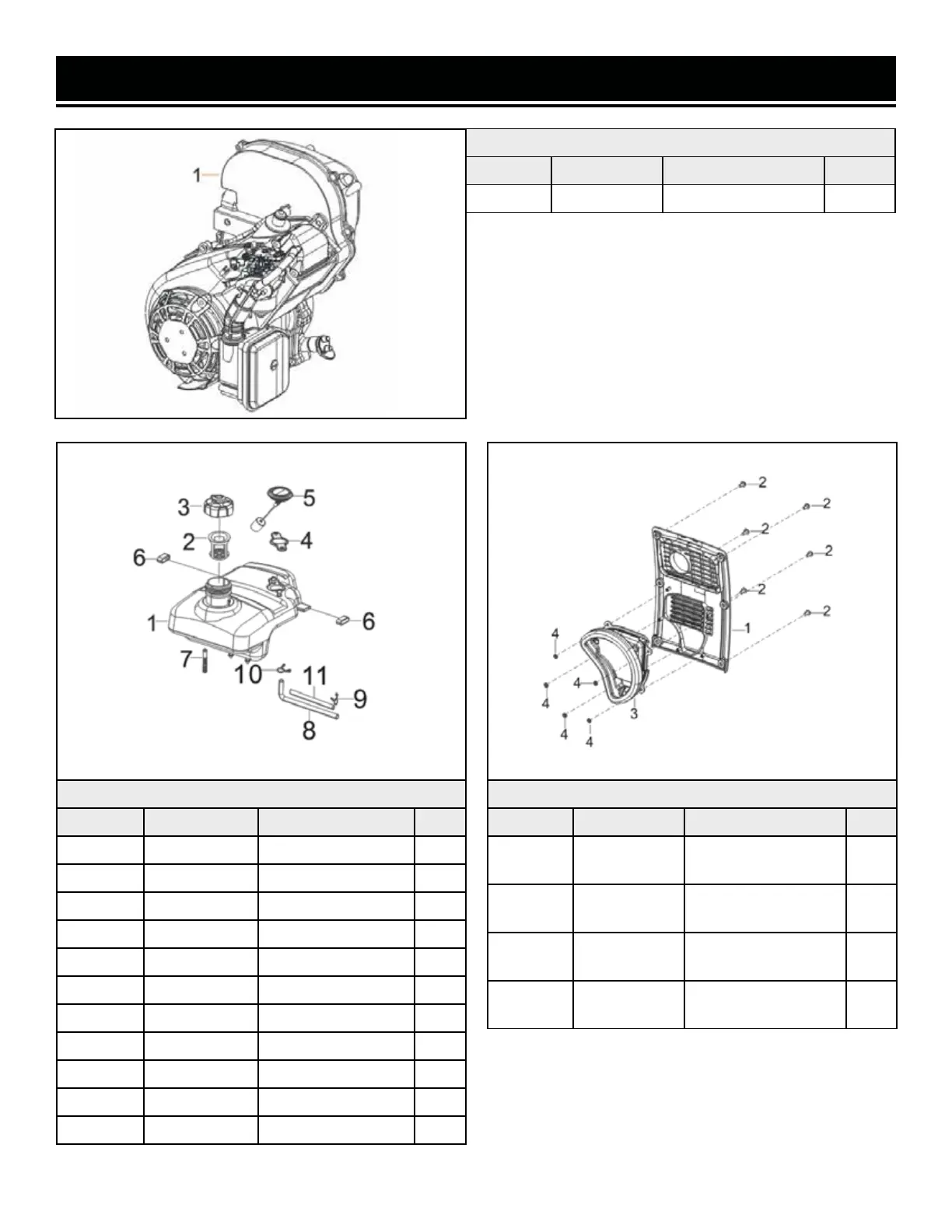

EXPLODED VIEW & PARTS LIST
