NO. PART NO. DESCRIPTION QTY.
Fig. 4-1
56200-
0401B
Side Panel
(Right)/Service
Panel
1
Fig. 4-2 56200-0402 Shell, Right 1
Fig. 4-3 56200-0403 Shell, Left 1
Fig. 4-4
56200-
0404B
Side Panel
(Left)
1
Fig. 4-6 56200-0406 Bolt 9
Fig. 4-7 56200-0407 Bolt 6
Fig. 4-8 56200-0408 Stud 6
Fig. 4-9 56200-0409
Fuel Tank
Rubber Sleeve
4
Fig. 4-10 56200-0410 Rubber Washer 1
Fig. 4-11 56200-0411
Gas Tank
Opening
1
Fig. 4-12 56200-0412 Jacket, Rubber 1
Fig. 4-13 56200-0413 Fuel Gauge 1
NO. PART NO. DESCRIPTION QTY.
Fig. 4-14 56200-0414 Jacket, Rubber 1
Fig. 4-16
56200-
0416B
Guide Starting
Rope
1
Fig. 4-17 56200-0417 Screw 1
Fig. 4-20 56200-0420
Starter Cable
Handle
1
Fig. 4-21
56200-
0421B
Screw 1
Fig. 4-22 56200-0422 Bolt 2
Fig. 4-23 56200-0423 Nut 6
Fig. 4-24
56200-
0424B
Oil Access
Cover
1
Fig. 4-25
56200-
0425B
Bolt 1
Fig. 4-26
56200-
0426B
Lever 1
Fig. 4-27
56200-
0427B
Nut 1

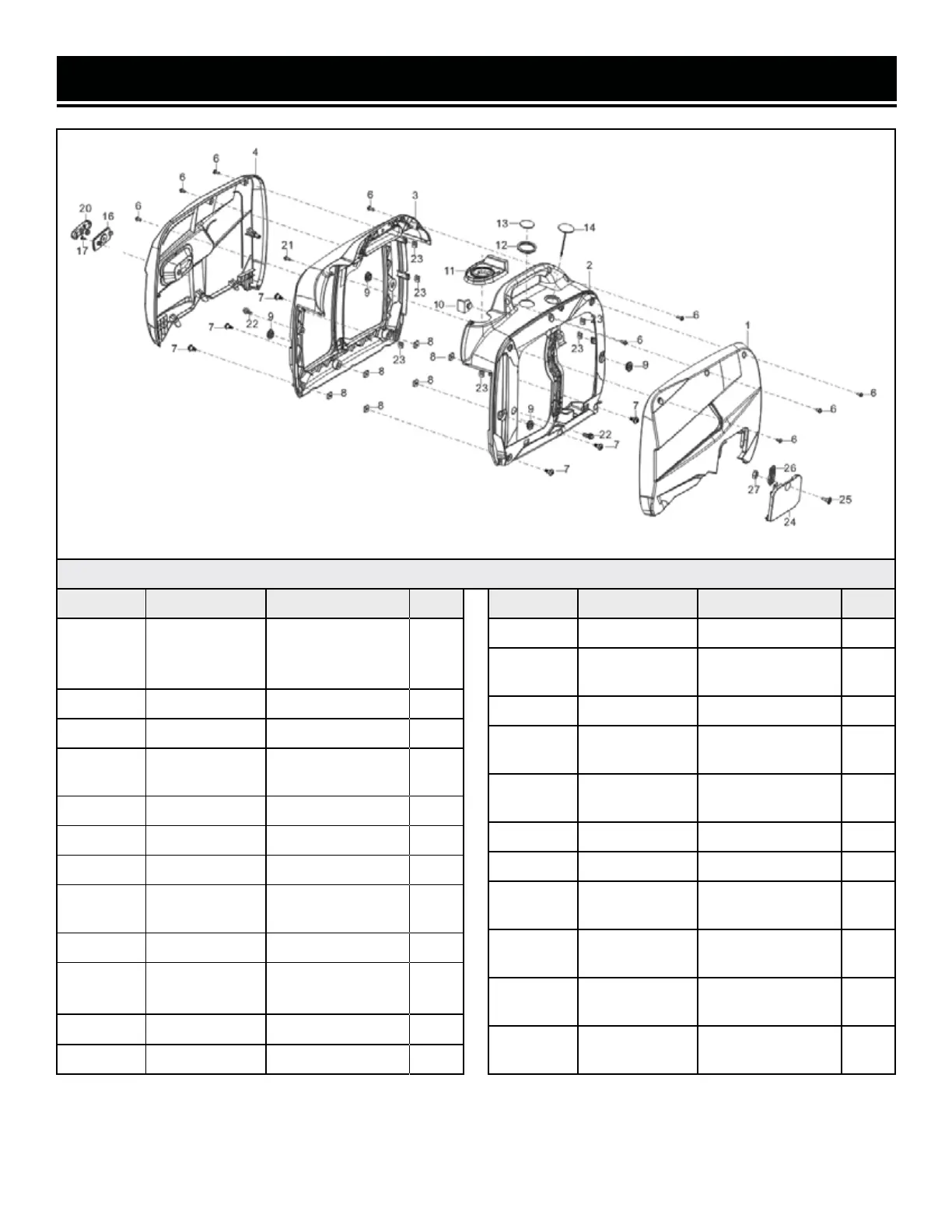

FIG. 4 - SIDE CASING
EXPLODED VIEW & PARTS LIST
