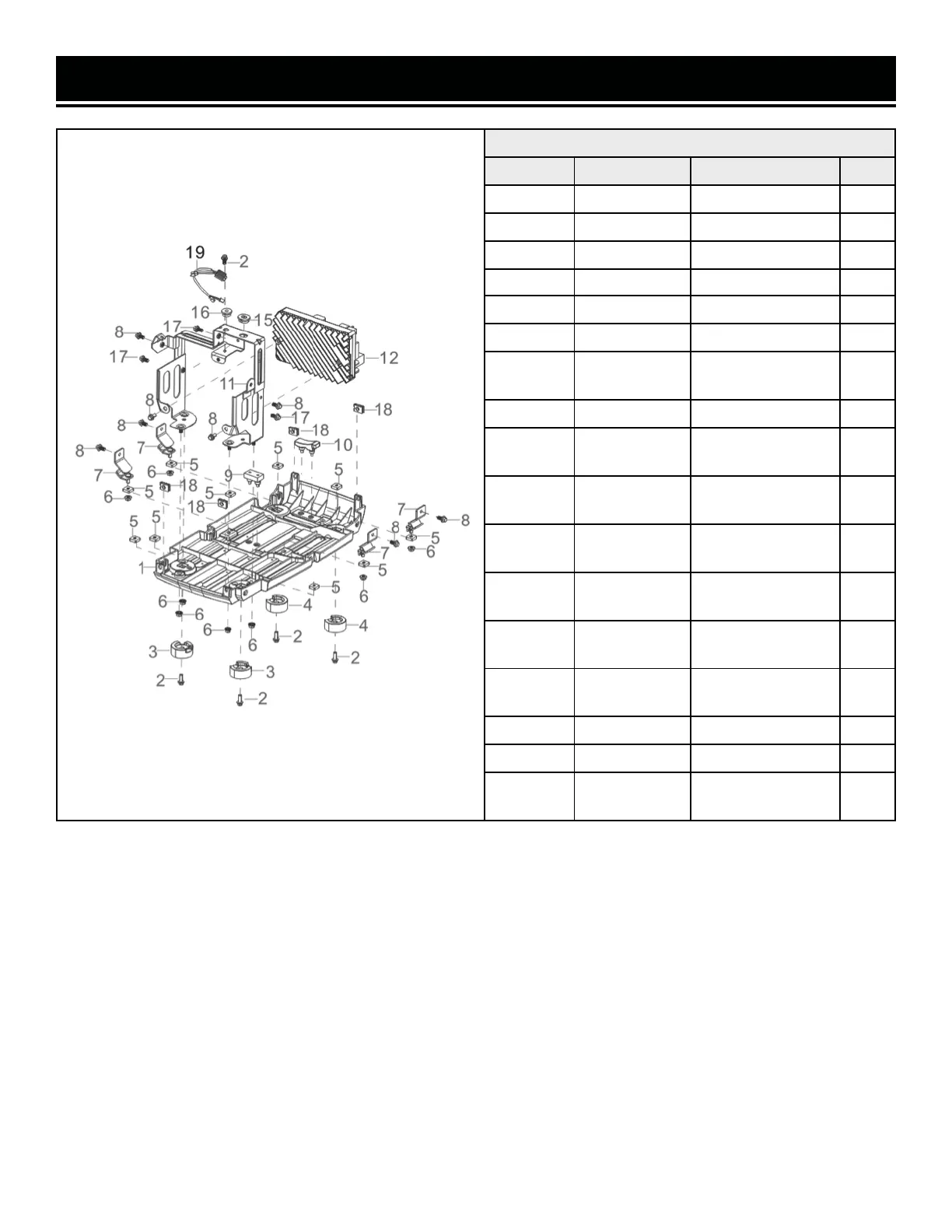

FIG. 5 - BASE PLATE / INVERTER

NO. PART NO. DESCRIPTION QTY.

Fig. 5-1 56200-0501 Plate, Bottom 1

Fig. 5-2 56200-0502 Bolt 5

Fig. 5-3 56200-0503 Seat, Frame 2

Fig. 5-4 56200-0504 Seat, Frame 2

Fig. 5-5 56200-0505 Nut 10

Fig. 5-6 56200-0506 Nut 8

Fig. 5-7 56200-0507

Cushion, Engine

Frame

Fig. 5-8 56200-0508 Bolt 8

Fig. 5-9 56200-0509

Bracket, Cush

ion Rubber

Fig. 5-10 56200-0510

Bracket, Cush

ion Rubber

Fig. 5-11 56200-0511

Support, In

verter

Fig. 5-12

56225i-

0512

Inverter 1

Fig. 5-15 56200-0515

Sleeve, Fuel

Tank Rubber

Fig. 5-16 56200-0516

Sleeve, Fuel

Tank Rubber

Fig. 5-17 56200-0517 Bolt 3

Fig. 5-18 56200-0518 Nut 4

Fig. 5-19

56225i-

0519

Voltage Regula

tor

EXPLODED VIEW & PARTS LIST

Wen 56225i Instruction Manual
