NO. PART NO. DESCRIPTION QTY.
Fig. 6-1 56200-0601B Screw 4
Fig. 6-3 56225i-0603
Eco-Mode Idle
Switch
1
Fig. 6-4 56200-0604
Grounding
Terminal
1
Fig. 6-5 56200-0605
120 Volt Duplex
Receptacle
1
Fig. 6-6 56200-0607B
Indicator Light
Seat
1
Fig. 6-7 56200-0606B Indicator Light 3
Fig. 6-9 56225i-0609
Control Panel Wir-
ing
1
Fig. 6-11 56225i-0611
Control Panel
Assembly
1
Fig. 6-12 56225i-0612
Washer and
Screw, M5x16
4
Fig. 6-14 56200-0614 Seat, Panel 1
Fig. 6-15 56200-0615 Screw 3
Fig. 6-16 56200-0617 Bolt 1
Fig. 6-17 56225i-0617 Control Box 1
Fig. 6-18 56225i-0618 Screw M4x16 1
Fig. 6-19 56225i-0619 Knob 1
No. Part No. Description Qty.
Fig. 6-20 56200-0620 Handle Choke 1
Fig. 6-21 56200-0621B Cover Plate 1
Fig. 6-23 56200-0623 Ball, Steel 1
Fig. 6-24 56200-0624B
Spring, Stopper
Adjusting
1
Fig. 6-26 56225i-0626
Bracket, Fuel
Cock
1
Fig. 6-27 56225i-0627 Screw M4.2x16 2
Fig. 6-28 56200-0628 Cock Assy, Fuel 1
Fig. 6-29 56200-0629 Bolt 1
Fig. 6-31 56200-0631 Tube, Fuel 1
Fig. 6-32 56200-0632 Collar 2
Fig. 6-34 56200-0634 Collar 1
Fig. 6-36 56200-0636 Band 2
Fig. 6-37 56200-0637 Jacket, Rubber 2
Fig. 6-38 56225i-0638 USB Charger 1
Fig. 6-40 56200-0640 Parallel Kit Socket 1
Fig. 6-41 56200-0641 Parallel Kit Socket 1
Fig. 6-44 56225i-0644
Manual Shut Off
Switch
1
Fig. 6-45 56225i-0645 Reset Button 1

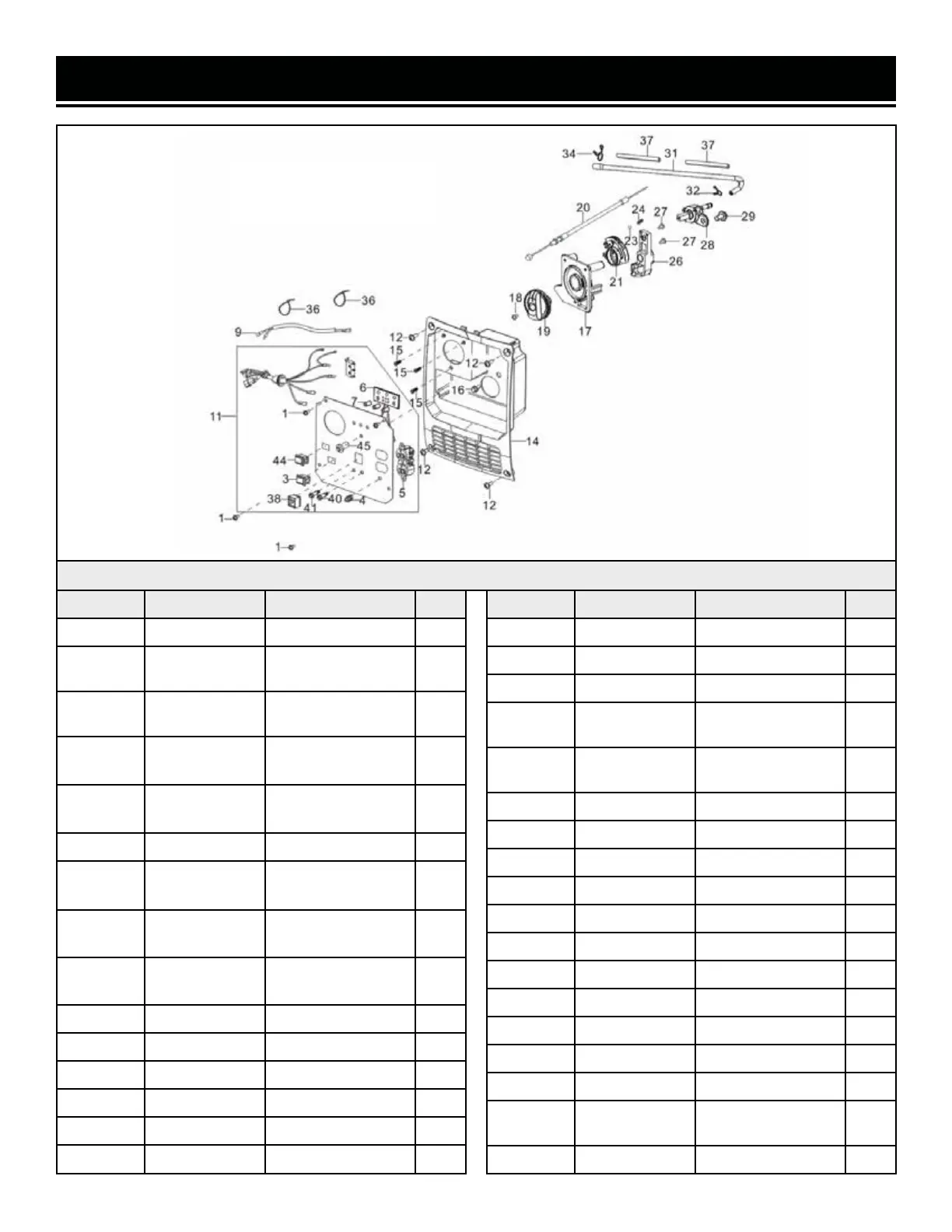

FIG. 6 - CONTROL PANEL
EXPLODED VIEW & PARTS LIST
