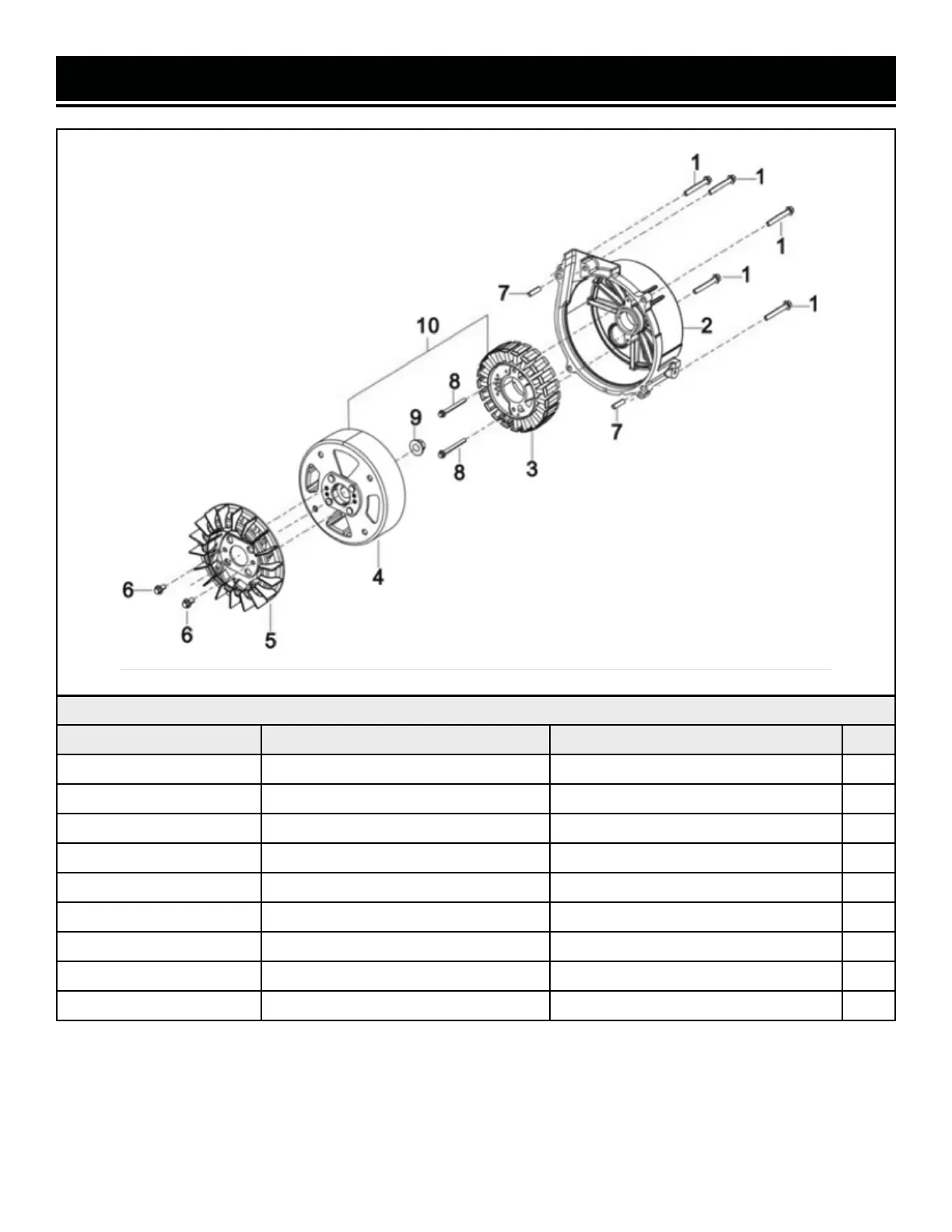

FIG. 7 - ROTOR / STATOR ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
Fig. 7-1 56200-0701 Bolt 5
Fig. 7-2 56200-0702 Shroud, Motor 1
Fig. 7-3 56225i-0703 Stator Assembly 1
Fig. 7-4 56200-0704 Rotor Assembly 1
Fig. 7-5 56200-0705 Impeller 1
Fig. 7-6 56200-0706 Bolt 2
Fig. 7-7 56200-0707 Pin 2
Fig. 7-8 56200-0708 Bolt 2
Fig. 7-9 56200-0709 Nut 1
EXPLODED VIEW & PARTS LIST
