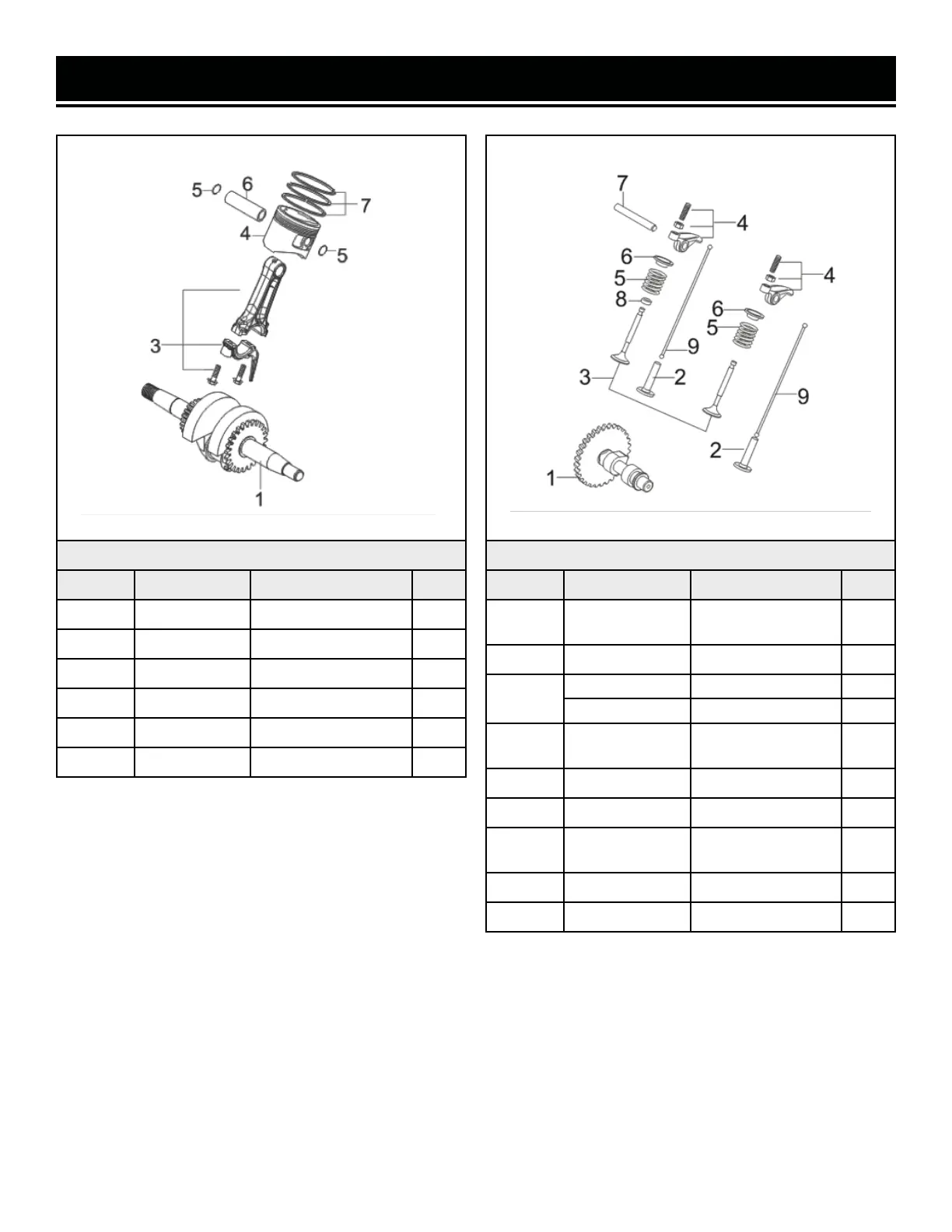

FIG. 10 - PISTON RING SET & CRANKSHAFT

NO. PART NO. DESCRIPTION QTY.

Fig.10-1 56200-1001 Crankshaft Assy. 1

Fig.10-2 56225i-1002 Rod, Connecting 1

Fig.10-3 56200-1003 Piston 1

Fig.10-4 56200-1004 Clip, Piston Pin 2

Fig.10-5 56200-1005 Pin, Piston 1

Fig.10-6 56200-1007 Ring Assy, Piston 1

FIG. 11 - VALVE TRAIN / CAMSHAFT ASSEMBLY

NO. PART NO. DESCRIPTION QTY.

Fig.11-1 56225i-1101

Camshaft

Assembly

Fig.11-2 56200-1103 Tappet, Valve 2

Fig.11-3

56200-1104.1

Inner Valve 1

56200-1104.2 Outer Valve

Fig.11-4 56200-1105

Rocker Subas-

sembly, Valve

Fig.11-5 56200-1106 Spring, Valve 2

Fig.11-6 56200-1107 Seat, Valve Spring 2

Fig.11-7 56200-1112

Shaft, Valve

Rocker

Fig.11-8 56200-1113 Guide, Seal 1

Fig.11-9 56200-1114 Lifter, Valve 2

EXPLODED VIEW & PARTS LIST
