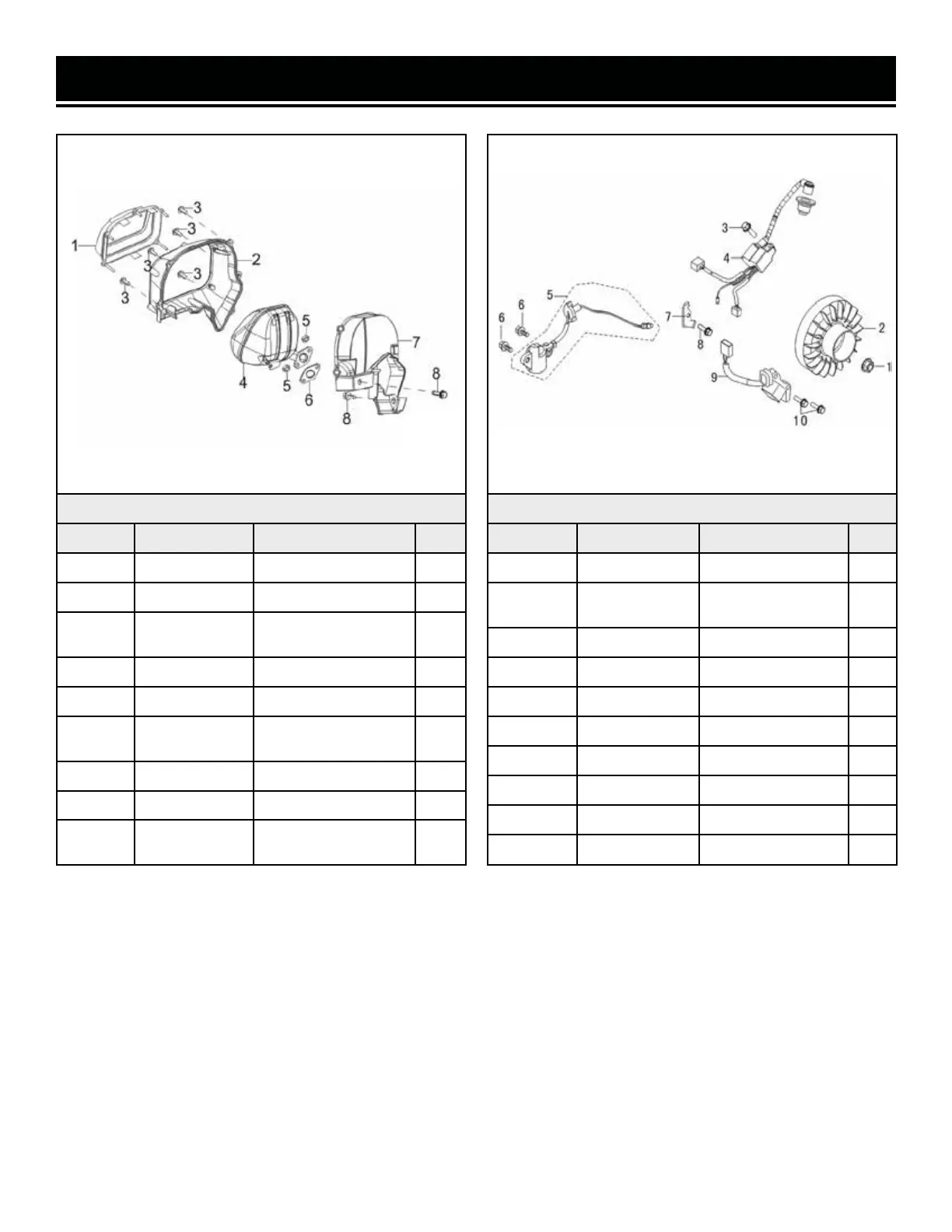

FIG. 16 - FLYWHEEL/IGNITION COIL

NO. PART NO. DESCRIPTION QTY.

Fig.16-1 56200-1601 Nut, Flywheel 1

Fig.16-2 56200-1602

Flywheel

Subassembly

Fig.16-3 56200-1603 Bolt 1

Fig.16-4 56225i-1604 Igniter 1

Fig.16-5 56200-1605 Sensor, Engine Oil 1

Fig.16-6 56200-1606 Bolt 2

Fig.16-7 56200-1607 Clamp 1

Fig.16-8 56200-1608 Bolt 1

Fig.16-9 56225i-1609 Ignition Coil 1

Fig.16-10 56200-1610 Bolt 2

FIG. 15 - MUFFLER ASSEMBLY

NO. PART NO. DESCRIPTION QTY.

Fig.15-1 56200-1501 Cover, Muffler Side 1

Fig.15-2 56200-1502 Shroud Muffler 1

Fig.15-3 56200-1503

Screw Cross

Groove Pan

Fig.15-4 56200-1504 Muffler Assy. 1

Fig.15-5 56200-1505 Nut 2

Fig.15-6 56200-1506

Gasket, Exhaust

Outlet

Fig.15-7 56200-1507 Muffler Shield 1

Fig.15-8 56200-1508B Bolt 2

Fig.15-9 56225i-1509

Spark Arrestor

(Not Shown)

NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer ser-

vice at (800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal

use are not covered by the two-year warranty.

EXPLODED VIEW & PARTS LIST
