Wen 56235i User Manual

ECO-MODE
ON OFF
NEMA 5-20R
AC 120V
OUTPUT OVERLOAD OIL
RESET
DC 12V
1A
2.1A
DC 5V USB
USB
PARALLEL CONNECT
CIRCUIT
BREAKER
CHOKE
START
RUN
POWER SWITCH
OFF FUEL
OFF
ON
NEUTRAL FLOATING

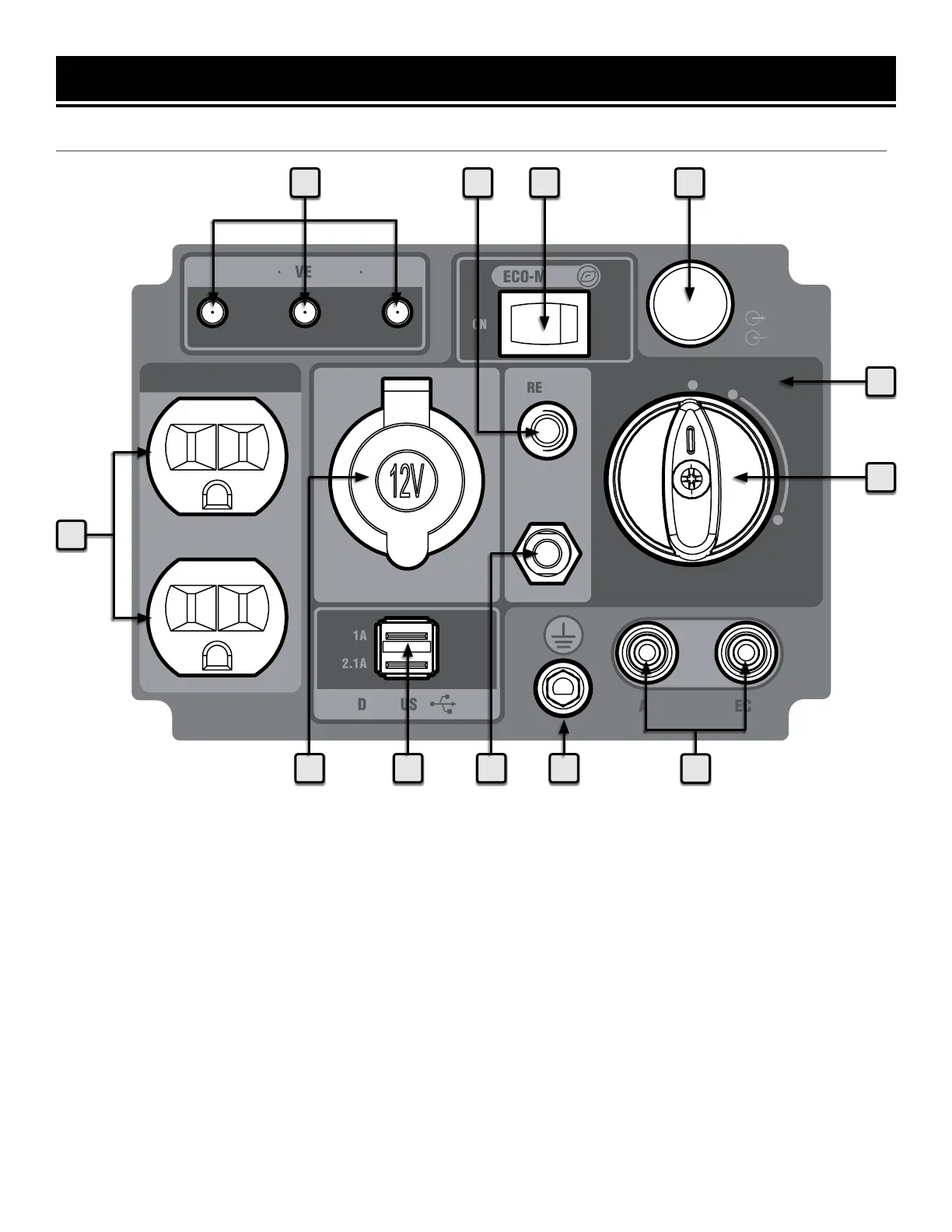

KNOW YOUR INVERTER GENERATOR
CONTROL PANEL
2
3 4
8
5 6
1. Indicator Lights
Output, Overload, & Low Oil
2. AC 120V NEMA 5-20R Duplex Receptacles
Standard household outlets provide 120V 60Hz power.
3. 12V DC Outlet
Cigarette-style outlet provides DC power.
4. 5V USB Port
1A & 2.1A for charging various electronic devices.
5. Circuit Breaker
Press to reset.
6. Grounding Nut
Ground the generator to reduce the risk of electric shock.
Refer to “Ground the Generator” section on page 14.
1
7
9
101112
7. Parallel Connection
Connect to share wattage between inverter generators.
8. On / Off Switch
Used to turn on or shut down the generator.
9. Fuel Off
Turn the ON / OFF Switch to this position to burn off the
fuel in the carburetor. See p. 22.
10. Choke Lever
Used to start the engine.
11. Eco-Mode Switch
Maximizes fuel economy & run time.
12. Reset Button
Press to reset the circuit incase of overload.

Wen 56235i Specifications

General

Model	Wen 56235i
Category	Portable Generator
Running Watts	1900W
Starting Watts	2350W
Engine	79.7cc 4-stroke OHV
Fuel Type	Gasoline
Tank Capacity	1 Gallon
Noise Level	51 dB
Inverter	Yes
Starting System	Recoil
Rated Voltage	120V
Rated Frequency	60 Hz
Max Output	2350W
Weight	39 pounds
Outlets	1x 12V DC
DC Output	12V, 8.3A
Run Time at 50% Load	6 hours
