Device Requirements
Max. Cord Length (ft) by Wire Gauge
Amps Watts (120V) Watts (240V) #8 wire #10 wire #12 wire #14 wire #16 wire
2.5 300 600 NR NR NR 375 250
5 600 1200 NR NR 300 200 125
7.5 900 1800 NR 350 200 125 100
10 1200 2400 NR 250 150 100 50
15 1800 3600 NR 150 100 65 NR
20 2400 4800 175 125 75 50 NR
25 3000 6000 150 100 60 NR NR
30 3600 7200 125 65 NR NR NR
40 4800 9600 90 NR NR NR NR
CAUTION: Do not connect 50Hz loads to the generator.
SOME NOTES ABOUT POWER CORDS
Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords,
allow for a slightly higher rated wattage requirement by the electrical device.
USING THE GENERATOR
*NR = Not Recommended
If an overload occurs, shut down the generator. Unplug all electrical devices and wait five minutes. Then, start the
unit back up again to get power back.
120V Duplex
Receptacle
Ground
Voltage
Selector

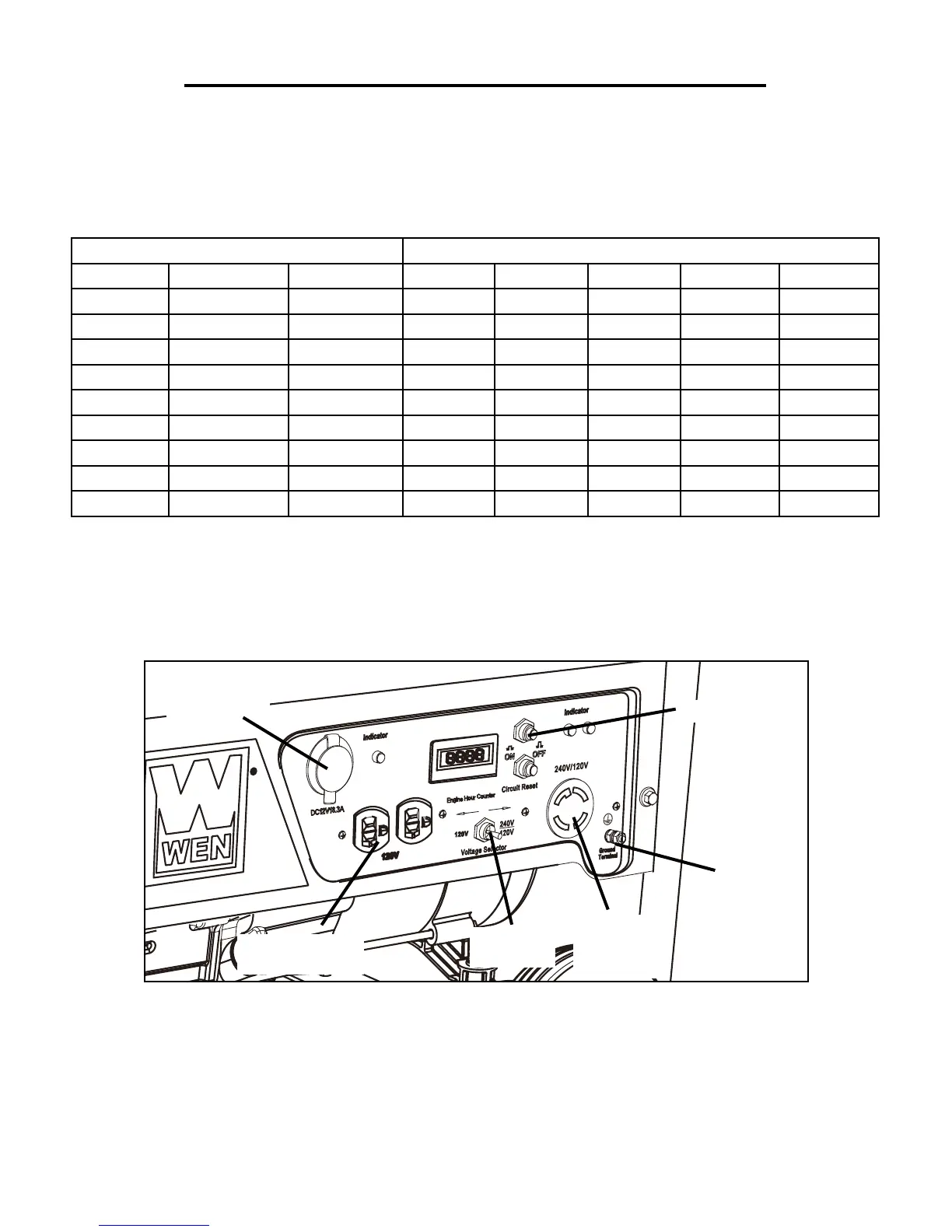

Fig. 8 - Control Panel
120V/240V
Receptacle
(L14-30)
DC 12V/8.3A
Receptacle
Circuit Breaker
