MAINTENANCE
Fig. 12
FUEL FILTER CUP CLEANING
The fuel filter cup is a small well underneath the fuel valve. It helps to trap dirt and water that may be in the fuel
tank before it can enter the engine. To clean the fuel filter cup:
1. Turn the fuel valve to the “OFF” position (Fig. 13).
2. Unscrew the fuel filter cup from the fuel valve using a wrench. Turn the valve towards you and unscrew it.
3. Clean the cup of all sediments using a rag or brush.
4. Reinstall the fuel filter cup.
Cover
Bolt
AIR CLEANER MAINTENANCE
Routine maintenance of the air cleaner helps maintain
proper airflow to the carburetor. Occasionally check that
the air cleaner is free of excessive dirt. Refer to Recom-
mended Maintenance Schedule in Fig. 9. For air cleaner
detail, refer to Fig. 12.
1. Unscrew the cover bolt, then remove the air cleaner
cover.
2. Remove the air cleaner element from the casing (the
21

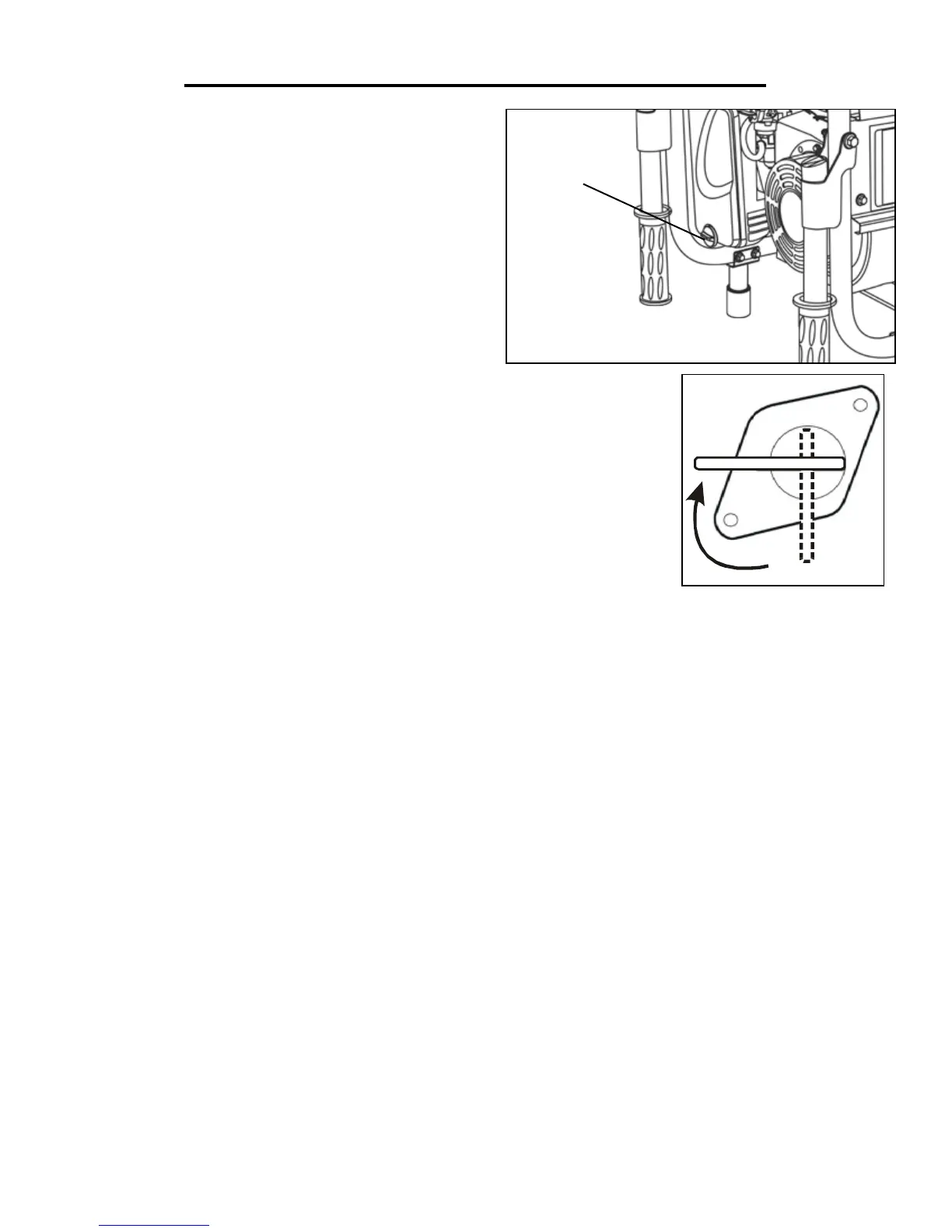

Fig. 13 - Fuel Valve
OFF
ON
sponge-like filter inside).
3. Check and clean the spongy filter. Replace with a new one if the element has
been damaged. Good filters can be washed in soapy water, dried and reused.
4. Wipe off excessive oil from the air cleaner case. Small amounts of oil in the ele-
ment is normal and necessary for the engine to work properly.
5. Reinstall the air cleaner element and cover.
CAUTION: running the engine with dirty, damaged or missing air cleaner element
will cause the engine to wear out prematurely.
