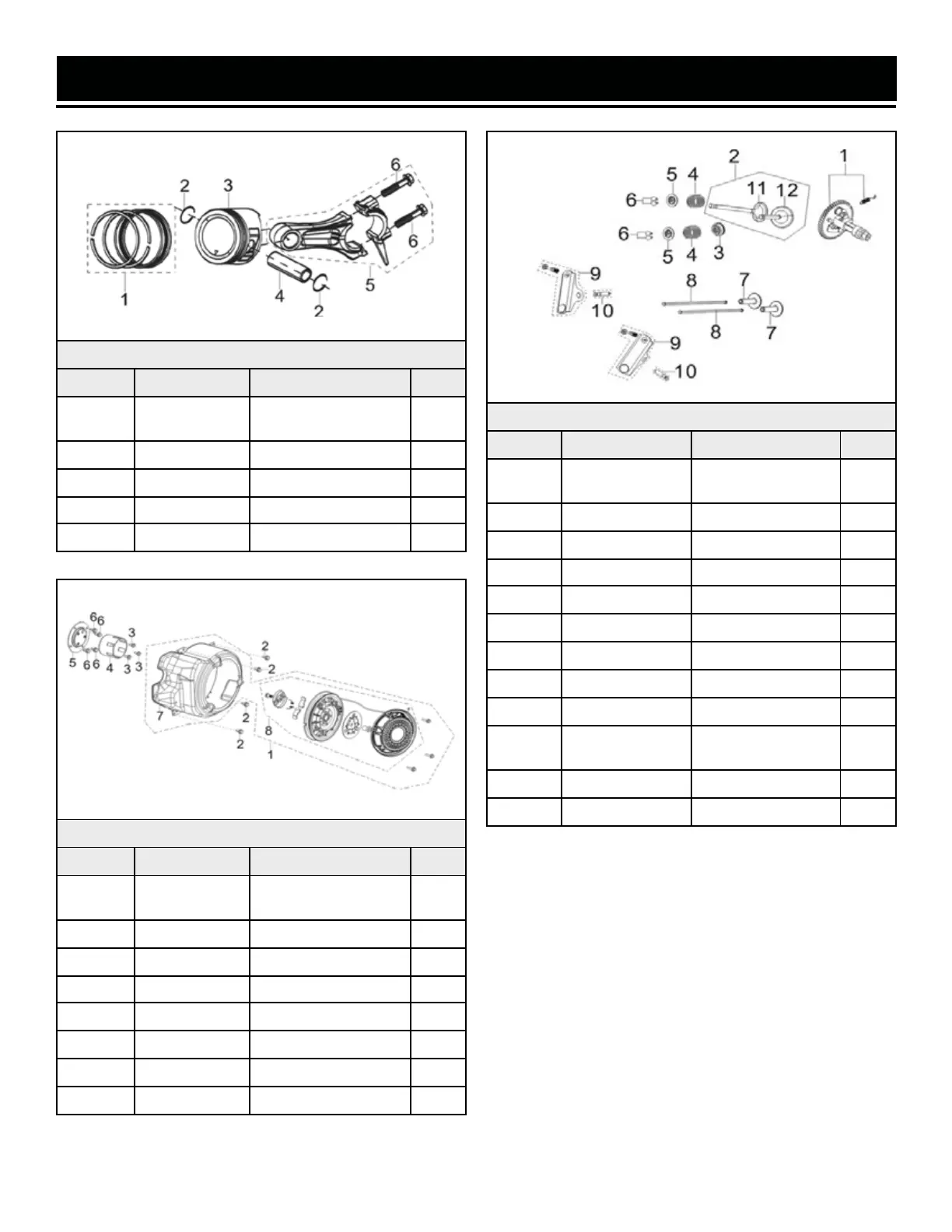

Fig. 5 - Piston Ring Set & Connecting Rod
No. Part No. Description Qty.
5-1 56310i-0501
Piston Ring
Assembly
1
5-2 56310i-0505 Piston Pin Clip 2
5-3 56380i-0503 Piston 1
5-4 56310i-0504 Piston Pin 1
5-5 56380i-0505 Connecting Rod 1
Fig. 6 - Valve Train & Camshaft Subassembly
No. Part No. Description Qty.
6-1 56380i-0601B
Camshaft
Assembly
1
6-2 56380i-0602 Valve Set 1
6-12 56380i-0602.1 Intake Valve 1
6-11 56380i-0602.2 Exhaust Valve 1
6-3 56310i-0603 Seal Guide 1
6-4 56310i-0604 Valve Spring 2
6-5 56380i-0605 Valve Spring Seat 2
6-6 56310i-0606 Valve Lock Clamp 4
6-7 56310i-0607 Valve Tappet 2
6-8 56380i-0608
Valve Lifter
Subassembly
2
6-9 56380i-0609 Valve Rocker Arm 2
6-10 56380i-0610 Rocker Shaft 2
Fig. 7 - Recoil Starter
No. Part No. Description Qty.
7-1 56380i-0701
Recoil Starter
Assembly
1
7-2 56200-1202 Bolt 4
7-3 56200-0706 Bolt 3
7-4 56380i-0704 Starter Pulley 1
7-5 56380i-0705 Starter Cup Seat 1
7-6 56200-0502 Bolt 4
7-7 56380i-0707 Shroud 1
7-8 56380i-0708 Recoil Starter 1
EXPLODED VIEW & PARTS LIST
41
