Wen 56455i User Manual

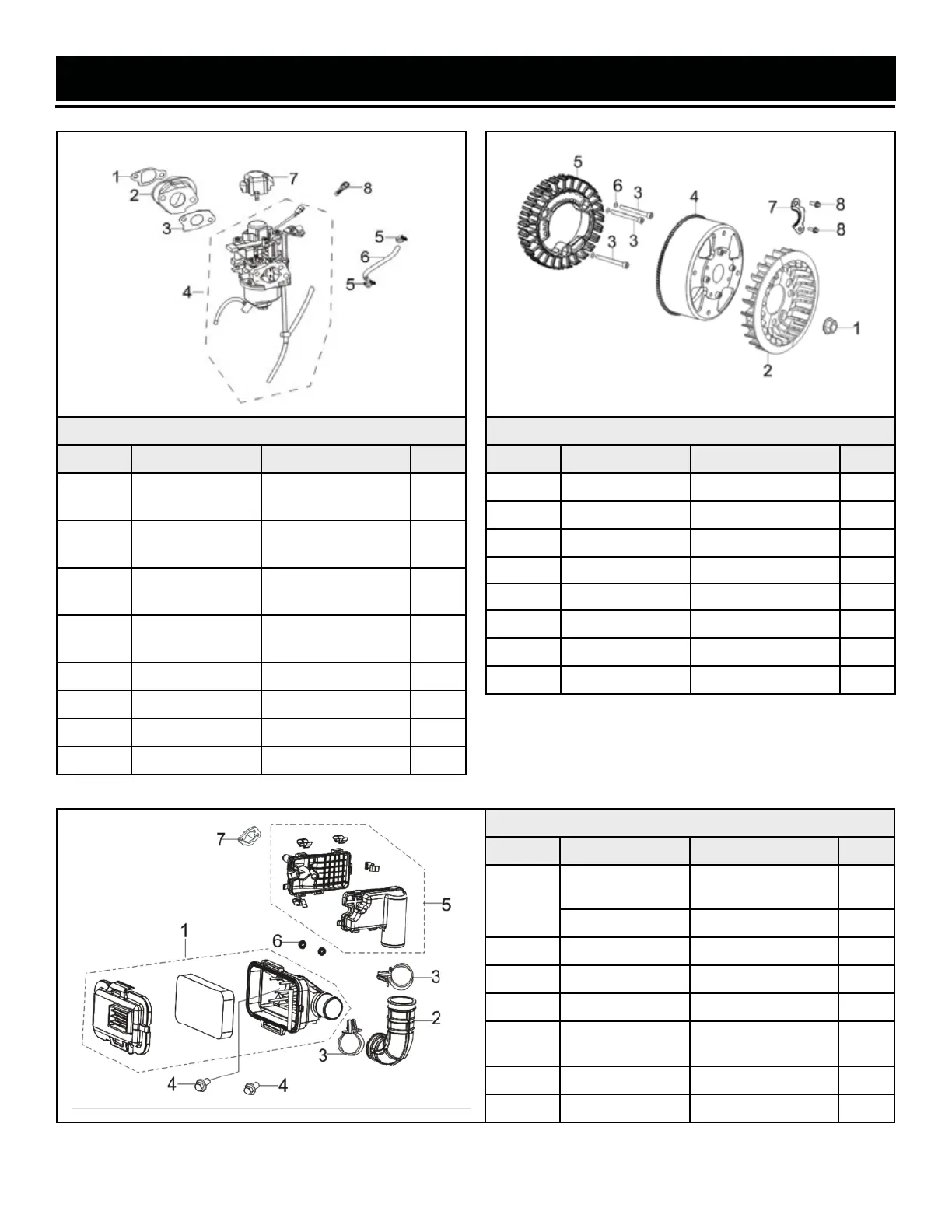

EXPLODED VIEW & PARTS LIST
Fig. 8 - Carburetor Assembly
No. Part No. Description Qty.
8-1 56380i-0801
Carburetor
Insulator Gasket
1
8-2 56380i-0802
Carburetor
Insulator Plate
1
8-3 56380i-0803
Carburetor
Gasket
1
8-4 56380i-0804
Carburetor
Assembly
1
8-5 56380i-0805 Clamp 2
8-6 56380i-0806 Fuel Tube 1
8-7 56200-0103 Cap 1
8-8 56200-1305 Fuel Strainer 1
Fig. 9 - Rotor/Stator Assembly
No. Part No. Description Qty.
9-1 56310i-1101 Flywheel Nut 1
9-2 56380i-0902 Impeller 1
9-3 56310i-1103 Bolt 3
9-4 56380i-0904 Rotor 1
9-5 56380i-0905 Stator 1
9-6 56380i-0906 Flat Washer 3
9-7 56380i-0907 Wiring Clamp 1
9-8 56310i-0207 Bolt 2
Fig. 10 - Air Filter Assembly
No. Part No. Description Qty.
10-1
56380i-1001B
Air Filter
Assembly
1
56380i-1001.1 Air Filter Element 1
10-2 56380i-1002 Intake Tube 1
10-3 56380i-1003 Intake Tube Clamp 2
10-4 56310i-1420 Bolt 2
10-5 56380i-1005
Secondary
Air Filter
1
10-6 56200-0506 Nut 2
10-7 56310i-0901 Air Filter Gasket 1
42
