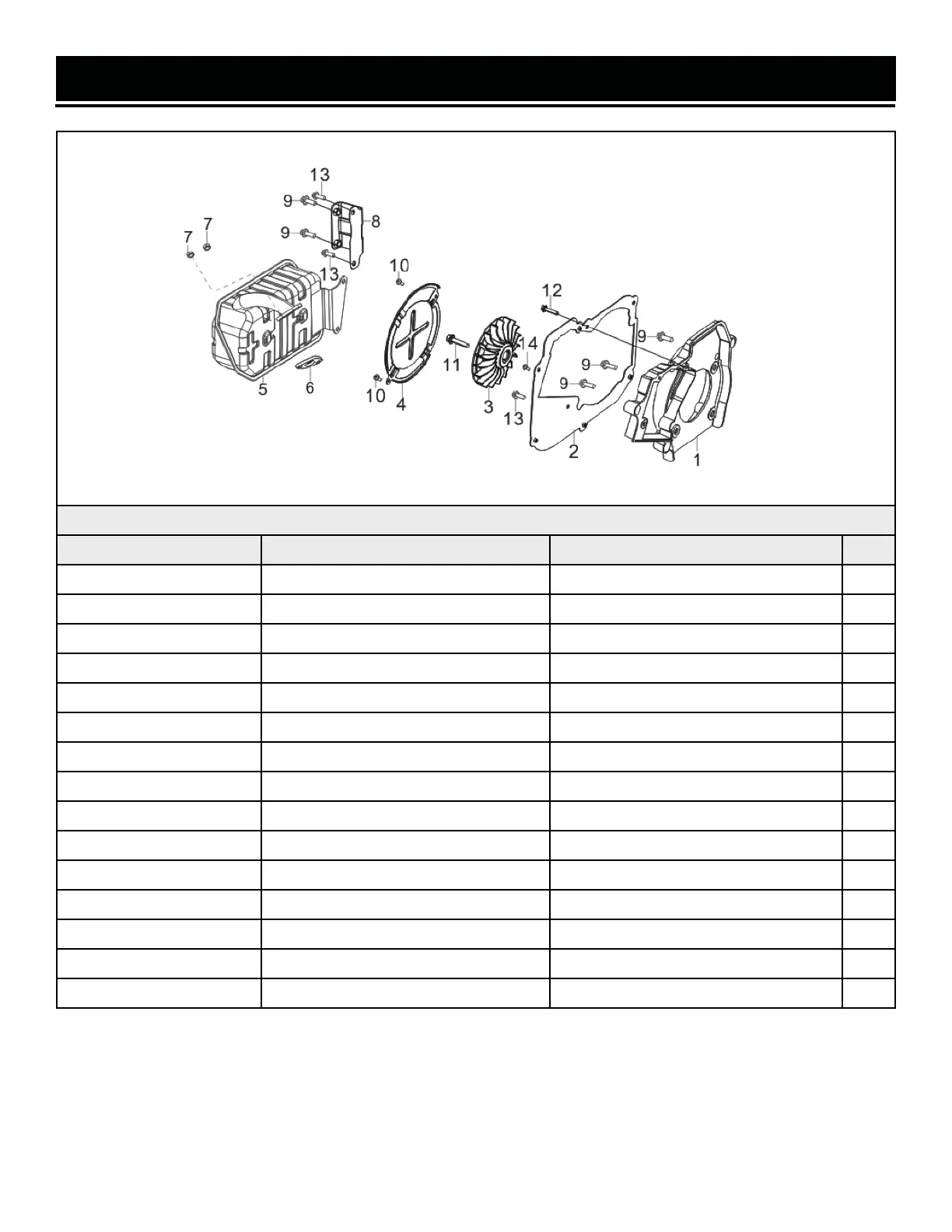

Fig. 11 - Muffler Assembly
No. Part No. Description Qty.
11-1 56380i-1101 Shroud 1
11-2 56380i-1102B Muffler Cover Support 1
11-3 56380i-1103 Impeller 1
11-4 56380i-1104 Muffler Insulation Plate 1
11-5 56380i-1105 Muffler Assembly 1
11-6 56380i-1106 Muffler Gasket 1
11-7 56310i-1010 Nut 2
11-8 56380i-1108 Muffler Bracket 1
11-9 56310i-1009 Bolt 5
11-10 56380i-1110 Bolt 2
11-11 56310i-1004 Bolt 1
11-12 56380i-1112 Bolt 1
11-13 56200-0508 Bolt 3
11-14 56380i-1114 Bolt 1
N/A 56380i-1115 Spark Arrestor 1
EXPLODED VIEW & PARTS LIST
