ACTUATING TOOL
WARNING: To reduce the risk of injury, always wear proper eye and hearing protection when oper-
ating this tool.
WARNING: A nail will fire each time the trigger is pressed as long as the contact trip remains acti-
vated which could result in inadvertent actuation.
1. Press the contact trip firmly against the work surface.
2. Press the trigger.
88
LOADING THE FASTENERS
CAUTION: Always connect the nailer to the air supply before load-
ing fasteners. Otherwise a misfire may occur.

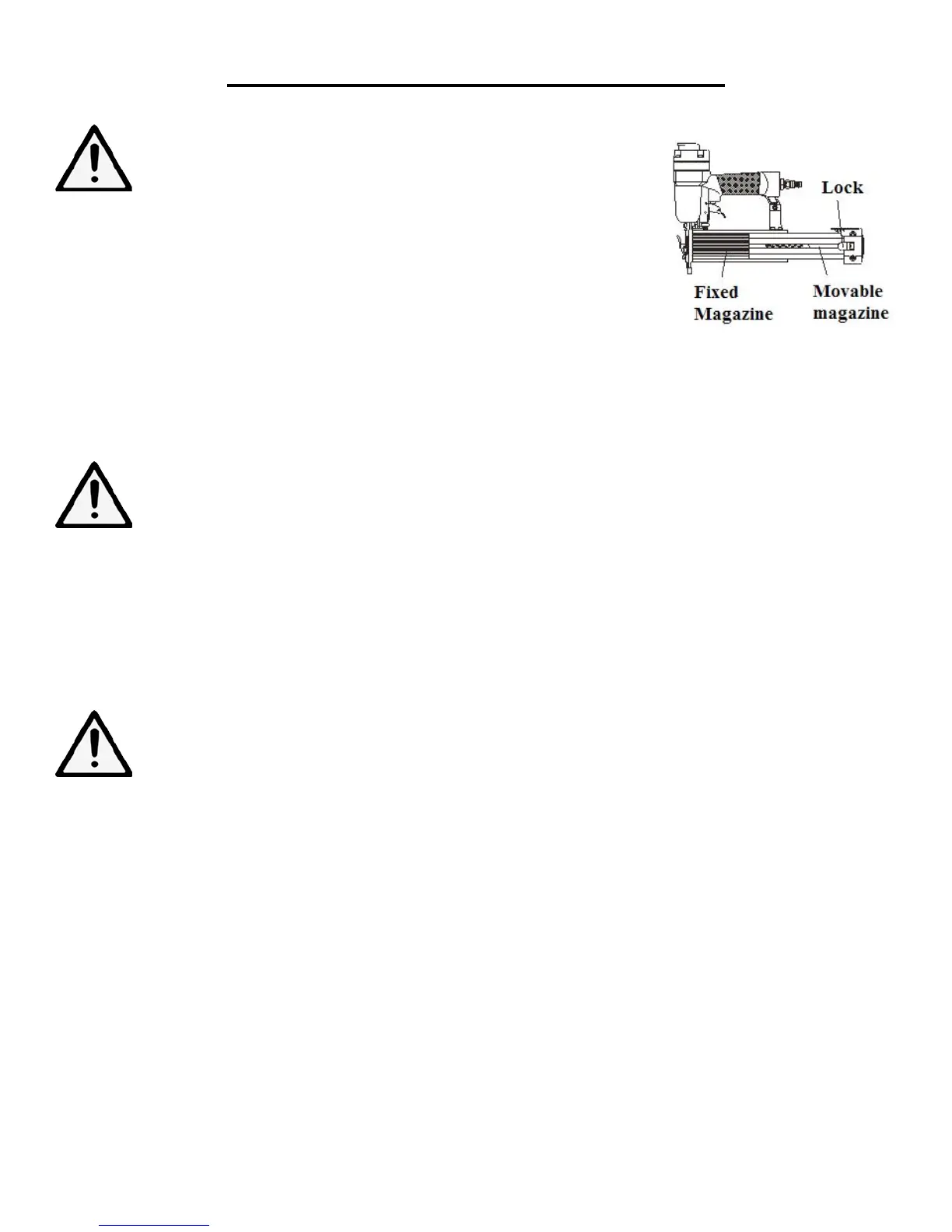

1. Depress the lock to release the movable magazine and pull the magazine out
fully.
2. Place a full clip of the specified type and size fasteners on the fixed magazine.
Up to 100 fasteners may be loaded in the magazine.
3. Push the movable magazine forward until it locks in place.
OPERATION
ADJUSTING THE DRIVING DEPTH
WARNING: To reduce risk of serious injury from accidental actuation when attempting to adjust
depth, always disconnect the air supply and avoid contact with trigger during adjustments.
1. To drive a nail shallower, rotate the depth setting wheel to the right.
2. To drive a nail deeper, rotate the depth setting wheel to the left.
To Next Page
