OPERATION
CLEAN AND INSPECT DAILY
CAUTION - Disconnect tool from air supply before performing any maintenance. Fix all problems before re-
turning to operation.
Add pneumatic tool oil into the oiler regularly to ensure the moving components are finely lubricated. Check the
filter of the compressor weekly and switch off the manual valve to drain water and contaminations out. Wipe the
tool clean. Blow the tool clean using high compressed air, then use non-flammable cleaning solutions to wipe ex-
terior of the tool as necessary. Do not soak tool with cleaning solutions. Such solutions can damage internal parts.
The exposed portion of the small piston rod and feed hook must be kept clean.
Inspect trigger and safety mechanism to assure system is complete and functional (no loose or missing parts, no
binding or sticking parts). Keep all screws tight. Loose screws can cause personal injury or damage the tool .Check
if there are worn and damaged parts. If there are, please replace said damaged parts immediately. If tool is used
without an in-line oiler, place 5 or 6 drops of air tool oil into the air inlet of the tool at the beginning of each work-
day.
MAINTENANCE

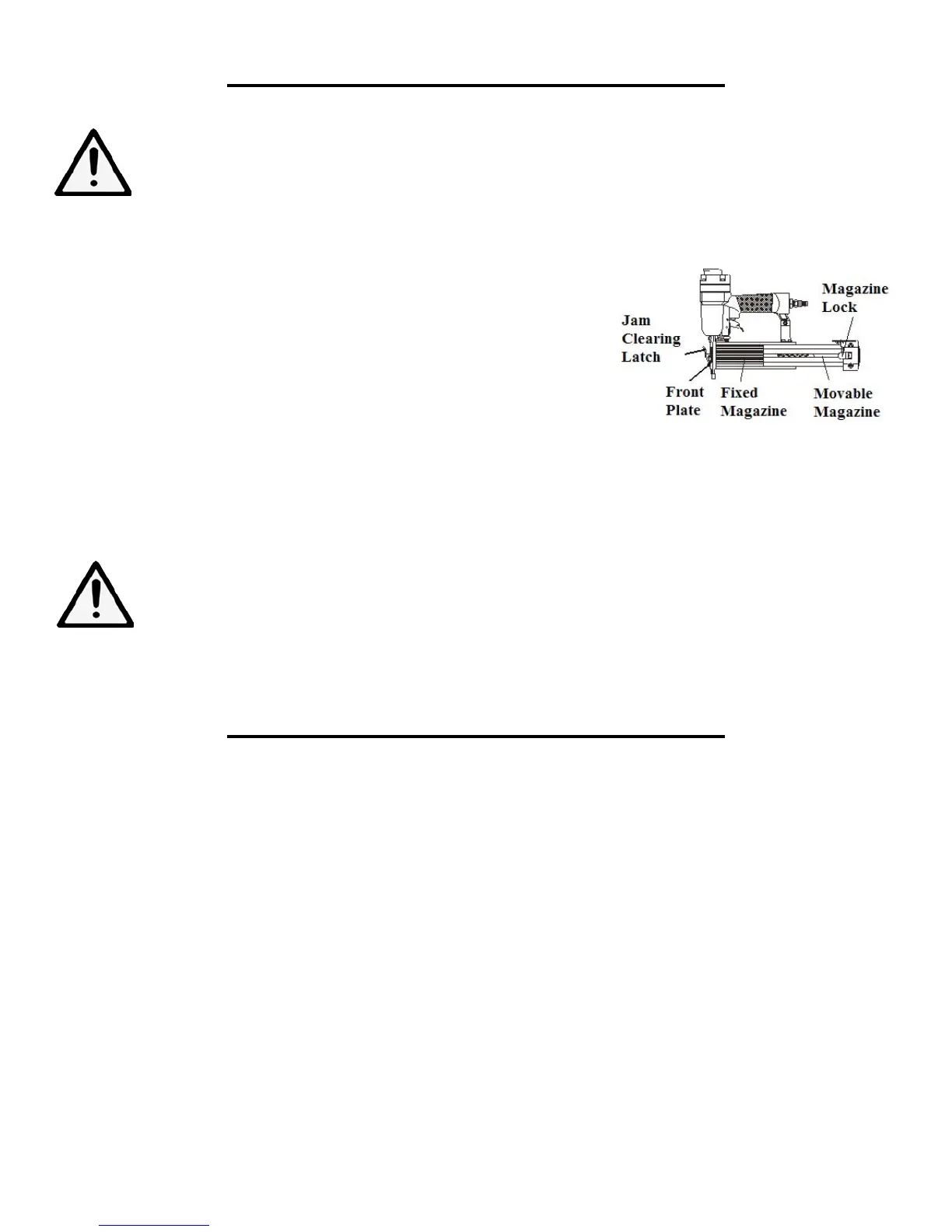

CLEARING JAMMED NAILS
WARNING: Disconnect the air line from the tool and remove all fasteners before removing jammed
nails to avoid personal injury.
If a nail becomes jammed in the nosepiece, keep the tool pointed away from yourself and others and follow these
steps:
1. Disconnect air supply from tool.
2. Press magazine lock to release movable magazine.
3. Push down jam clearing latch and pull up to open front plate.
4. Remove jammed nail, using pliers or other tools if necessary.
5. If the piston assembly is in the down position, insert screwdriver or other
rod into nosepiece and push the piston back in position.
6. Remove rod and close front plate.
7. Lift latch to secure front plate to nosepiece.
8. Make sure the trigger and contact trip move freely without sticking or binding.
9. Load the magazine.
10. Reattach nailer to air supply.
NOTE: If nails continue to jam in the nosepiece, have your tool serviced by an authorized WEN
service center.
