Wen 6510T User Manual

ASSEMBLY & ADJUSTMENTS

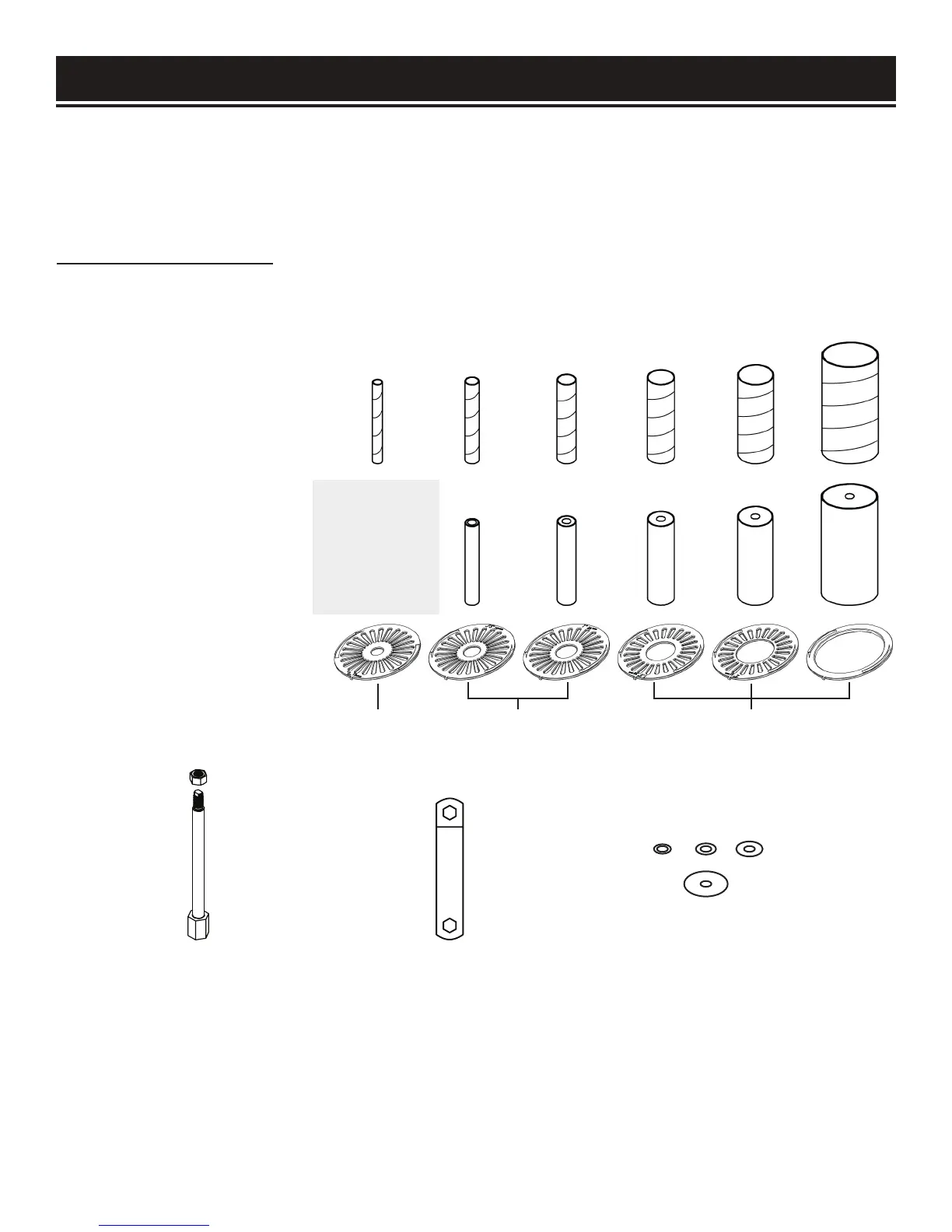

Before using the spindle sander, you must configure the machine by installing the appropriate sanding drum,
sanding sleeve, throat plate and spindle washer for your operation. Check your packing list against the dia-
gram below. If any part is damaged or missing, please contact our customer service at (800) 232-1195, M-F
8-5 CST or email us at techsupport@wenproducts.com.
Rubber Sanding Drums (5)
80-Grit Sanding Sleeves (6)
Spindle Washers
(3 Upper, 1 Lower)
Sanding Throat Plates (6)
Upper Spindle Washer Size
(13 mm)
1/2 ˝ / .5 ˝
(19 mm)
3/4 ˝ / .75 ˝
(26 mm)
1 ˝
(38 mm)
1-1/2"/ 1.5 ˝
(51 mm) (76 mm)
2"
3"
Spindle with
Lock Nut
Spindle Nut
Wrench
PACKING LIST
10
NOTE: 1/2˝
sanding
sleeve fits
directly on
the spindle.
Small Medium Large
S M L
The following replacement sanding sleeves can be purchased from wenproducts.com by searching their
respective model numbers: WEN 80-Grit Sanding Sleeves (model 6510SP80), WEN 120-Grit Sanding
Sleeves (model 6510SP120), WEN 150-Grit Sanding Sleeves (model 6510SP150), WEN 240-Grit Sanding
Sleeves (model 6510SP240), and the WEN Assorted Sanding Sleeve Combo Pack (model 6510SPC).
