Wen DF250i

EXPLODED VIEW & PARTS LIST

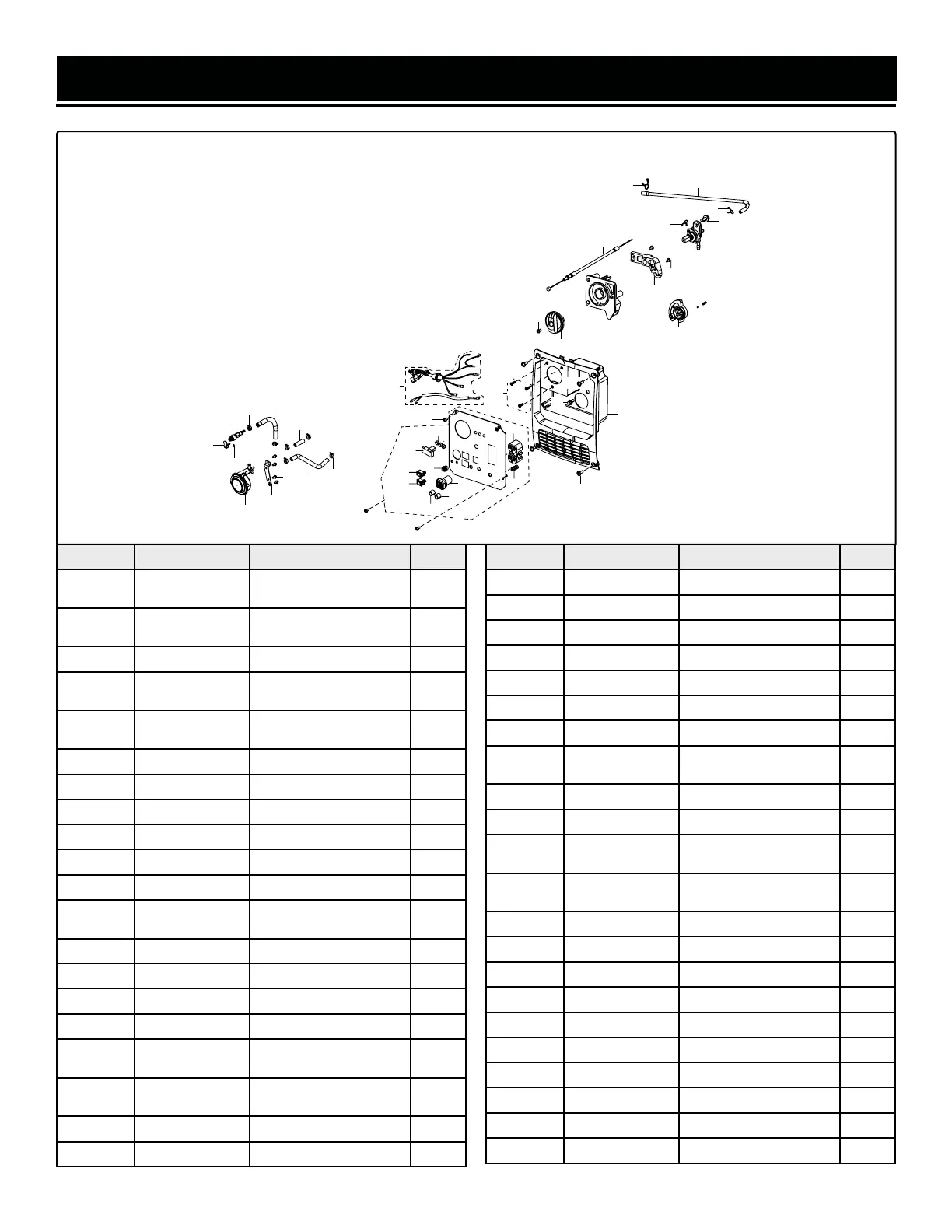

FIG. 11 - CONTROL PANEL SUBASSEMBLY
No. Part No. Description Qty.
11-1 DF250i-1101
Control Panel
Subassembly
1
11-2 56200-0601B
Self-Tapping Screw,
ST4x13
4
11-3 56200-0614 Panel Seat 1
11-4 56225i-0612
Screw with Washer,
M5x16
4
11-5 56225i-0618
Phillips Head Screw,
M4x16
1
11-6 56225i-0619 Knob 1
11-7 56225i-0617 Control Box 1
11-8 56200-0621B Cover Plate 1
11-9 56200-0623 Steel Ball 1
11-10 56200-0624B Stopper Adjusting Spring 1
11-11 56200-0620 Choke 1
11-12 56200-0628
Fuel Valve
Subassembly
1
11-13 56200-0629 Flanged Hex Bolt, M6x14 1
11-14 56200-0632 Collar 2
11-15 56200-0631 Fuel Tube 1
11-16 56200-0634 Collar 1
11-17 56225i-0609
Control Panel
Wiring Harness
1
11-18 56200-0615
Countersunk Self-Tapping
Screw, ST4x16
3
11-19 56200-0607B Indicator Light Seat 3
11-20 56200-0606B Indicator Light 1
No. Part No. Description Qty.
11-21 DF250i-1121 Manual Shut-down Switch 1
11-22 56225i-0603 Eco-Mode Switch 1
11-23 DF250i-1123 Reset Button 1
11-24 56225i-0638 USB Socket 1
11-25 56200-0640 Red Parallel Socket 1
11-26 56200-0641 Black Parallel Socket 1
11-27 56200-0604 Grounding Lug 1
11-28 56200-0605
NEMA 5-20R 120V AC
Duplex Outlet
1
11-29 56200-0617 Flanged Hex Bolt, M6x12 1
11-30 DF250i-1130 Fuel Valve Bracket 1
11-31 56225i-0627
Self-Tapping Screw,
ST4.2x16
2
11-32 DF250i-1132
Thin Hex Nut,
M14-1.5
1
11-33 DF250i-1133 LPG Hose 1 1
11-34 DF250i-1134 LPG Hose 2 1
11-35 DF250i-1135 LPG Hose 3 1
11-36 DF250i-1136 Hose Clamp 5
11-37 DF250i-1137 Phillips Head Screw, M4x8 1
11-38 DF250i-1138 Secondary LPG Regulator 1
11-39 DF400i-1437 Inlet Cap 1
11-40 DF400i-1436 LPG Inlet 1
11-41 DF250i-1141 Valve Mounting Bracket 1
11-42 DF250i-1142 Flanged Hex Bolt, M6x12 4
42
16
15
14
13
12
7
10
9
8
11
6
5
4
18
17
2
1
3
19
20
21
22
23
24
25
26
27
28
29
30
31
14
39
40
32
33
34
35
36
37
38
41
42
