Wen DF250i

EXPLODED VIEW & PARTS LIST

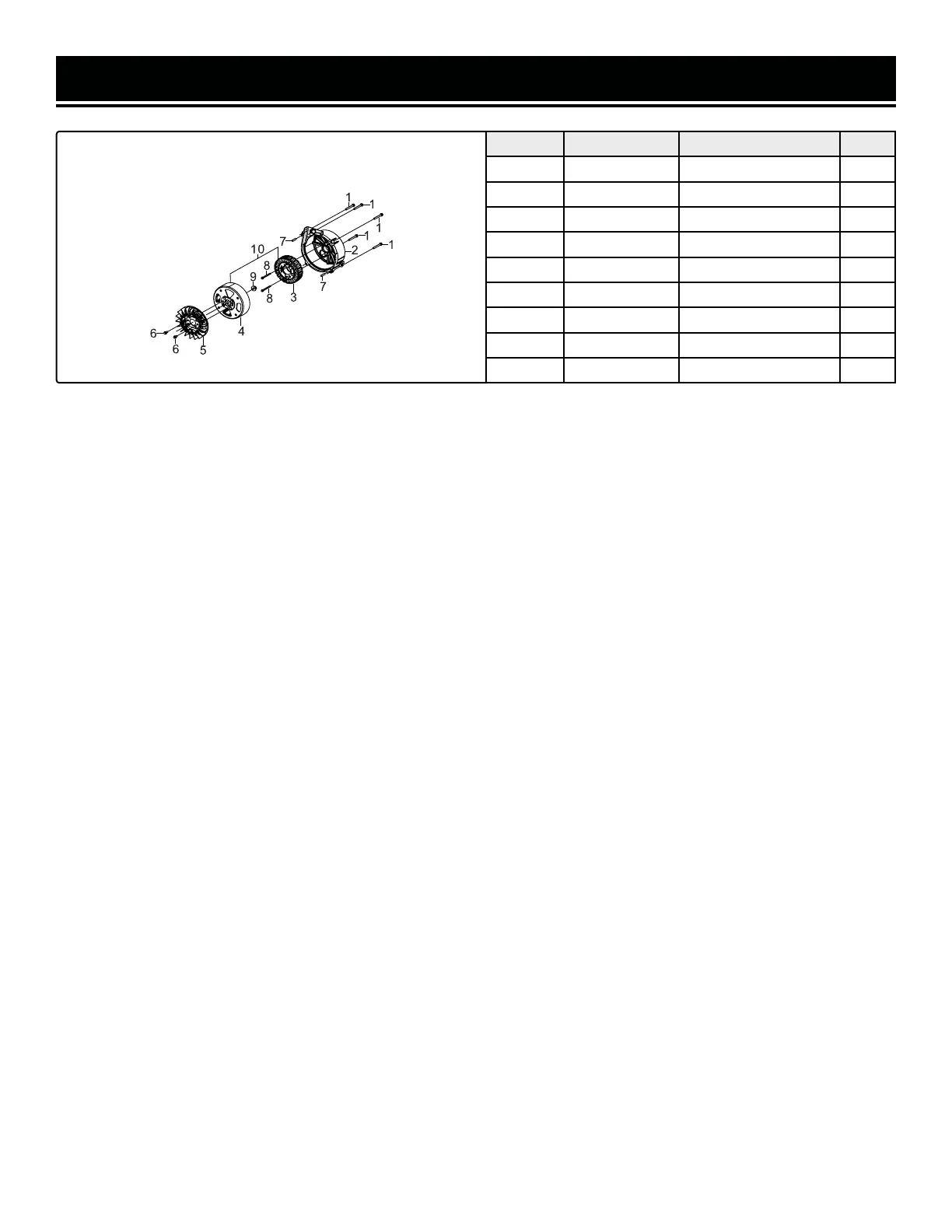

FIG. 12 - ROTOR & STATOR
No. Part No. Description Qty.
12-1 56200-0701 Bolt, M6x30 5
12-2 DF250i-1202 Alternator Shroud 1
12-3 DF250i-1203 Stator Subassembly 1
12-4 DF250i-1204 Rotor Subassembly 1
12-5 56200-0705 Impeller 1
12-6 56200-0706 Bolt, M6x10 2
12-7 56200-0707 Position Pin, Type A 2
12-8 56200-0708 Bolt, M5x35 2
12-9 56200-0709 Flanged Hex Nut, M12 1
