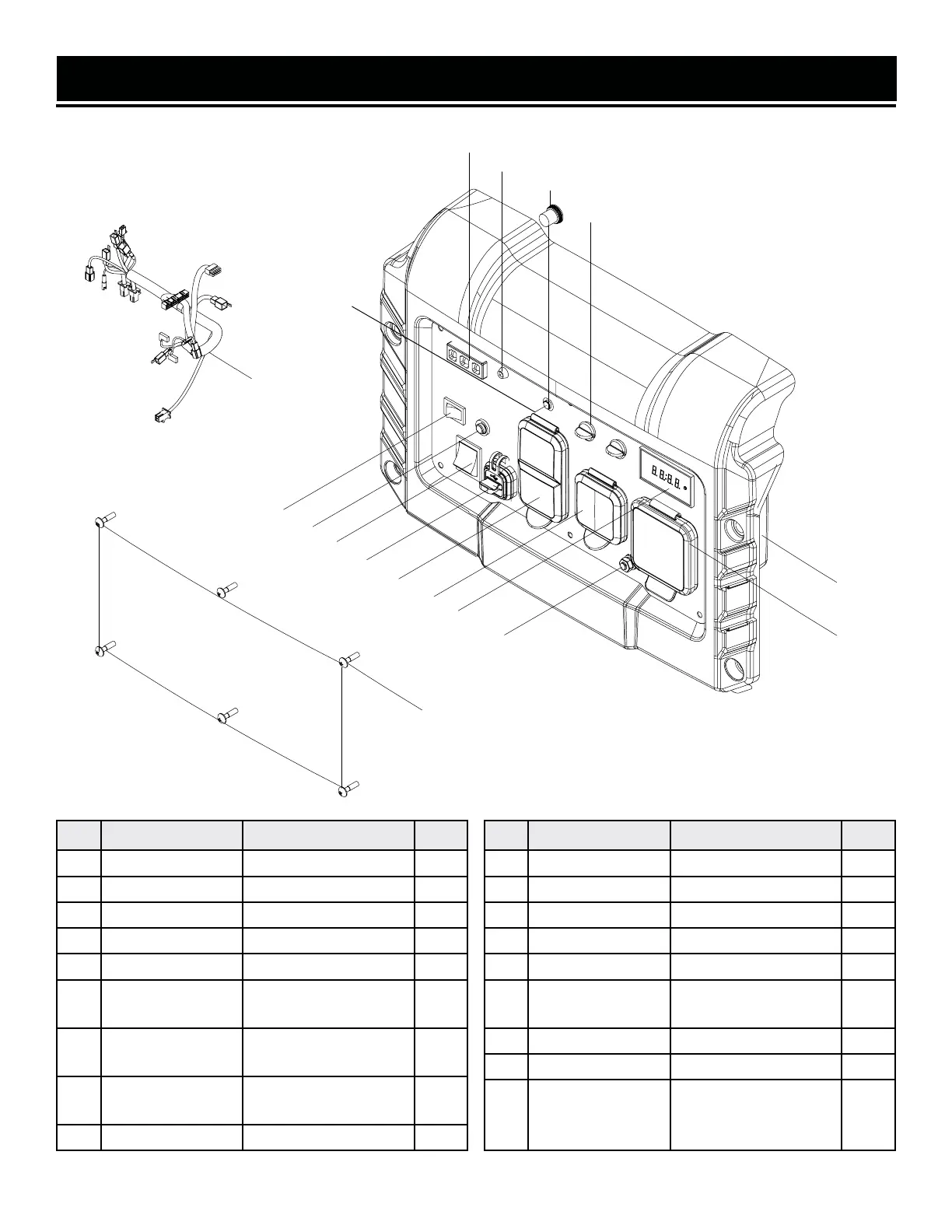

EXPLODED VIEW & PARTS LIST
PANEL
NO. PART NO. DESCRIPTION QTY.
1 DG4500iX-201 Data Meter 1
2 56203i-005.4 Eco-mode Switch 1
3 DF623X-301 Engine Start Switch 1
4 DG4500iX-204 CO Sensor LED 1
5 DG4500iX-205 USB 1
6 DG4500iX-206
NEMA L5-30R 120V
30A AC Outlet
1
7 DG4500iX-207
NEMA TT-30R 120V
30A AC Outlet
1
8 DG4500iX-208
NEMA 5-20R 120V
20A AC Duplex Outlet
1
9 DG4500iX-209 Ignitor 1
NO. PART NO. DESCRIPTION QTY.
10 56203i-005.5 Reset Button 1
11 56203i-005.14R Parallel Outlet (Red) 1
12 56203i-005.14B Parallel Outlet (Black) 1
13 DG4500iX-213 Waterproof Cap 1
14 56500-208 Breaker, AC 20A 1
15 DG4500iX-215
Control Panel Rear
Cover
1
16 DG4500iX-216 Bolt, M4x10 6
17 DG4500iX-217 Grounding lug 1
18 DG4500iX-218
Engine Stop
Microswitch and
Wiring Harness
1
48
