ASSEMBLY & ADJUSTMENTS
ASSEMBLING THE DRYWALL SANDER (CONT.)
5. Attach the optional handle extension (Fig. 5 - 1).
Rotate the locking nut (Fig. 5 - 2) counterclockwise to
loosen it. Insert the extension tube with the connection
adapter into the main drywall sander. Slide the extension
tube to the ideal length.
NOTE: The connection adapter cannot be below the max-
imum length indication line on the extension tube, oth-
erwise the handle extension will not be tightened. Rotate
the locking nut clockwise to lock the handle extension
in place. Check that the handle extension is securely at-
tached.
6. If you would like to use a dust collection device, insert
the hose connection port (Fig. 6 - 1) into the end of the
additional handle extension, or directly into the end of
the main drywall sander assembly if you choose not to
use the handle extension.
NOTE: A dust collection device is recommended to cut
down on mess and the potentially harmful particulates in
the air produced from sanding.
7. Connect one end of the dust hose to the end of the
hose connection port and the other to the dust extraction
device of your choice.
WARNING! To prevent injury from accidental operation, make sure the tool is switched OFF and unplugged
from the power source before assembling the tool or making any adjustments.

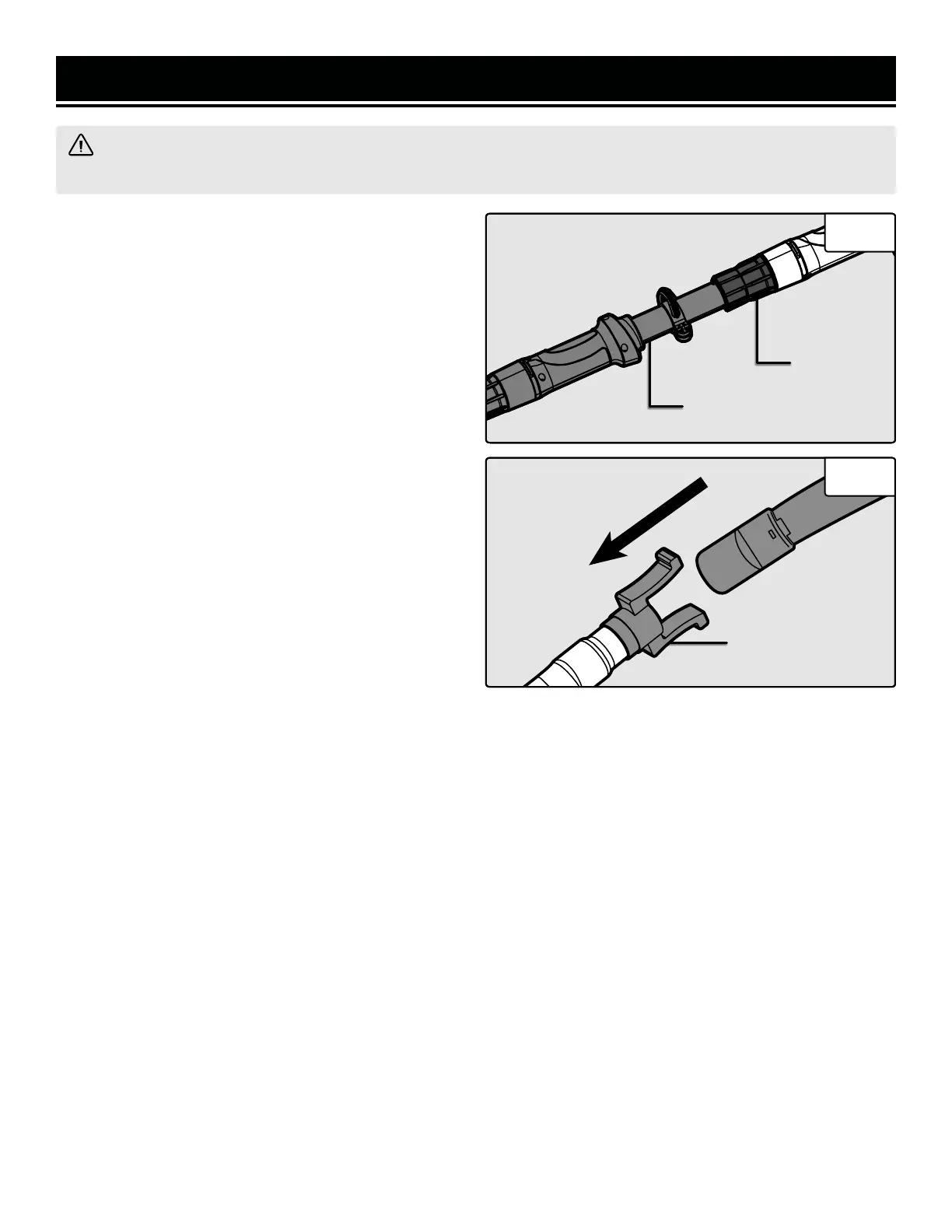

Fig. 5
2
1
Fig. 6
1
11
