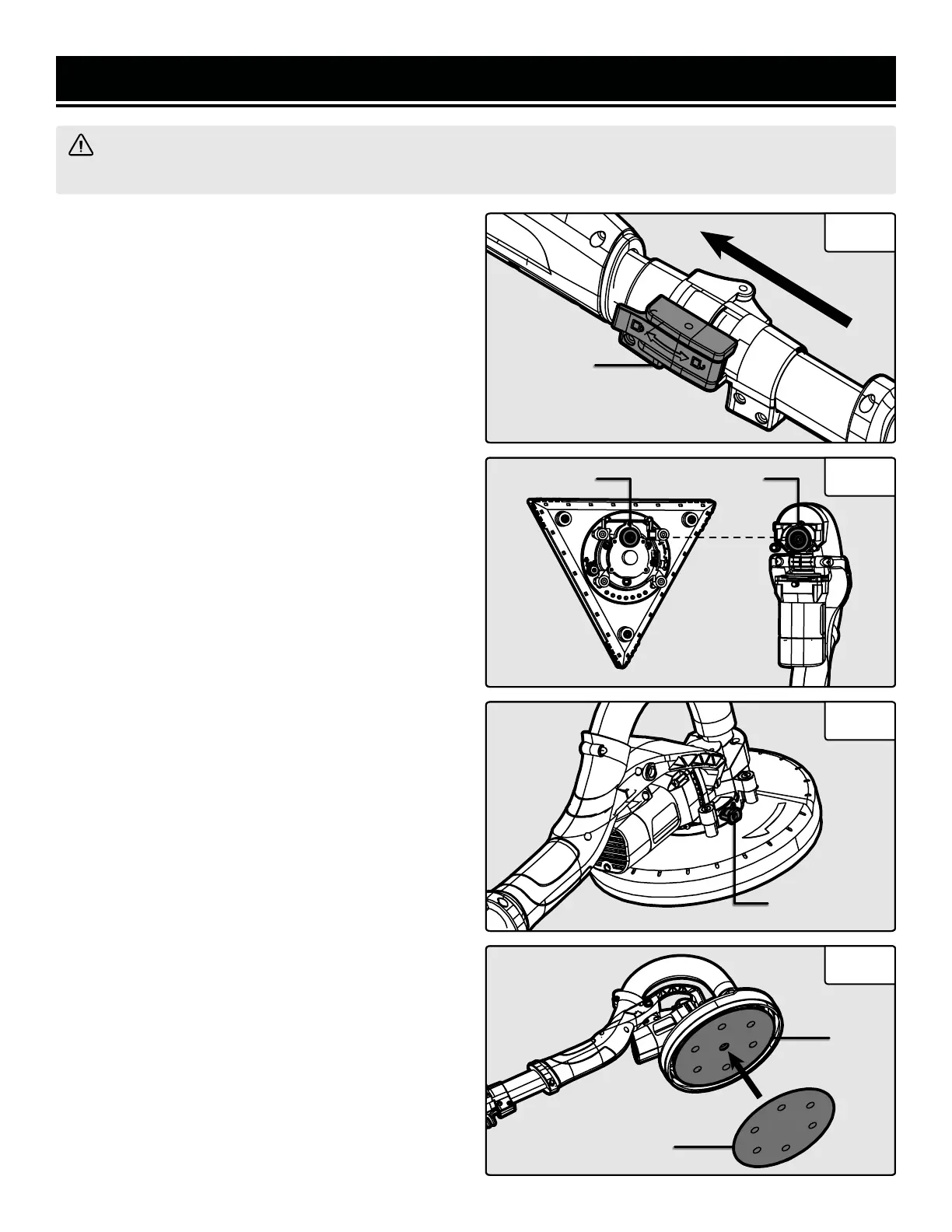

ASSEMBLY & ADJUSTMENTS
ASSEMBLING THE DRYWALL SANDER
1. Unfold the front and back of the drywall sander. Push
the locking clasp (Fig. 1 - 1) fully into the closed posi-
tion.
2. Attach the base pad. The shaft on the back of the base
pad (Fig. 2 - 1) needs to match the hole aligment of the
drywall sander head (Fig. 2 - 2) to be installed.
3. Adjust the angle of the base pad until it has been fit-
ted onto the drywall sander head. Press the base pad to
secure it onto the drywall sander.
4. Pull the knob (Fig. 3 - 1) on the side of the head and
slide it upward to secure the base pad in place. Check to
make sure the base pad is securely aligned and attached.
5. Attach the sanding disc (Fig. 4 - 1) of your choice
to the face of the hook and loop base pad (Fig. 4 - 2).
Ensure the holes are aligned on the bottom of the pad.
WARNING! To prevent injury from accidental operation, make sure the tool is switched OFF and unplugged
from the power source before assembling the tool or making any adjustments.
Fig. 1
1
Fig. 2
1 2
Fig. 3
1
Fig. 4
2
1
10
