Wen GN400iX

34

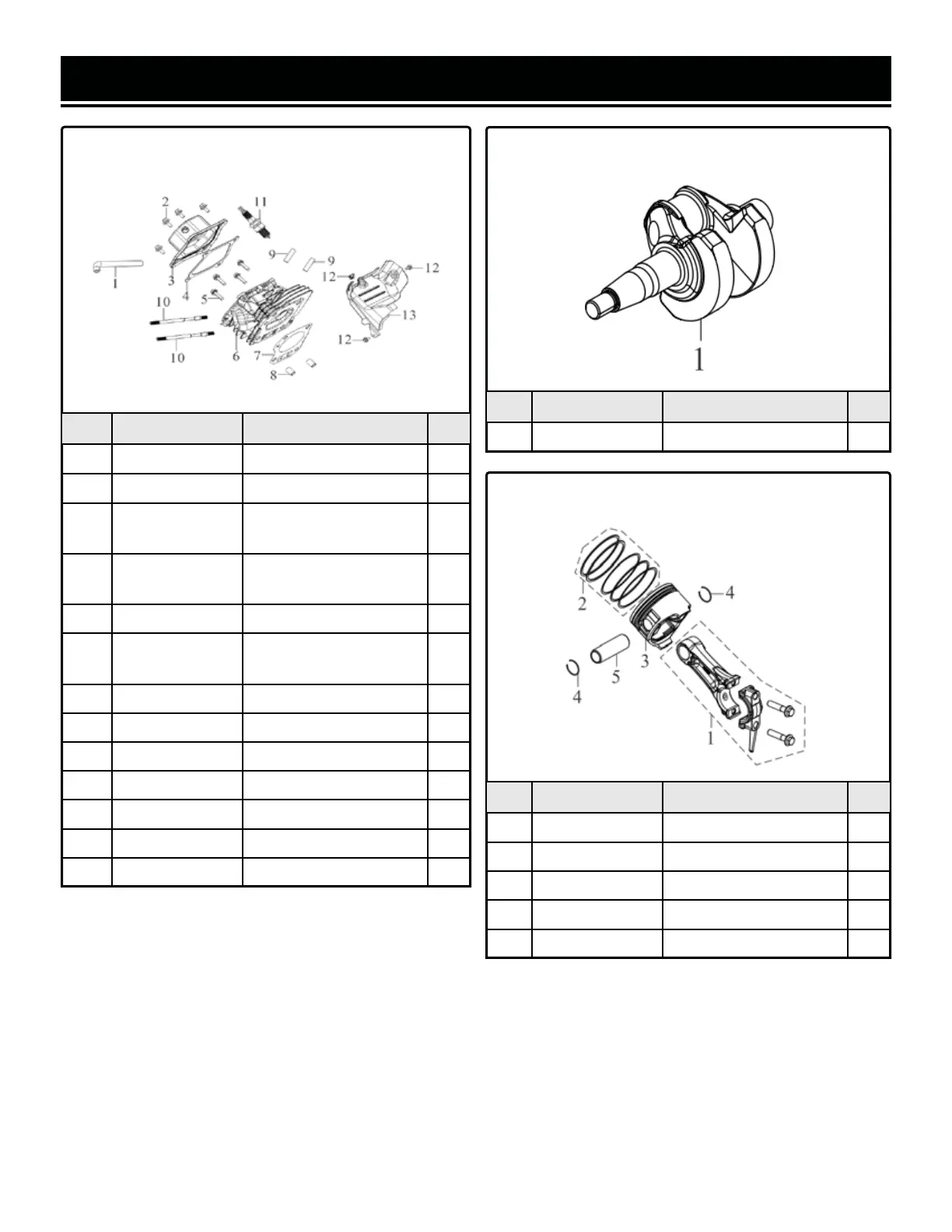

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
3-1 GN400i-0301 Breather Tube 1
3-2 56200-1202 Bolt 4
3-3 GN400i-0303
Cylinder Head Cover
Assembly
1
3-4 GN400i-0304
Cylinder Head Cover
Gasket
1
3-5 56310i-0106 Cylinder Head Bolt 4
3-6 GN400i-0306
Cylinder Head
Subassembly
1
3-7 GN400i-0307 Cylinder Head Gasket 1
3-8 56380i-0311 Positioning Pin 2
3-9 56310i-0109 Stud Bolt 2
3-10 56380i-0309 Stud Bolt 2
3-11 56310i-0104 Spark Plug 1
3-12 56200-0706 Bolt 3
3-13 GN400i-0313 Cylinder Body Shroud 1
ASSEMBLY 3 - CYLINDER HEAD
No. Part No. Description Qty.
4-1 GN400i-0401 Crankshaft Assembly 1
ASSEMBLY 4 - CRANKSHAFT
No. Part No. Description Qty.
5-1 GN400i-0501 Connecting Rod 1
5-2 56310i-0501 Piston Ring Assembly 1
5-3 GN400i-0503 Piston 1
5-4 56310i-0505 Piston Pin Clip 2
5-5 56310i-0504 Piston Pin 1
ASSEMBLY 5 - PISTON RING
