ASSEMBLY & ADJUSTMENTS
ASSEMBLY
Refer to the packing list on p. 9 to gather the proper parts
and tools for installing the feet, wheels, and handles.
NOTE: There are different sizes of bolts/nuts; be sure to use
the proper bolts/nuts for each assembly step.

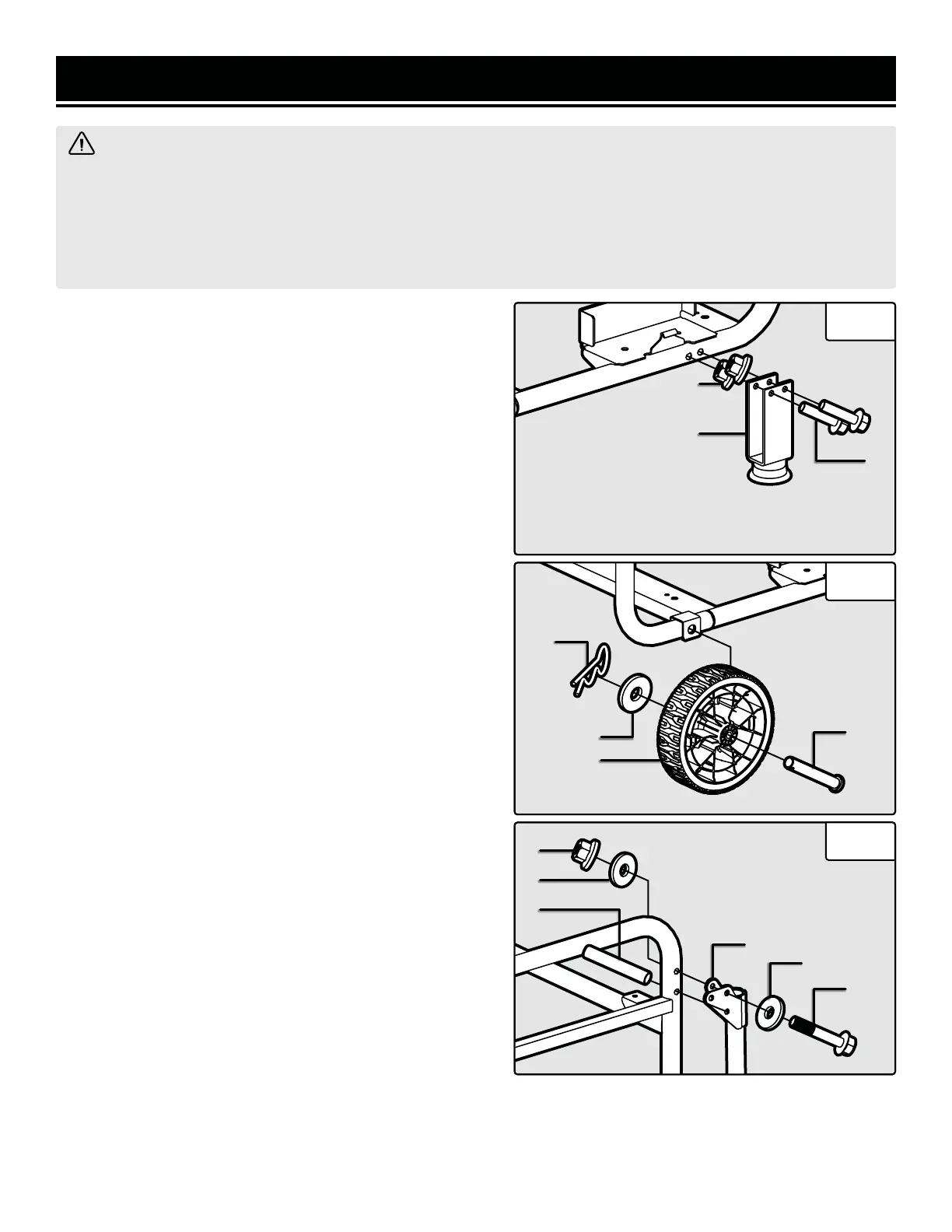

INSTALLING THE FOOT SUPPORTS (FIG. A)
The foot assemblies are installed on the base of the genera-
tor, towards the rear, opposite the control panel.
1. Prepare a set of blocks on level ground (a 4×4 block of
wood works well). Place the generator on the blocks. Have
someone help you lift the generator.
2. Align the holes on the foot bracket (Fig. A - 1) with the
holes on the generator frame. Slide two M6x40 hex bolts
(Fig. A - 2) through the foot bracket and generator frame and
secure them using two M6 hex bolts (Fig. A - 3). Tighten the
bolts using the included wrench. Repeat for the other foot
support.
INSTALLING THE WHEELS (FIG. B)
The wheels are installed on either side of the generator, to-
wards the front, beside the control panel.
1. Align the wheel (Fig. B - 1) with the hole on the genera-
tor frame. Slide the axle pin (Fig. B - 2) through the wheel,
washer (Fig. B - 3), and generator frame. Repeat for the
other wheel.
2. Insert the R-clip (Fig. B - 4) through the hole in the axle
pin and lock the wheel in place. Repeat for the other wheel.
INSTALLING THE HANDLES (FIG. C)
The handles are installed on the rear of the generator, op-
posite the control panel.
1. Slide a M8x48 hex bolt (Fig. C - 1) and an 8mm washer
(Fig. C - 2) through the upper holes on the handle (Fig. C - 3)
and the upper holes on the generator frame. Secure on the
other side with an 8mm washer and M8 hex nut (Fig. C - 4).
Repeat for the other handle.
2. Slide a pin (Fig. C - 5) through the lower hole on the han-
dle and the lower holes on the generator frame. Repeat for
the other handle.
WARNING! Do not turn on the generator until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
• Never use the handle as a lifting point to support the entire weight of the generator. Only use the handle
to pull the generator with the help of the wheels.
• Use caution when collapsing the handle. Hands and fingers could get caught and pinched.
Fig. A
Fig. B
1
2
3
4
1
2
3
4
2
5
Fig. C
