KNOW YOUR GENERATOR

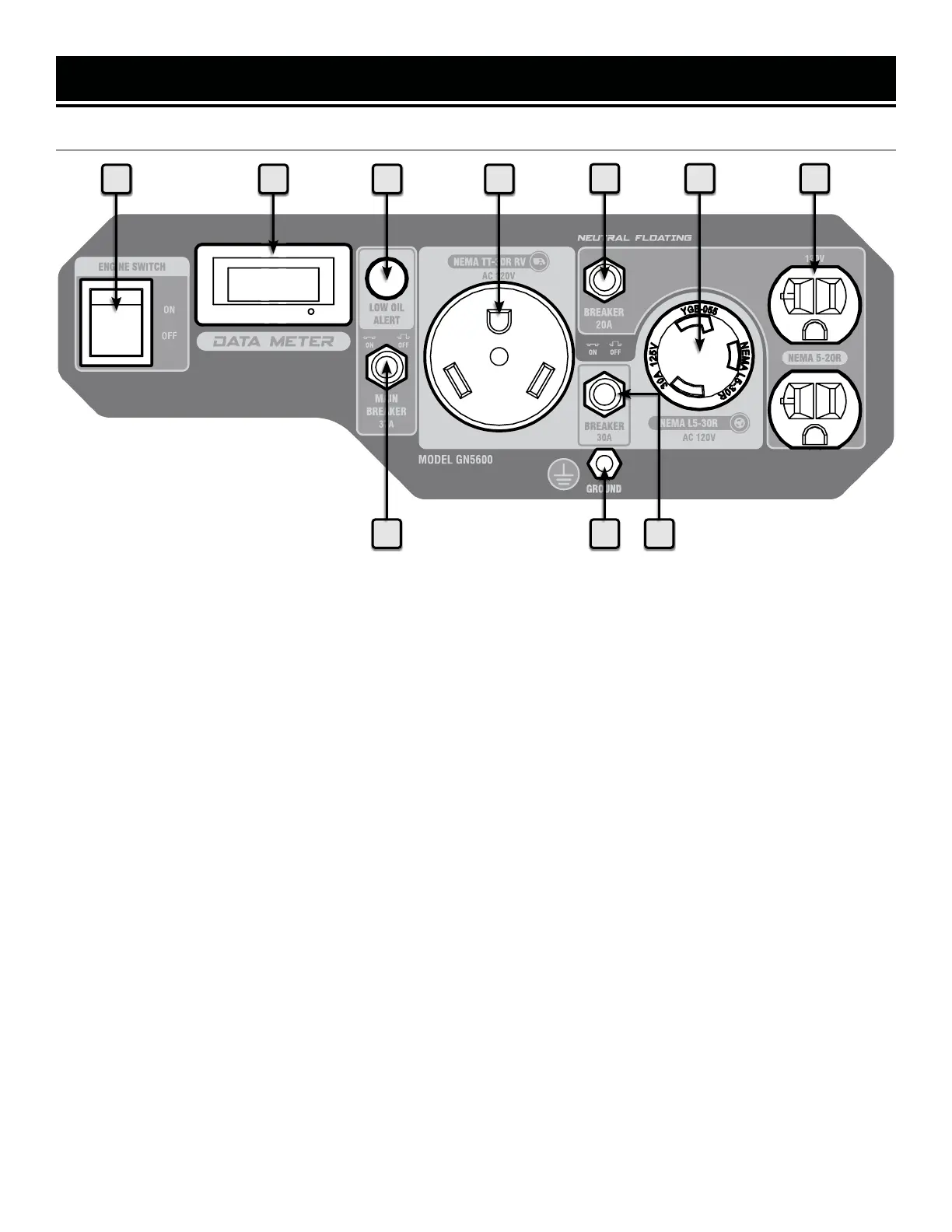

CONTROL PANEL
1 4
1. Engine Switch
Start the engine using this switch.
2. Data Meter
Displays voltage, frequency, total runtime (HHHH), and
session runtime (HH:MM). Press the MODE button to
switch between displays.
3. Low Oil Alert
Illuminates if the oil level is too low.
4. AC 120V NEMA TT-30R RV Receptacle (30A)
Standard RV connector.
11
2 3
5
5. Circuit Breaker (20A)
6. AC 120V NEMA L5-30R Receptacle (30A)
Multipurpose outlet.
7. AC 120V NEMA 5-20R Duplex Receptacles (20A)
Standard household outlets provide 120V 60Hz power.
8. Circuit Breaker (30A)
9. Grounding Nut
Ground generator to reduce risk of electric shock.
10. Main Breaker (37A)
910
6 7
8
