AC BREAKERAC BREAKER
11

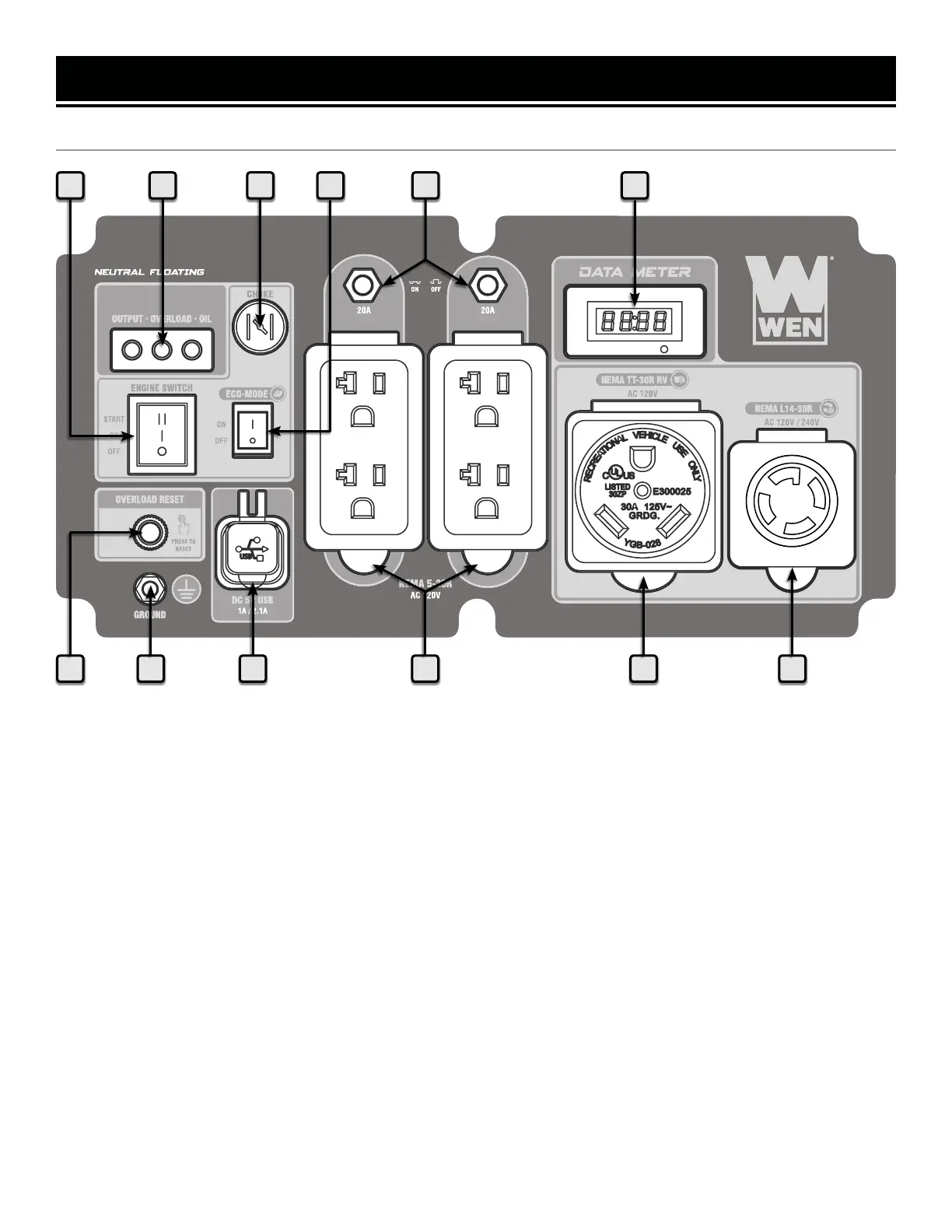

KNOW YOUR GENERATOR
CONTROL PANEL
1 2 4 5 6
7891112
1. Engine Switch
Start and stop engine. Refer to p. 18 for more details.
2. Indicator Lights
The output light (green) will turn on when the recep-
tacles have power, the overload light (red) will turn on
if the generator is overloaded, the oil light (yellow) will
turn on if the oil is low.
3. Choke Button
Adjusts amount of air allowed into engine during startup.
4. Eco-Mode Switch
Flip this switch to ON to increase fuel economy and run-
time when the load is below 5250W (75% load).
5. Circuit Breaker
Push the button to reset the circuit.
6. Data Meter
Displays voltage, frequency, total runtime (HHHH),
and session runtime (HH:MM). Press the MODE but-
ton to switch between displays.
7. NEMA L14-30R
AC 120V/240V split-phase.
8. AC 120V NEMA TT-30R
Standard RV connector.
9. AC 120V NEMA 5-20R Duplex Receptacles (20A)
Standard household outlets.
10. DC 5V USB Ports
The upper USB port provides 2.1A, while the lower
port provides 1A of power.
11. Grounding Nut
12. Overload Reset Button
If the overload light is ON, press this button to reset.
3
10
