Wen GN875i

42
No. Part No. Description Qty.
15-1 GN625i-1601
Handle Tube
Assembly
1
15-2 GN625i-1602 Handle Sleeve 1
15-3 GN625i-1603 R-clip 1
15-4 GN625i-1604 Bolt, M6x30 4
15-5 GN625i-1605 Handle Bracket 1
15-6 GN625i-1606 Handle Pin 1
15-7 GN625i-1607 Handle Damper 1
15-8 GN625i-1608 Nut, M8 2
15-9 GN625i-1609 Nut, M12-1.25 2
ASSEMBLY 15 - WHEEL AND HANDLE
ACCESSORIES (NOT PICTURED)
No. Part No. Description Qty.
N.P. GN875i-HA36
High-Altitude Kit,
3000 - 6000 ft
1
N.P. GN875i-HA68
High-Altitude Kit,
6000 - 8000 ft
1

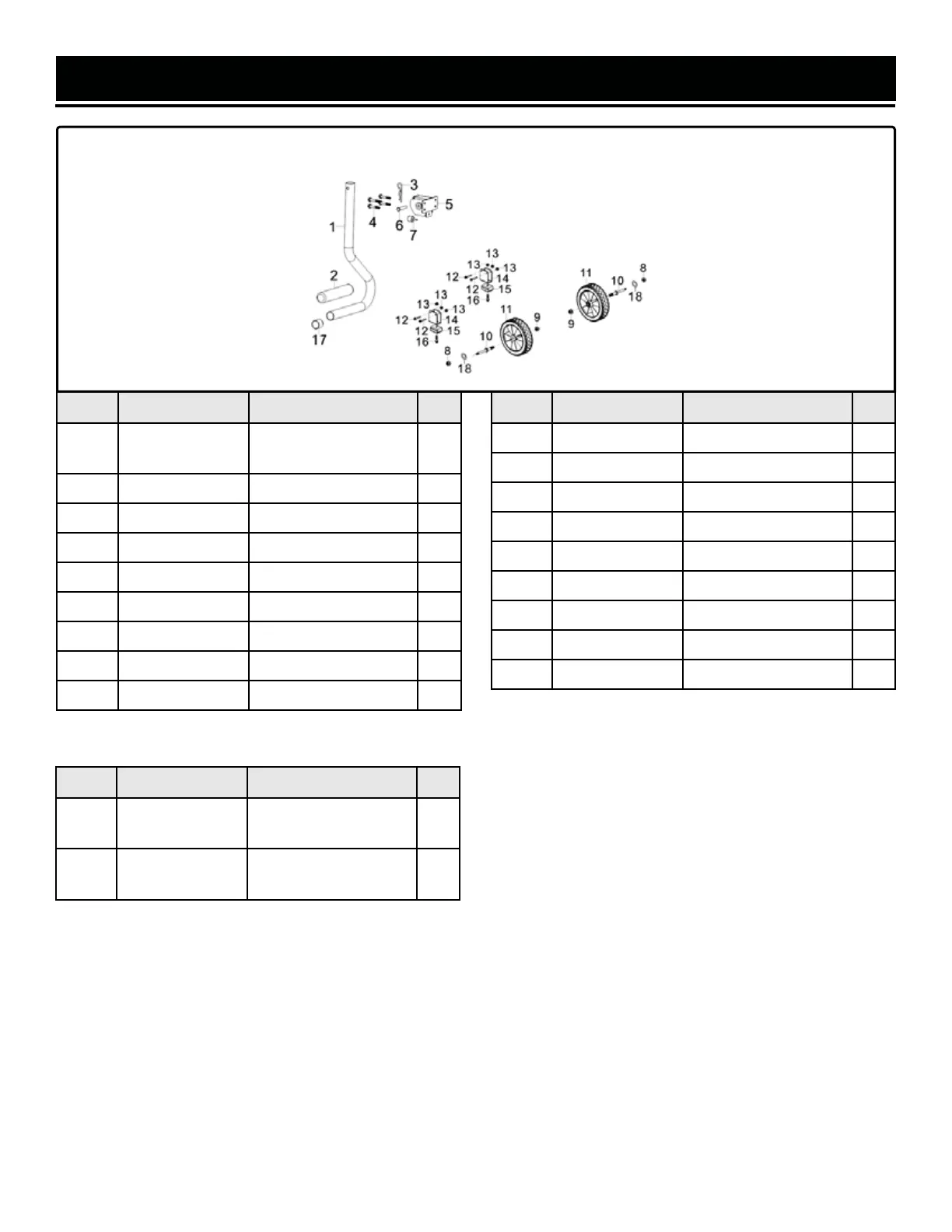

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
15-10 GN625i-1610 Axle 2
15-11 GN625i-1611 Wheel 2
15-12 GN625i-1612 Bolt, M6x40 4
15-13 56200-0506 Nut, M6 6
15-14 GN625i-1614 Foot Bracket 2
15-15 GN625i-1615 Foot Base 2
15-16 56310I-1420 Bolt, M6x25 2
15-17 GN625i-1617 Handle Tube Plug 1
15-18 GN625i-1618 Flat Washer, 8mm 2
