4. Lower the end ap.
5� Unlock, open, and secure the rear end panel in the
same way�
Note: Later in this setup procedure, the end panels
can be secured at an intermediate position
(if desired)� See "Positioning the End Panels"�
14
End Panel
Stud
End Flap
Never raise or lower the roof/canopy
if the end panels are closed.
!
CAUTION

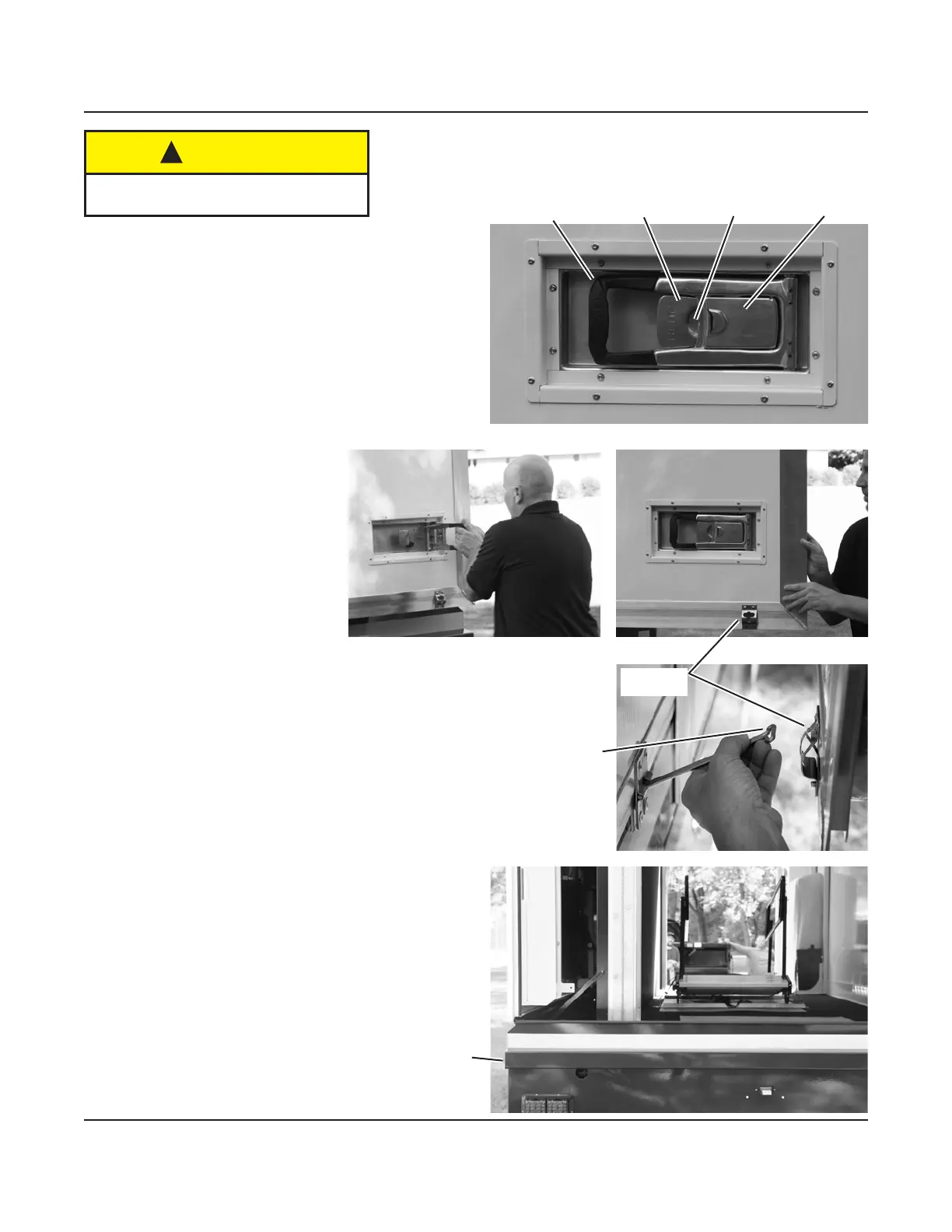

Opening the End Panels
1� Unlock the front end panel� There is a key lock in
the handle assembly, and also a hole for an
optional padlock� When not in use, store the
padlock in the control compartment�
2� Press the release button,
and use the handle to open
the end panel�
3� Swing the front end panel open until it is against the back wall,
and latch it onto the stud on the curb side of the Showmobile�
This keeps the end panel out of the way while you lower the
hydraulic stage, raise the roof/canopy, and install any auxiliary
equipment�
End Panel
Handle
Handle
Release
Button
Attach
Padlock
Location
Key Lock
Access
End Panel
Latch
