18
To avoid serious injury, use star and
gravity connectors as illustrated.
!
DANGER

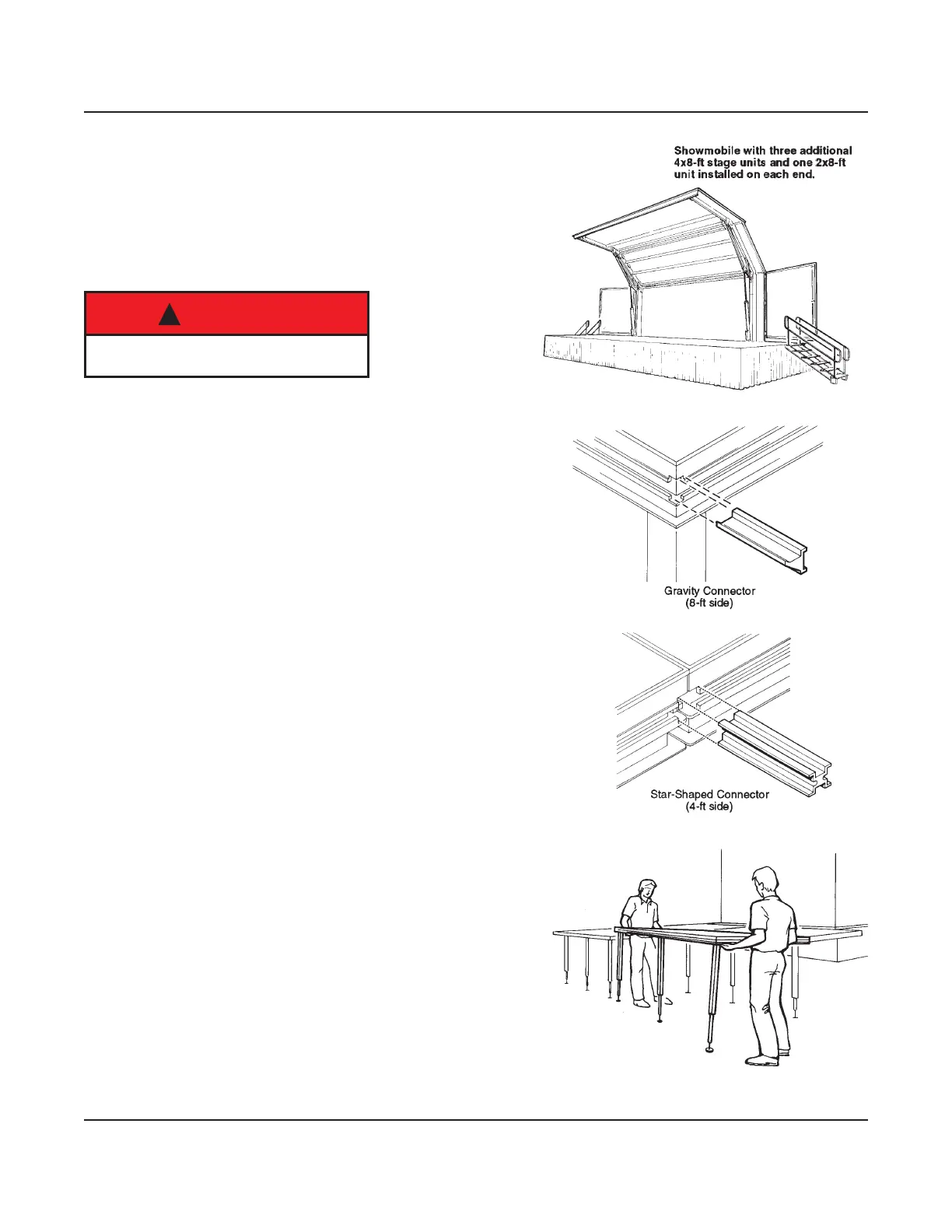

Attaching Additional Stage Units
Additional 4' x 8' stage units are optional equipment with the
Showmobile� They can be attached to the road side of the
stage or to the ends, to increase the stage size�
There are also four special 2' x 8' stage units which attach
to the ends of the main stage, to extend it to 32" to match
additional stage setups�
These additional units attach easily to the edge of the stage or
to each other, to provide a rigid continuous surface�
To install the additional stage units:
Note: Two types of connectors are used between the
Showmobile stage and additional stage units, or
between two additional units�
Generally:
• Gravity connectors are used on the 8' sides of the
units�
• Star-shaped connectors on the 4' sides, and around
the perimeter of the stage�
If a stage is set up independently (not attached to the
Showmobile stage), use only star-shaped connectors�
Refer to the for additional clarication.
1� Insert three gravity connectors into the extrusion on the
edge of the Showmobile where the 8' side of the rst
stage unit will be attached� Position the connectors so
that one will be centered on the 8' side of the additional
unit, and the others will be about 6" from each end�
2� Plug three legs into the sockets along one of the 8' sides
of the additional stage unit�
3� Lift and tilt the stage unit until it rests on the connectors�
4� Lower the stage unit� If properly installed, its top surface
should be level with the Showmobile stage surface and it
should be rmly held by the connectors.
5� Level the stage unit to match the Showmobile stage by
adjusting the three legs:
a� If necessary, pull the leg pin and slide the leg
extension in or out until it snaps into the proper hole�
b. Screw the leveling foot in or out to make ner
adjustments�
6� Install the remaining stage units in the same way�
For stability, a star-shaped connector must be used in all
locations as shown�
