9
Towing
Vehicle
Showmobile
Curb Side
Road Side
Front
End
Rear
End
12-volt
Electrical
Supply Cord
Breakaway
Cable
Hitch Jack
Crank
To avoid personal injury, use only
authorized and trained personnel.
!
WARNING
Selecting a Location
Important: Read all of the Safety Precautions before beginning�
Select a rm level area on which to place the Showmobile for use. Face the road side toward the center of the
audience location�
Check for any possible obstructions (trees, power or light poles, overhanging wires, etc�) which might be in the
way of the roof/canopy when raised�
Be sure to park where there is access to a 110-volt electrical supply to operate the battery charger, for opening
and closing the roof/canopy and hydraulic stage�

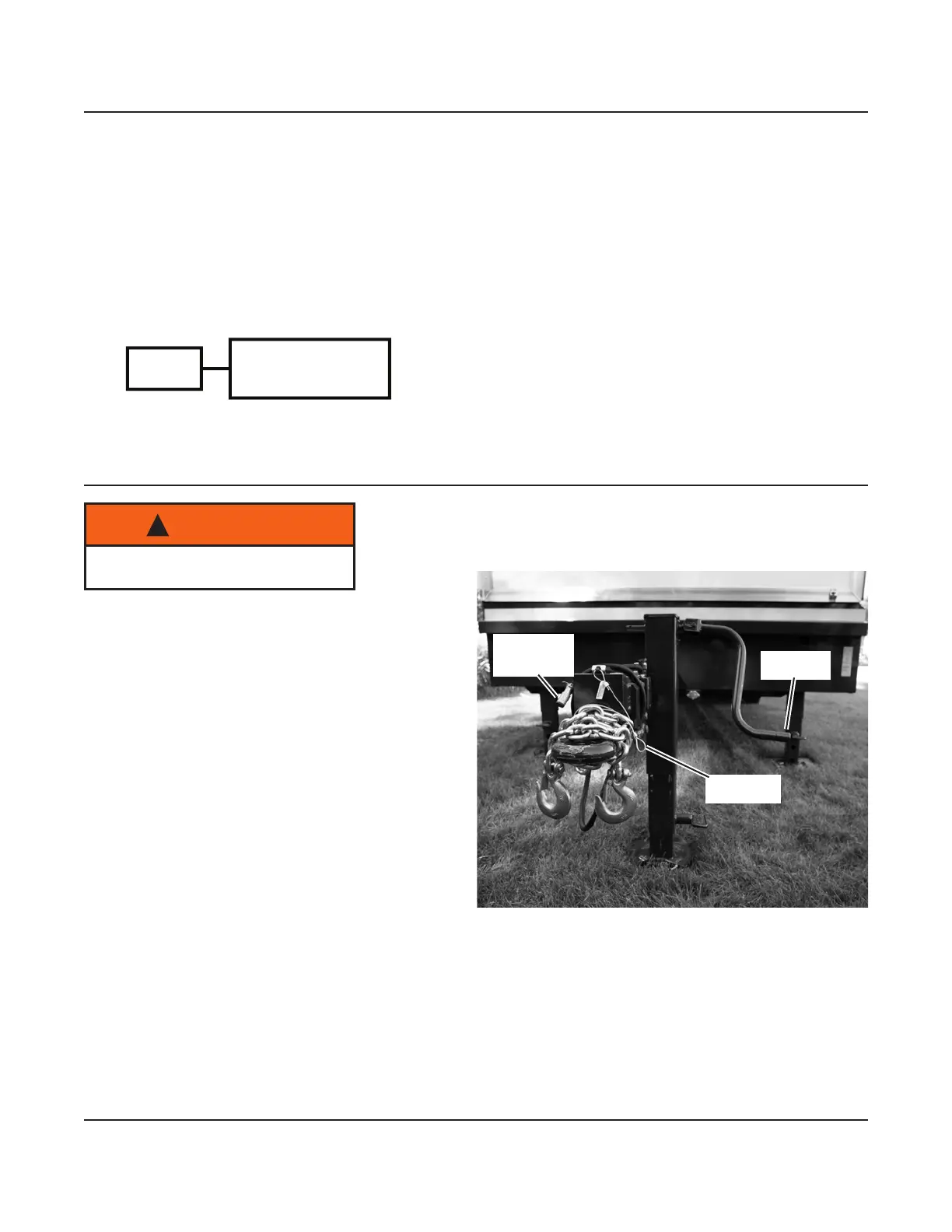

In the following procedures, the sides and ends of the Showmobile are identied as indicated below.
Disconnecting the Towing Vehicle
1� Block the Showmobile's wheels with chocks�
2� Free the safety chain�
3� Disconnect the 12-volt electrical supply cord
which connects the brake and running lights to
the towing vehicle�
4� Disconnect the breakaway cable from the towing
vehicle's hitch�
Important: Disconnect the breakaway cable from
the towing vehicle, rather than pulling the
pin out of the switch on the Showmobile�
If the pin is pulled from the switch, the
Showmobile brakes are activated and will
drain the battery within two hours�
5� Pull out the release and lower the foot plate�
6� Use the crank of the hitch jack to raise the
Showmobile coupler o the towing vehicle hitch.
7� Move the towing vehicle away�
To Next Page
