22
Optional Theatrical Lighting Packages (continued)
Deploying/Storing the Lighting Package
For faster take down and setup, leave the xtures attached to the Showmobile and follow the instructional
decal for folding/unfolding the system� The canopy may need to be raised and lowered slightly while deploying/
storing the xtures so they clear the deck.
When storing the xtures always make sure to tighten all the adjustment points on the xtures so that they do
not come loose in transit�
When lowering the canopy to its fully closed position, double check the hydraulic stage deck is all the way up
and watch the xtures checking that they do not collide with the underside of the deck.
Avoid pinching cables when
deploying or storing lights.
To avoid injury or damage,
lower the fixture batten with
the help of another person.
When storing fixtures,
verify that all adjustment
points are tightened.
Wenger Corporation
1-800-4WENGER (493-6437)
wengercorp.com

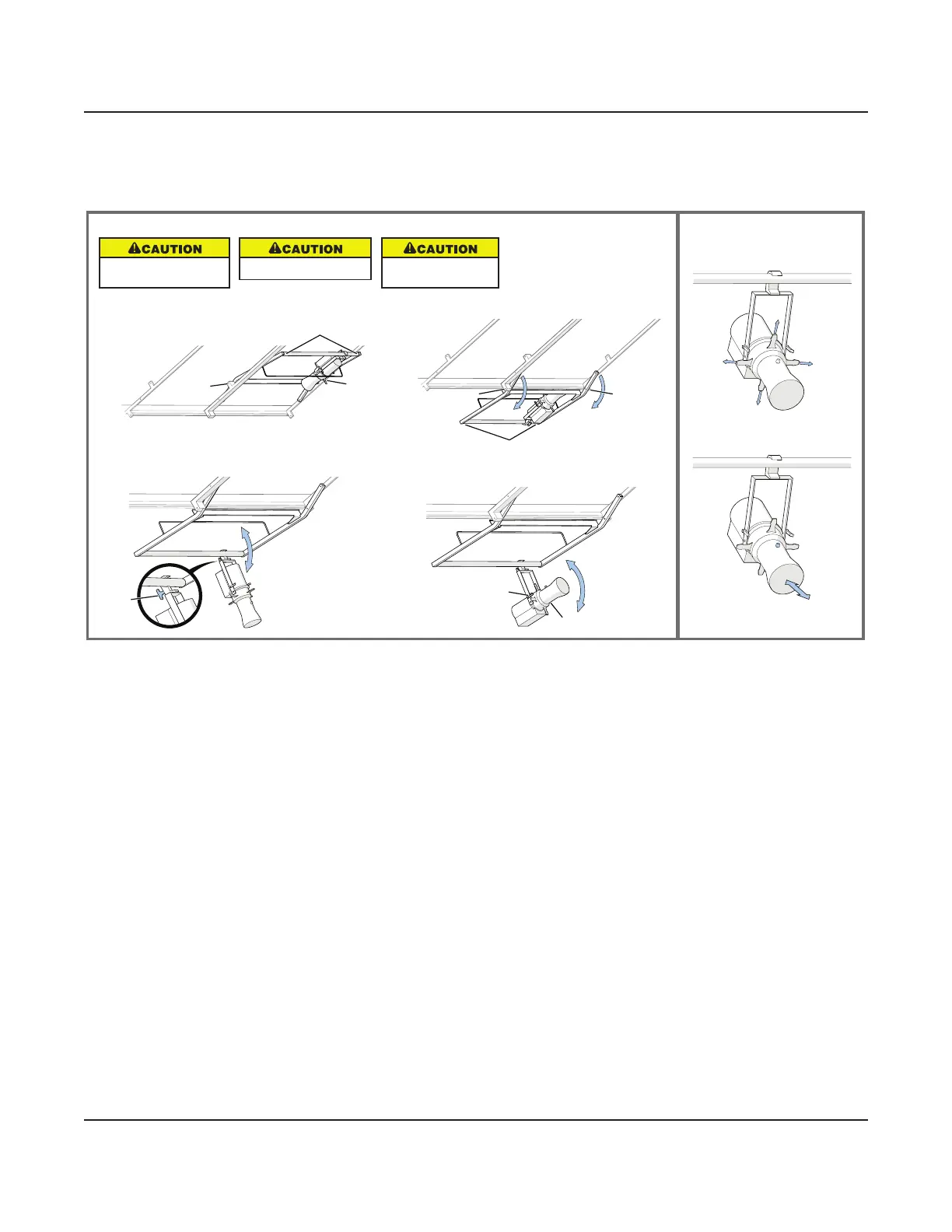

Light OperationTo deploy light, follow steps 1-4. To store light, reverse steps 1-4.
With one person on each side, push up on the
fixture batten and remove the pins�
Rotate the fixture batten down 180° and replace
the pins�
Loosen the knob at the back of the fixture clamp
to rotate the fixture bracket, then retighten�
Loosen the tilt locks on both sides and adjust the
light fixture to the desired angle, then tighten�
Remove
Pin
Remove
Pin
Push Up
Replace
Pin
Replace
Pin
Push Up
Loosen
Knob
Tilt Lock
Tilt Lock
1 2
3
4
A
B
Loosen the knob to focus
the light output�
When storing fixture, the lense
must be in as far as possible.
Pull the framing shutters
outward to allow light output�
To Next Page
