Wersi CD 600 - EM 1 (External Memory)

AM 320-01-808
72
5. EM 1 (External Memory)
This board is the interface to the external memory card.
The data bus driver (IC 1, HC245) feeds through the data
of the Mem.Card to the master data bus as soon as access to
them is required.

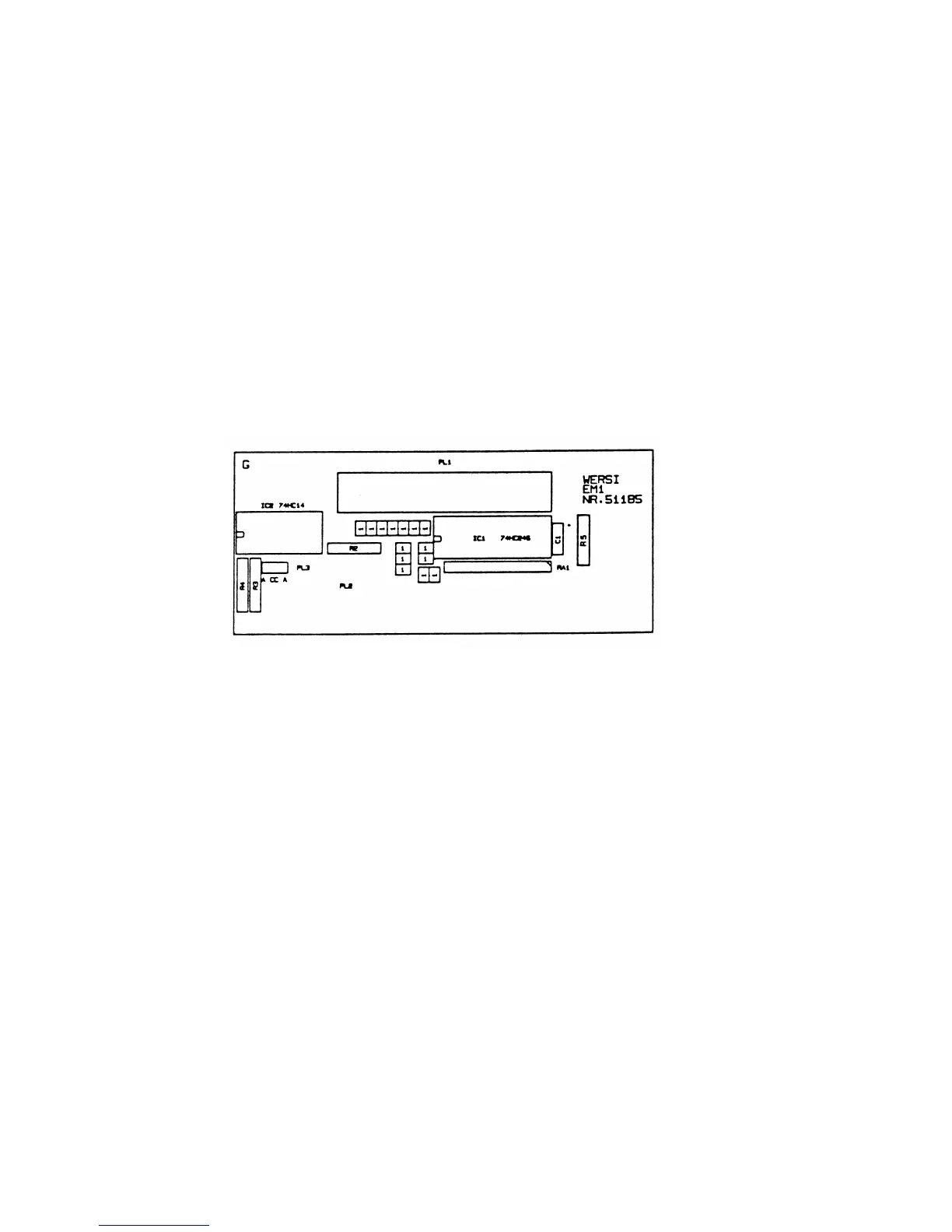

EM 1, Component layout
