AM 320-01-808
9

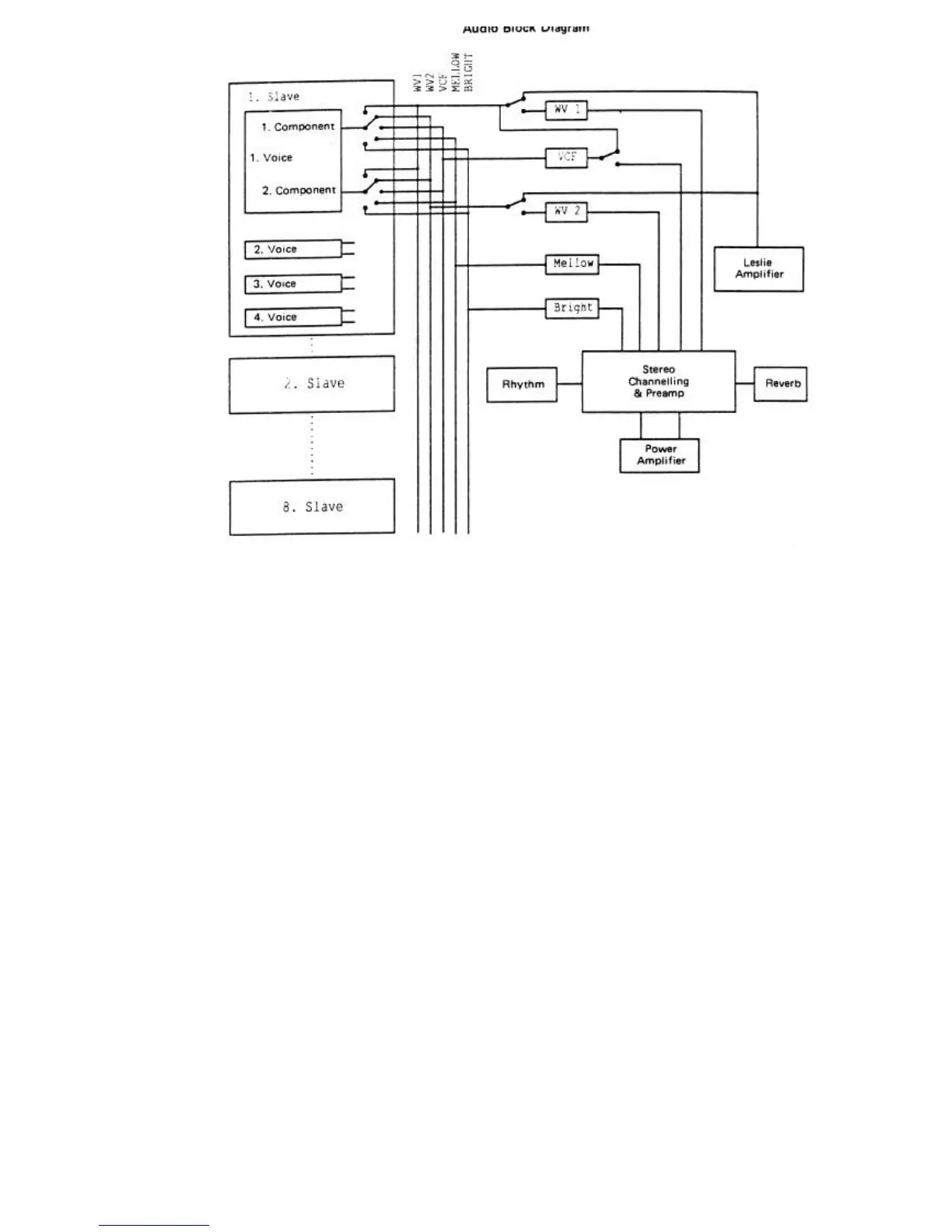

3. Audio Block Diagram
The audio signals from the slaves are routed to one
of five audio channels where they are refined
and processed differently:
a)the Bright slave signal reaches the amplifier with-
out any modification.
b) the Mellow slave signal is routed to the
amplifier via a low-pass filter.
c) the WV1 slave signal is assigned to Wersivoice
1.
d) the WV2 slave signal is assigned to
Wersivoice 2.
e)VCF - further processing of the signal for VCF
effects.
The effect channels WV1, WV2 and VCF can be
individually assigned to the left or right audio
channel; the mellow/bright channels, however, are
permanently routed to Left or Right.
